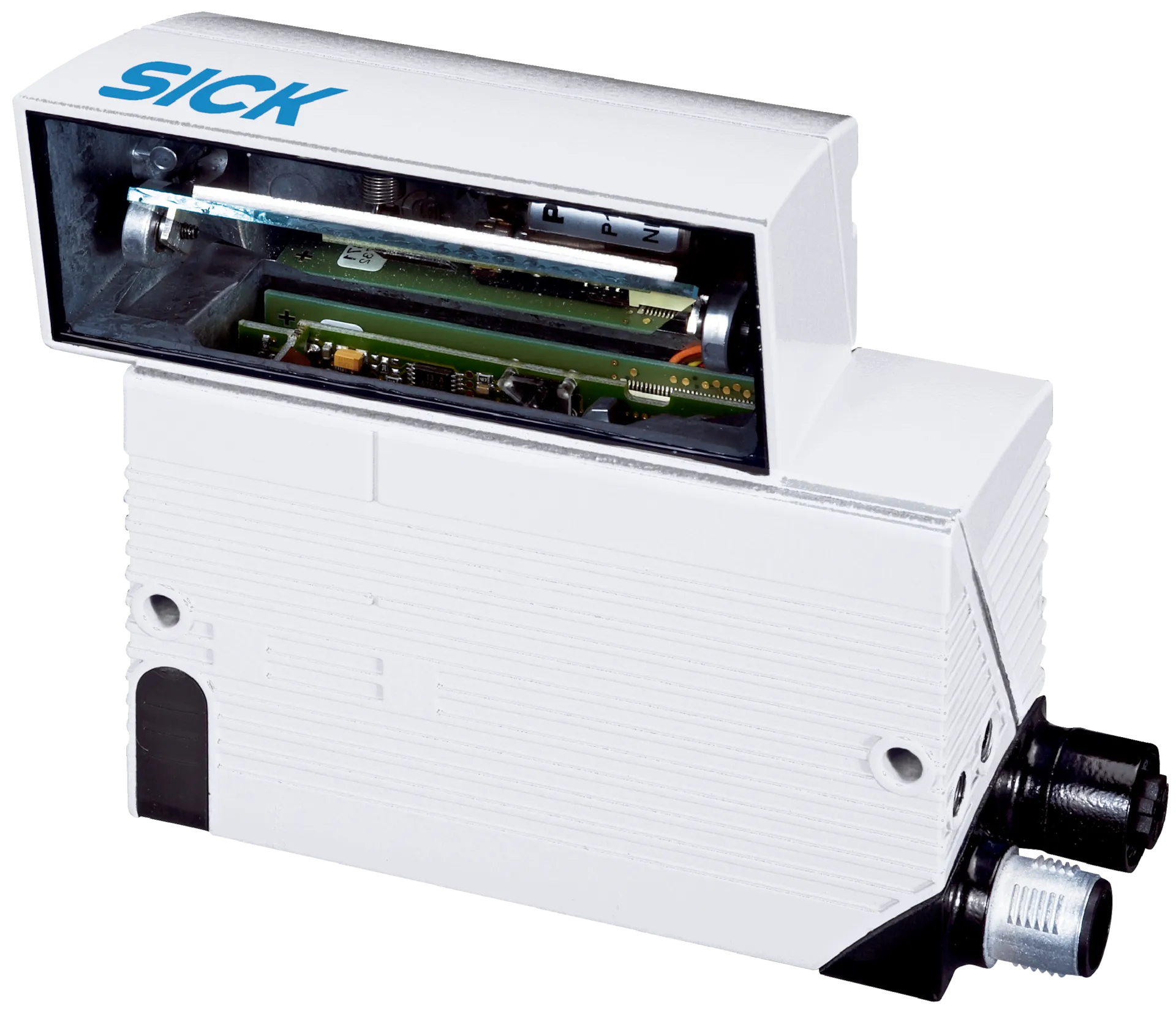

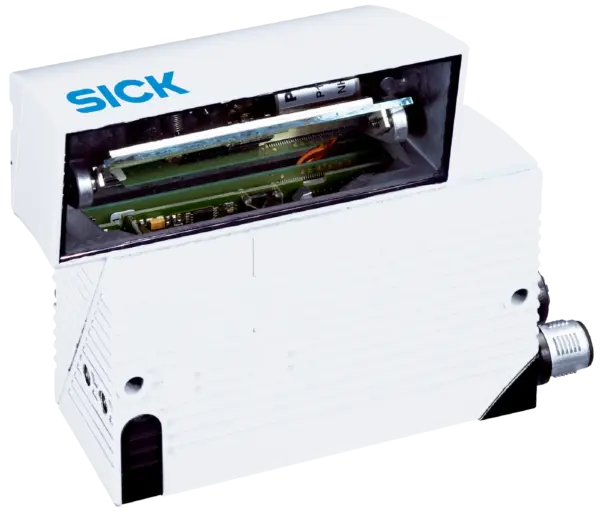

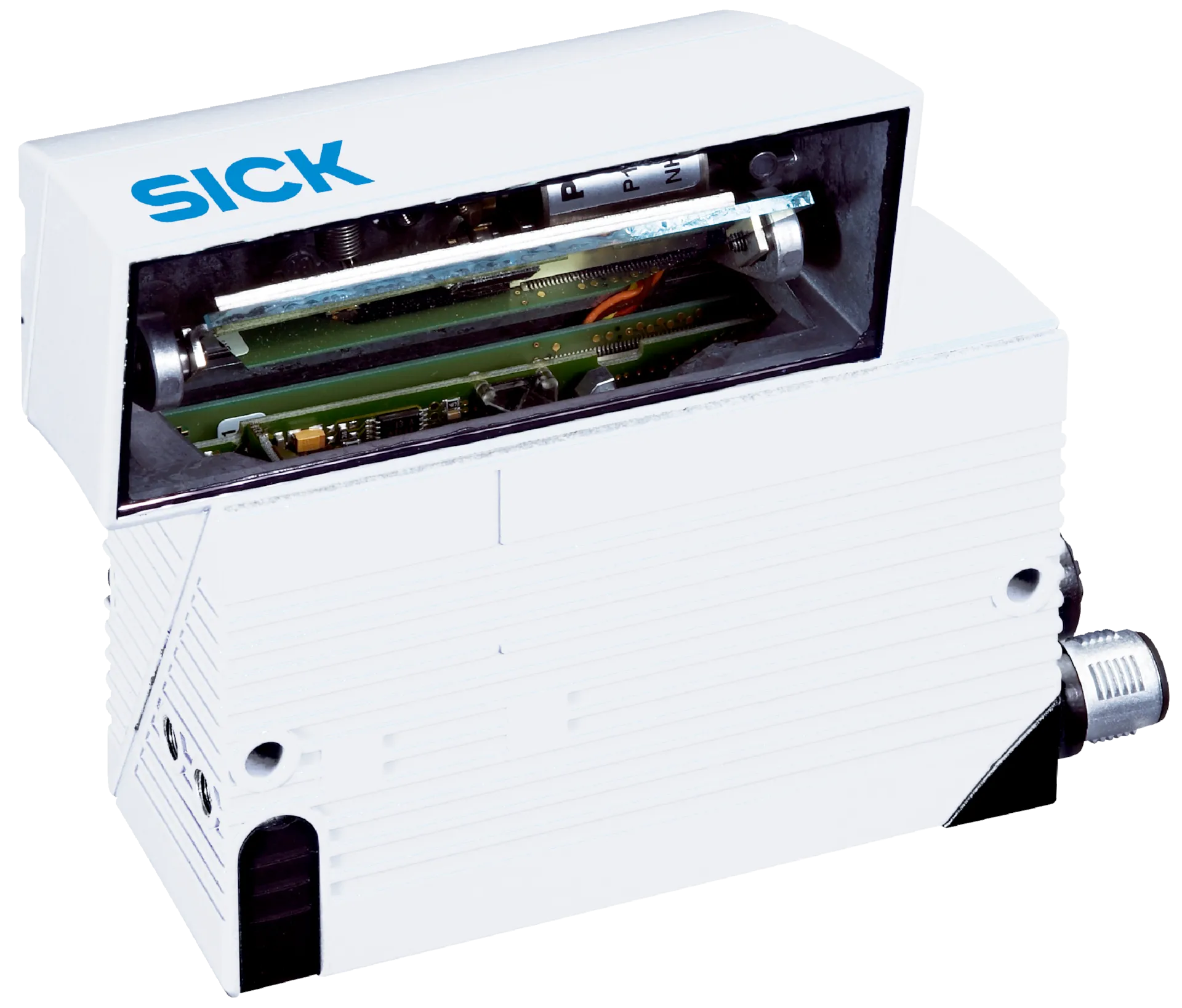

Sick CLV651-6120S52
Fixed mount barcode scanners | CLV65x | CLV651-6120S52 | Optical focus: Auto focus | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Rot…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fixed mount barcode scanners | CLV65x | CLV651-6120S52 | Optical focus: Auto focus | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Rotary angle variant single port (12-pin) | Max. reading distance: 880 mm | Code resolution: 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Oscillating mirror | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
Specification
Features
| Version | Low Density |
|---|---|
| Connection type | Ethernet |
| Reading field | Oscillating mirror |
| Sensor type | Oscillating mirror |
| Optical focus | Auto focus |
| Light source | Light spot, laser, Visible, Red, 658Ă‚ nm |
| Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) |
| Aperture angle | ≤ 50° |
| Reading distance | 155 mm ... 880 mm 1) |
| Scanning frequency | 600 Hz ... 1,000 Hz |
| Code resolution | 0.5Ă‚ mm |
| Oscillating mirror functions | Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot |
| Oscillation frequency | 0.5 Hz ... 6.25 Hz |
| Angle of deflection | –20° ... 20° |
Mechanics/electronics
| Connection type | 2Ă‚ x M12 cylindrical connectors (12-pin male connector, 4-pin female connector) on swivel connector |
|---|---|
| Supply voltage | 18Ă‚ VĂ‚ DCĂ‚ ... 30Ă‚ VĂ‚ DC |
| Power consumption | 9.5Ă‚ W |
| Housing material | Aluminum die cast |
| Housing color | White (RAL 9016) |
| Window material | Glass |
| Enclosure rating | IP65 (ENĂ‚ 60529) |
| Protection class | III (ENĂ‚ 61140) |
| Weight | 250Ă‚ g, without connecting cable |
| Dimensions (L x W x H) | 95 mm x 107 mm x 41 mm 1) |
| MTBF | 100,000Ă‚ h |
| MTTF | 40,000Ă‚ h (Laser diode)Ă‚ 2) |
Performance
| Readable code structures | 1D codes |
|---|---|
| Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey |
| Code printing process | Label (printed codes) |
| Print ratio | 2:1Ă‚ ... 3:1 |
| No. of codes per scan | 1Ă‚ ... 20Ă‚ (Standard decoder)1Ă‚ ... 6Ă‚ (SMART decoder) |
| No. of codes per reading interval | 1Ă‚ ... 50Ă‚ (auto-discriminating) |
| No. of characters per reading interval | 5,000500Ă‚ (for multiplexer function in CAN operation) |
| No. of multiple readings | 1Ă‚ ... 99 |
Interfaces
| Ethernet | ✔ , TCP/IP |
|---|---|
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 10/100Ă‚ MBit/s |
| PROFINET | ✔ |
| Function | PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2) |
| Data transmission rate | 10/100Ă‚ MBit/s |
| EtherNet/IP™ | ✔ |
| Data transmission rate | 10/100Ă‚ MBit/s |
| EtherCAT® | ✔ |
| Type of fieldbus integration | Optional over external fieldbus module CDF600 |
| Serial | ✔ , RS-232, RS-422, RS-485 |
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232) |
| CAN | ✔ |
| Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| Data transmission rate | 20 kbit/s ... 1 Mbit/s |
| CANopen | ✔ |
| Data transmission rate | 20 kbit/s ... 1 Mbit/s |
| PROFIBUS DP | ✔ |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Digital inputs | 3 (“Sensor 1”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420) |
| Digital outputs | 2Ă‚ (Via optional CMC600 parameter memory in CDB620/CDM420) |
| Reading pulse | Digital inputs, non-powered, serial interface, auto pulse, CAN |
| Optical indicators | 6Ă‚ LEDs (Ready, Result, laser, Data, CAN, LNK TX, Bar graph for displaying the reading rate percentage (10Ă‚ LEDs)) |
| Acoustic indicators | Beeper/buzzer (can be switched off, can be allocated as a result indication function) |
| Control elements | 2Ă‚ buttons (choose and start/stop functions) |
| Configuration software | SOPAS ET |
| Memory card | MicroSD memory card (flash card), optional |
Ambient data
| Electromagnetic compatibility (EMC) | ENĂ‚ 61000-6-3 (2001-10)Ă‚ / ENĂ‚ 61000-6-2:2005 |
|---|---|
| Vibration resistance | ENĂ‚ 60068-2-6 (1995) |
| Shock resistance | ENĂ‚ 60068-2-27 (1993) |
| Ambient operating temperature | 0 °C ... +40 °C |
| Storage temperature | –20 °C ... +70 °C |
| Permissible relative humidity | 90Ă‚ %, Non-condensing |
| Ambient light immunity | 2,000Ă‚ lx, on barcode |
| Bar code print contrast (PCS) | ≥ 60 % |
Classifications
| ECLASS 5.0 | 27280102 |
|---|---|
| ECLASS 5.1.4 | 27280102 |
| ECLASS 6.0 | 27280102 |
| ECLASS 6.2 | 27280102 |
| ECLASS 7.0 | 27280102 |
| ECLASS 8.0 | 27280102 |
| ECLASS 8.1 | 27280102 |
| ECLASS 9.0 | 27280102 |
| ECLASS 10.0 | 27280102 |
| ECLASS 11.0 | 27280102 |
| ECLASS 12.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Ethercat certificate | ✔ |
| Profinet certificate | ✔ |
| BIS registration | ✔ |
| Laser safety (IEC 60825-1) declaration of manufacturer | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
| 4Dpro | ✔ |
