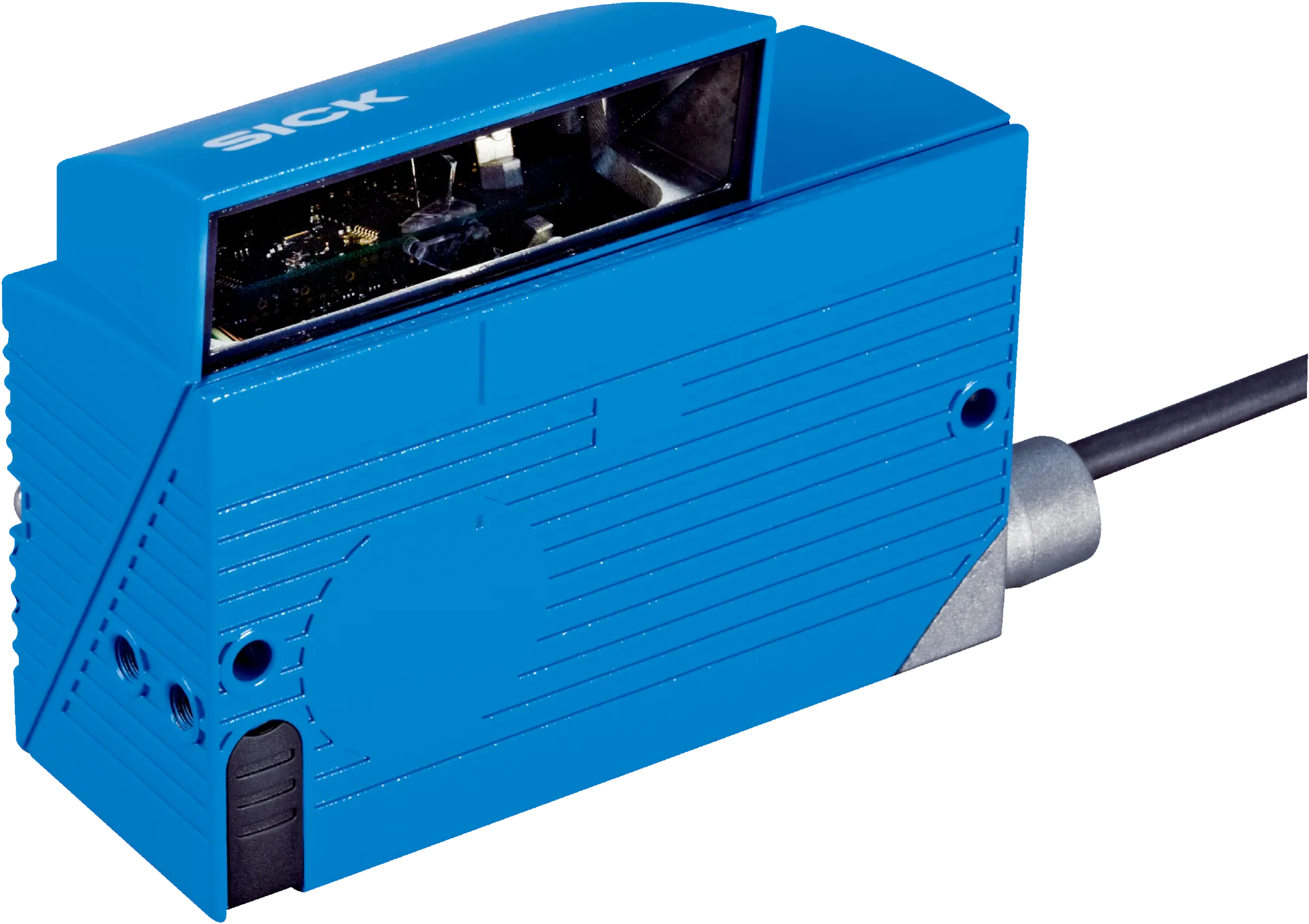

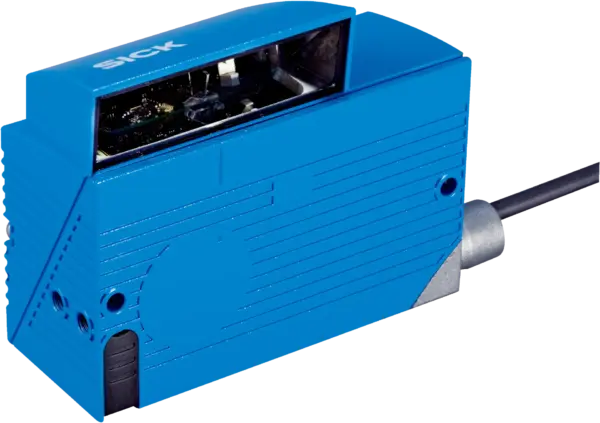

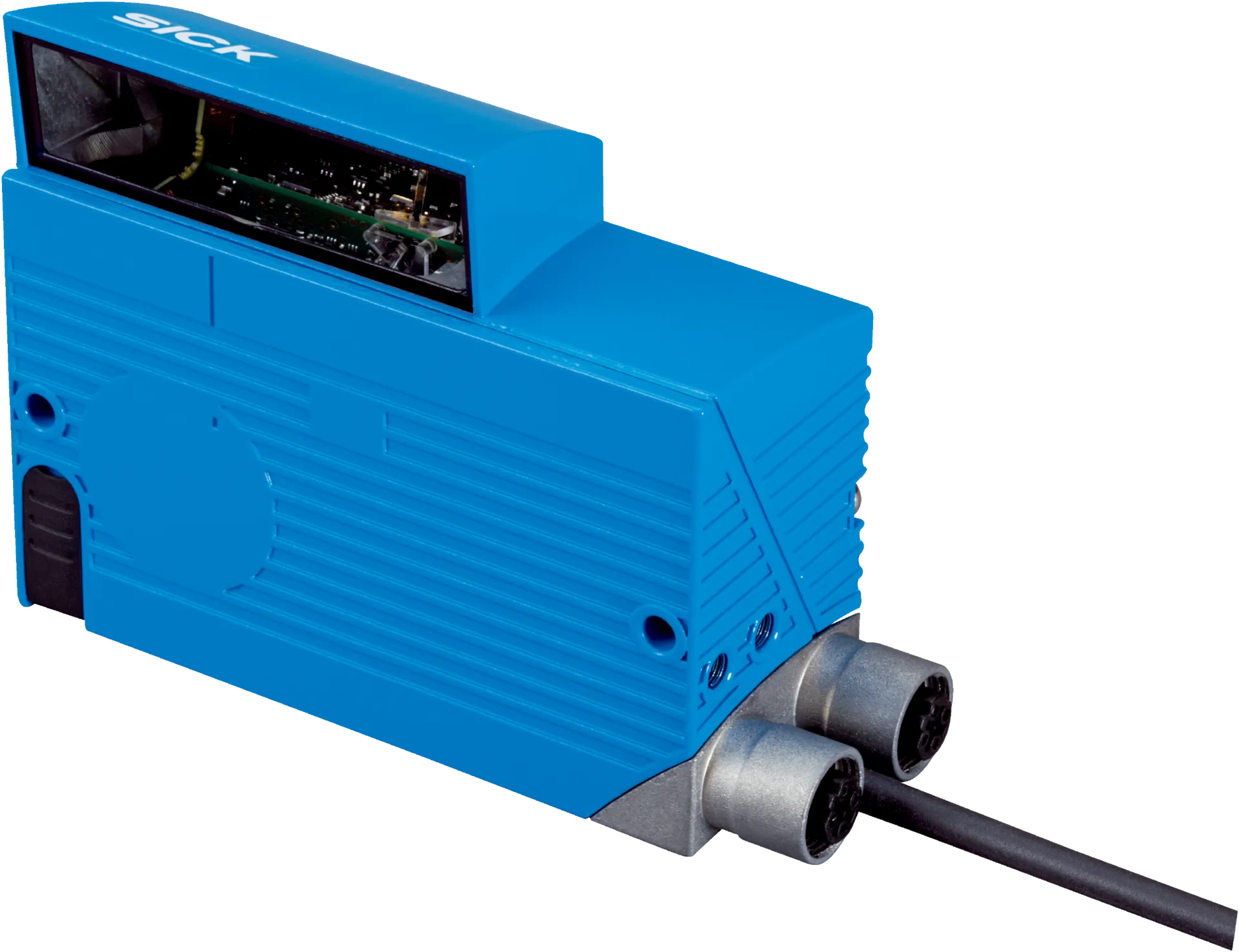

Sick CLV615-D2410F0
Fixed mount barcode scanners | CLV61x | CLV615-D2410F0 | Optical focus: Fixed focus | Communication interface: PROFINET, USB | Type: Rotary angle variant dual port (4-pin) | Max. reading distance: 330…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fixed mount barcode scanners | CLV61x | CLV615-D2410F0 | Optical focus: Fixed focus | Communication interface: PROFINET, USB | Type: Rotary angle variant dual port (4-pin) | Max. reading distance: 330 mm | Code resolution: 0.35 mm … 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: yes | Enclosure rating: IP65
Specification
Features
| Version | Long Range |
|---|---|
| Connection type | Cable |
| Reading field | Side (105°) |
| Sensor type | Line scanner |
| Optical focus | Fixed focus |
| Light source | Light spot, laser, Visible, Red, 655Â nm |
| Laser class | 2, complies with 21Â CFR 1040.10Â except for the conformance according to âLaser Notice No. 56â from May 8, 2019Â (ENÂ 60825-1:2014+A11:2021, IECÂ 60825-1:2014) |
| Aperture angle | â¤Â 50° |
| Reading distance | 25 mm ... 330 mm 1) |
| Scanning frequency | 400 Hz ... 1,000 Hz |
| Code resolution | 0.35 mm ... 0.5 mm |
| Heating | â |
| Cold storage applications | â |
Mechanics/electronics

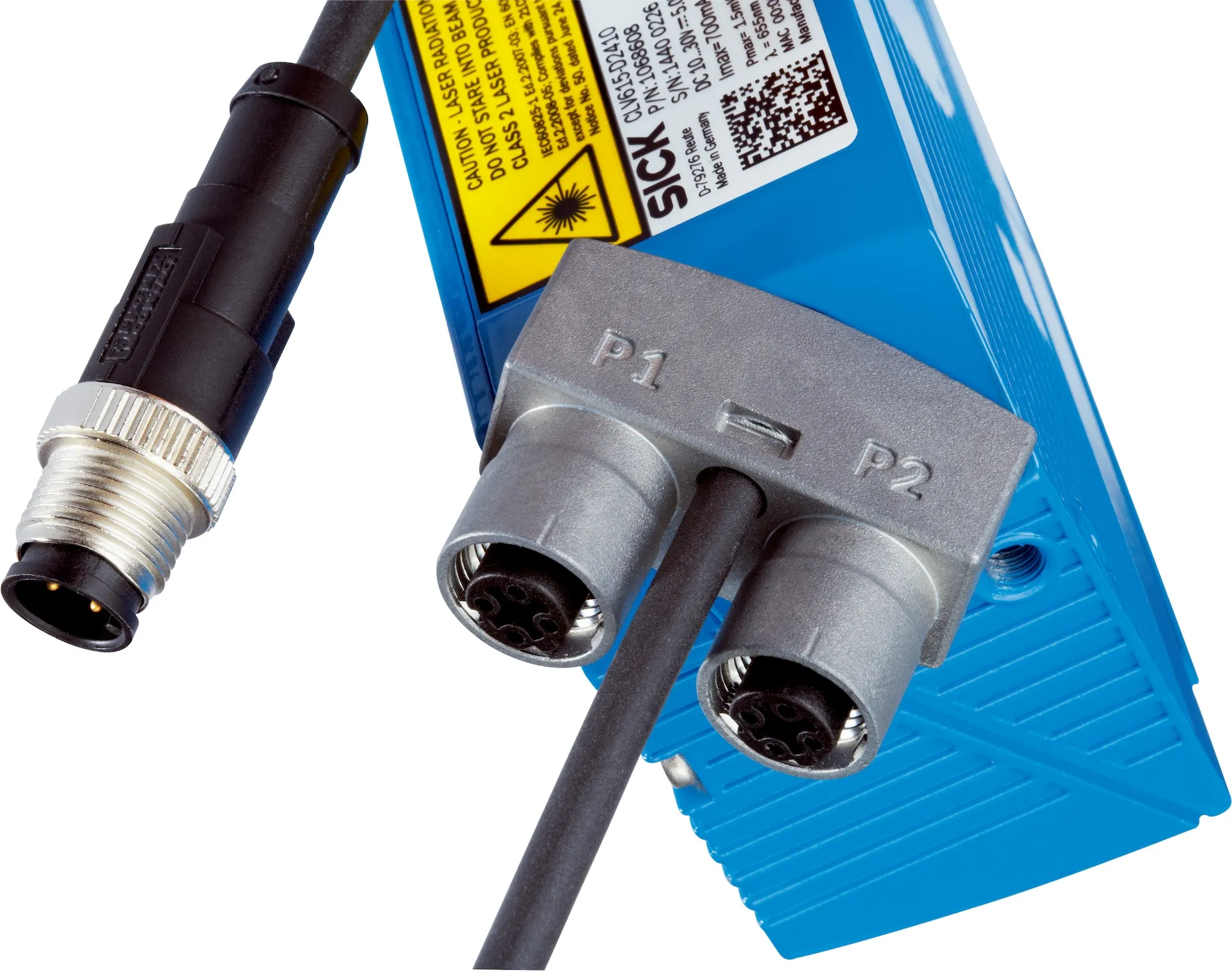

| Connection type | 1Â x âPOWERâ connection, 4-pin M12 plug (0.9Â m), A-coded1Â x âPROFINET P1â connection, 4-pin M12 female connector, D-coded1Â x âPROFINET P2â connection, 4-pin M12 socket, D-coded1Â x Micro USB female connector, type B |
|---|---|
| Supply voltage | 18Â VÂ DCÂ ... 30Â VÂ DC |
| Power consumption | 15Â W |
| Housing material | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Window material | Glass |
| Enclosure rating | IP65 (DINÂ 40 050) |
| Protection class | III (VDE 0106/IECÂ 1010-1) |
| Weight | 345.8Â g |
| Dimensions (L x W x H) | 80 mm x 96 mm x 38 mm |
| MTBF | 100,000Â h |
| MTTF | 40,000Â h (Laser diode)Â 1) |
Performance
| Readable code structures | 1D codes |
|---|---|
| Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode |
| Code printing process | Label (printed codes) |
| Print ratio | 2:1Â ... 3:1 |
| No. of codes per scan | 1Â ... 10Â (Standard decoder)1Â ... 6Â (SMART620) |
| No. of codes per reading interval | 1Â ... 50Â (auto-discriminating) |
| No. of characters per reading interval | 1,500 |
| No. of multiple readings | 1Â ... 99 |
Interfaces
| PROFINET | â |
|---|---|
| Function | PROFINET Single Port, PROFINET Dual Port |
| Data transmission rate | 2-port Ethernet in accordance with IEEE 802.3Â (baud rate 100Â MBit/s, full-duplex transmission, 2-port switch, auto-negotiation, auto-crossover). Maximum data length is limited by the mode of communication (fragmentation protocol) to 4,000Â bytes. |

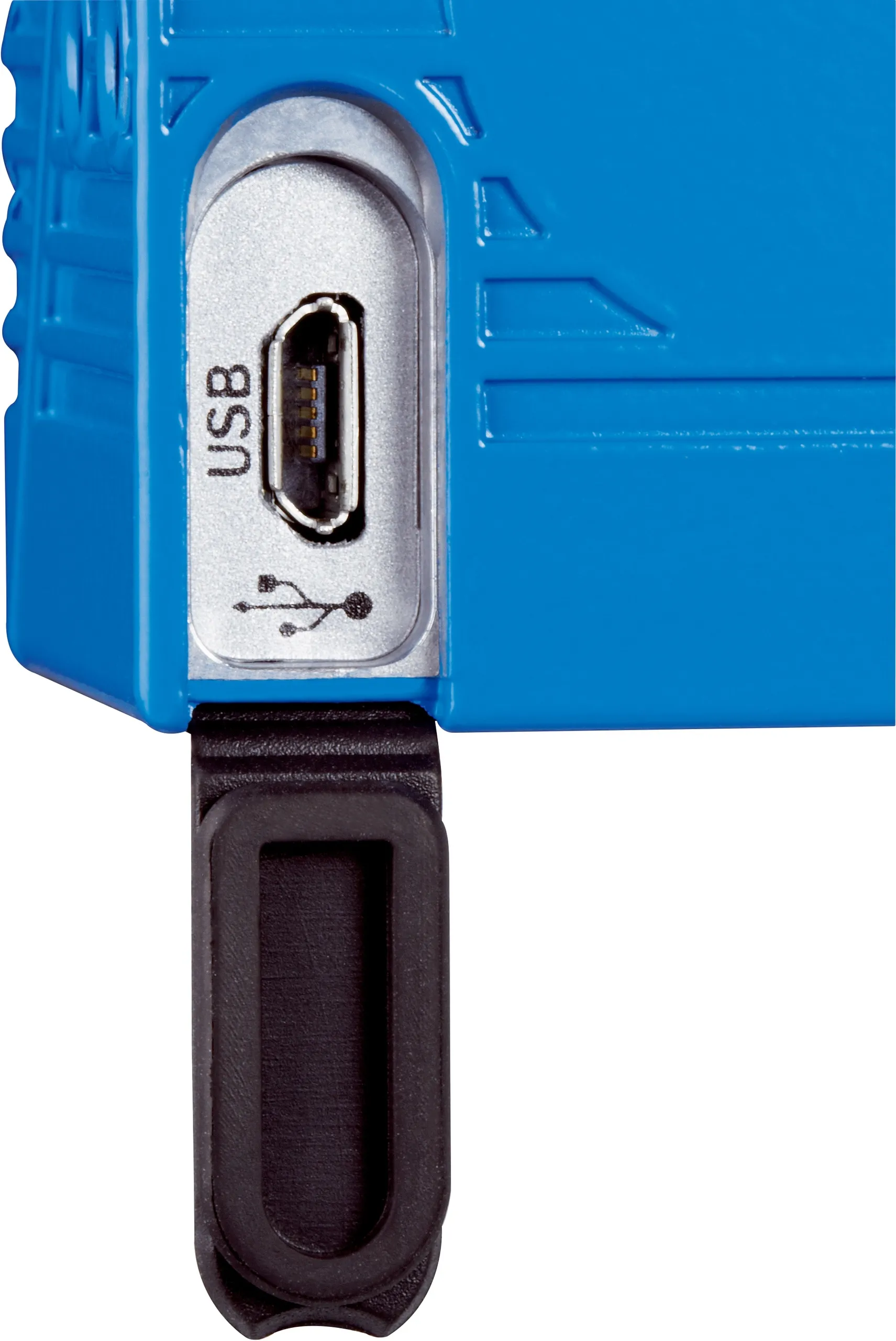

| USB | â |
| Function | Service interface |
| Digital inputs | 1Â (via PROFINET Ctrl bits) |
| Digital outputs | 4Â (via PROFINET Ctrl bits) |
| Reading pulse | Non-powered, auto pulse, Fieldbus input, command |

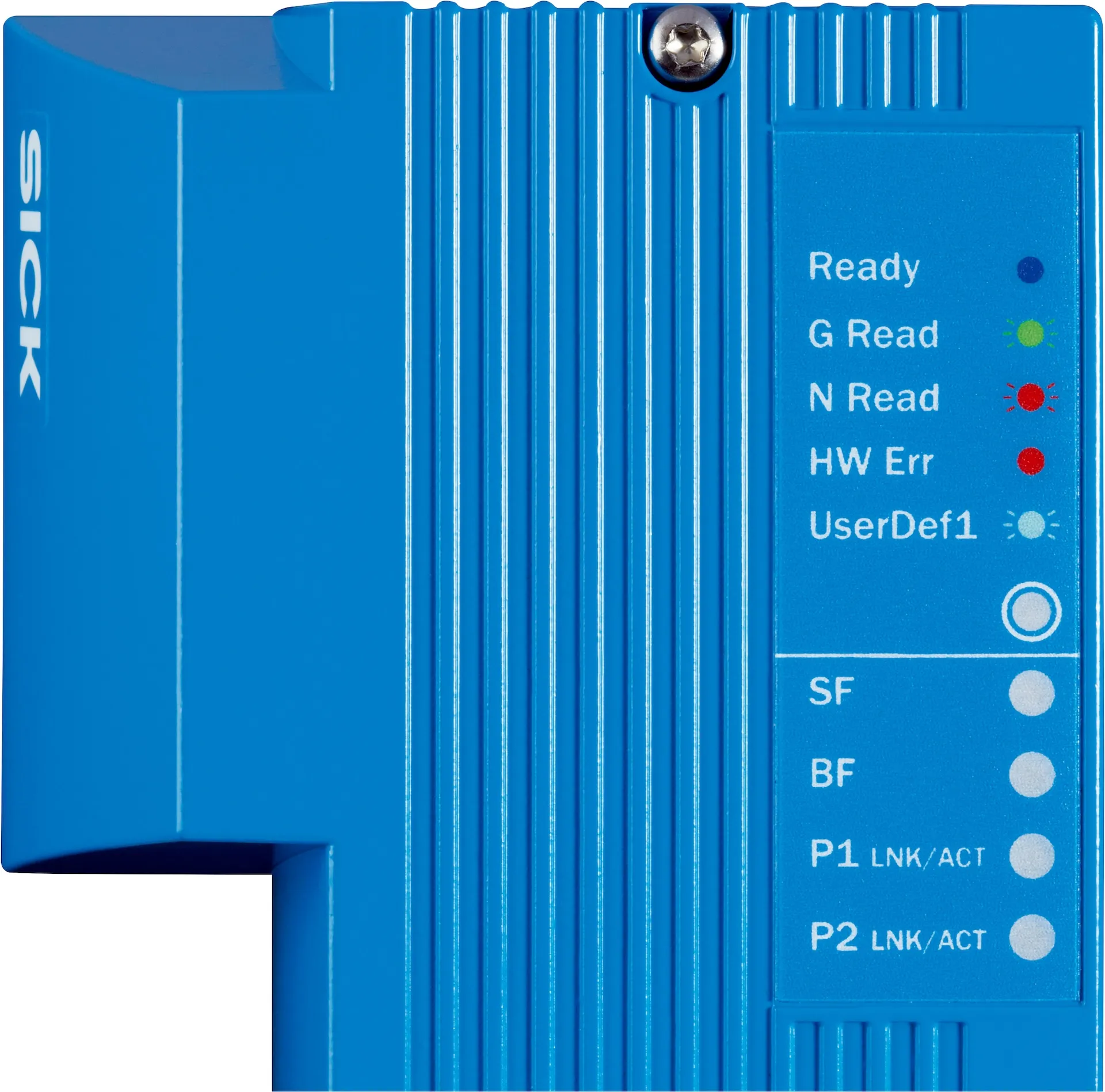

| Optical indicators | 5Â LEDs |
| Configuration software | SOPAS ET |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-4 (2007-01) + A1 (2011)Â / ENÂ 61000-6-2:2005-08 |
|---|---|
| Vibration resistance | ENÂ 60068-2-6:2008-02 |
| Shock resistance | ENÂ 60068-2-27:2009-05 |
| Ambient operating temperature | â35 °C ... +40 °C |
| Storage temperature | â20 °C ... +70 °C |
| Permissible relative humidity | 90Â %, Non-condensing |
| Ambient light immunity | 2,000Â lx, on barcode |
| Bar code print contrast (PCS) | â¥Â 60 % |
General notes
| Items supplied | Single scanner |
|---|
Classifications
| ECLASS 5.0 | 27280102 |
|---|---|
| ECLASS 5.1.4 | 27280102 |
| ECLASS 6.0 | 27280102 |
| ECLASS 6.2 | 27280102 |
| ECLASS 7.0 | 27280102 |
| ECLASS 8.0 | 27280102 |
| ECLASS 8.1 | 27280102 |
| ECLASS 9.0 | 27280102 |
| ECLASS 10.0 | 27280102 |
| ECLASS 11.0 | 27280102 |
| ECLASS 12.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Profinet certificate | â |
| Laser safety (IEC 60825-1) declaration of manufacturer | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
| 4Dpro | â |
