Sick CFM-150B4251ZZZ
Fork sensors | CFM/CFX | CFM-150B4251ZZZ | Communication interface: IO-Link | Adjustment: Plus/minus button, cable | Fork width/depth: 1 mm, 50 mm | Switching output: Push-pull: PNP/NPN, PNP, NPN | Sw…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

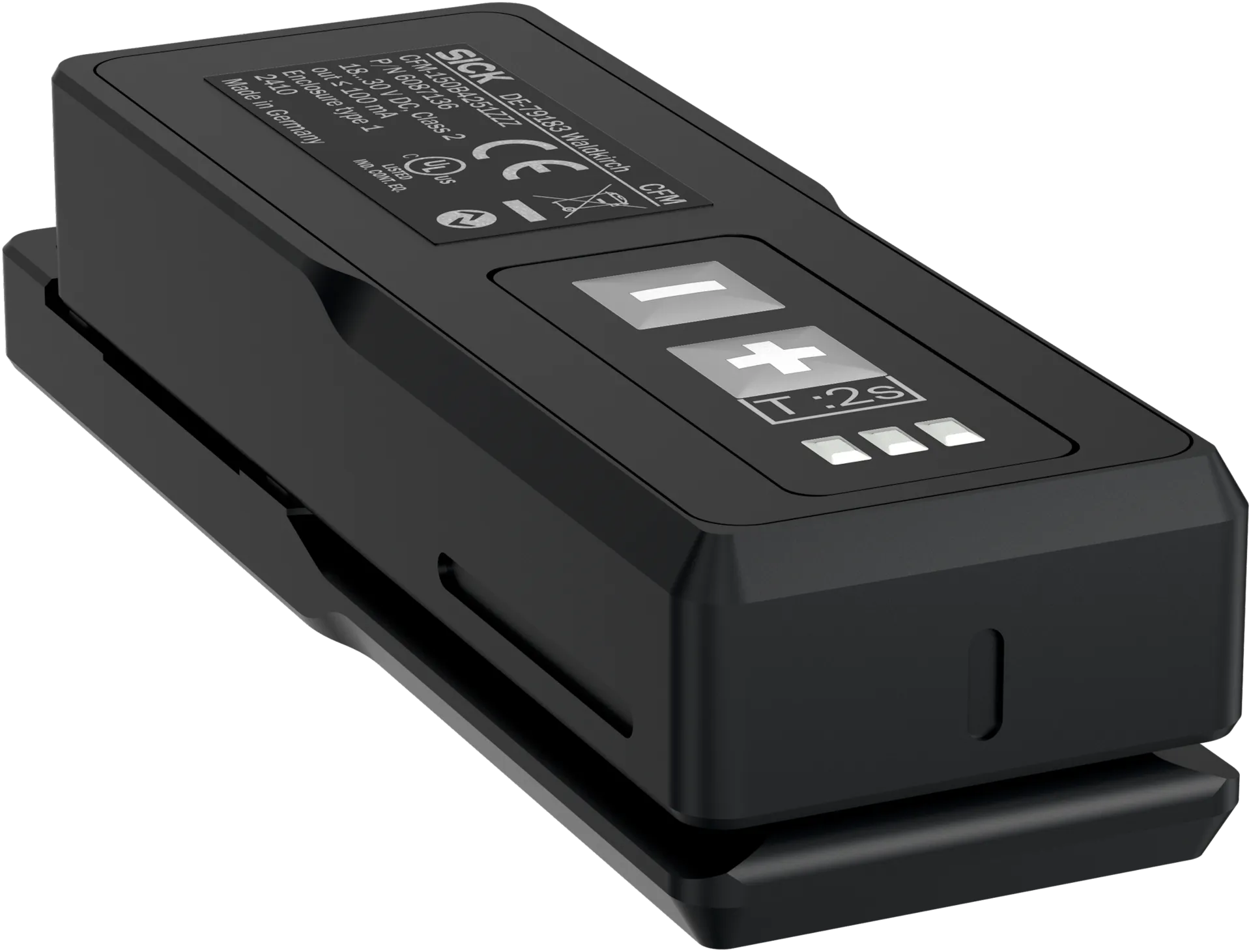

Fork sensors | CFM/CFX | CFM-150B4251ZZZ | Communication interface: IO-Link | Adjustment: Plus/minus button, cable | Fork width/depth: 1 mm, 50 mm | Switching output: Push-pull: PNP/NPN, PNP, NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Connection to sensor: Rear view | Switching frequency: 1.1 kHz | Response time: 600 µs, 1,200 µs, 300 µs | Enclosure rating: IP67
Specification
Features
| Functional principle | Capacitive |
|---|---|
| Housing design | Middle |
| Dimensions (W x H x D) | 32 mm x 22.7 mm x 102 mm |
| Fork width | 1Â mm |
| Fork depth | 50Â mm |
| Detection zone | 22Â mm |
| Label detection | ✔ |
| Label thickness | 0.9Â mm |
| Minimum detectable object (MDO) | Label size: 2 mm 1)Label gap: 2 mm 1) |
| Operating mode | Standard 2) 3)High Precision 2)High Speed 2) |
| Standard | <Â 0.15Â mm |
| High Precision | <Â 0.1Â mm |
| High Speed | <Â 0.2Â mm |
| Display | LED indicator green: power onLED indicator, yellow: Status switching output QRed display LED: Teach-in error |
| Adjustment | Plus/minus button, cable (Teach-in, sensitivity, light/dark switching, Teach-in dynamic) |
| Teach-in mode | 1-point teach-inTeach-in dynamic |
| MTTFD | 130Â years |
Interfaces
| IO-Link | ✔ , V1.1 |
|---|---|
| Data transmission rate | COM2 (38,4Â kBaud) |
| Cycle time | 3.2Â ms |
| VendorID | 26 |
| DeviceID HEX | 0x80036F |
| DeviceID DEC | 8389487 |
| Process data length | 32Â Bit |
| Process data structure A | Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = emptyBit 8 ... 15 = scaleBit 16 … 31 = measured value |
| Digital output | Q1 |
| Number | 1 |
Electronics
| Supply voltage | 18Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | <Â 10Â %Â 2) |
| Current consumption | 40Â mAÂ 3) |
| Initialization time | <Â 300Â ms |
| Switching frequency | 1.1 kHz 4) |
| Standard | 600 µs |
| High Precision | 1,200 µs |
| High Speed | 300 µs |
| Switching output | Push-pull: PNP/NPNÂ 5)PNPÂ 6)NPNÂ 6) |
| Switching output (voltage) | Push-pull: PNP/NPN High = UV - < 2 V/Low: ≤ 2 VPNP: HIGH = UV ≤ 2.8 V / LOW approx. 0 VNPN: HIGH = approx. UV / LOW ≤ 2.8 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100Â mAÂ 7) |
| Protection class | IIIÂ 8) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedProtection against voltage spikes at the power supply |
Mechanics
| Housing material | ZamakAluminum (anodised) |
|---|---|
| Weight | Approx. 140 g |
Ambient data
| Ambient operating temperature | 0 °C ... +60 °C |
|---|---|
| Ambient temperature, storage | 0 °C ... +60 °C |
| Shock load | According to ENÂ 60068-2-27 |
| EMC | ENÂ 60947-5-2Â 1) |
| Enclosure rating | IP67 |
| UL File No. | NRKH.E191603 & NRKH7.E191603 |
Connection type/pinouts
| Connection to sensor | Rear view |
|---|---|
| BN 1 | + (L+) |
| WH 2 | MFIn/Out |
| BU 3 | - (M) |
| BK 4 | Q/C |
Smart Task
| Smart Task name | Base logics |
|---|
Classifications
| ECLASS 5.0 | 27270909 |
|---|---|
| ECLASS 5.1.4 | 27270909 |
| ECLASS 6.0 | 27270909 |
| ECLASS 6.2 | 27270909 |
| ECLASS 7.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 8.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 10.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
