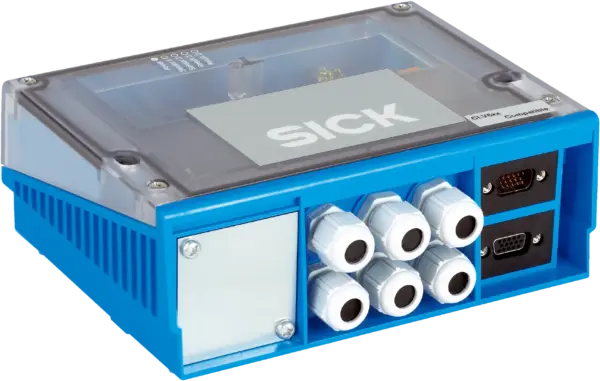

Sick CDM490-0001
Junction boxes | CDM | CDM490-0001 | Brief description: Modular connection module for one sensor | Communication interface: EthernetSerialCANPROFIBUS DPDeviceNetâ„¢ | Communication Interface detail: RS-…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Junction boxes | CDM | CDM490-0001 | Brief description: Modular connection module for one sensor | Communication interface: EthernetSerialCANPROFIBUS DPDeviceNetâ„¢ | Communication Interface detail: RS-232 | Supported products: CLV69xLMS400
Specification
Features
| Brief description | Modular connection module for one sensor |
|---|---|
| Supported products | CLV69xLMS400 |
| Cloning module support (CMC) | Yes |
| Supports display module (CMD) | Yes |
| Supports power supply module (CMP) | Yes |
| Supports fieldbus gateway (CMF) | Yes (PROFIBUS DP, Ethernet, DeviceNet™) |
Mechanics/electronics
| Power consumption | Power consumption of the sensor + 0.5Â W |
|---|---|
| Housing | Polycarbonate |
| Enclosure rating | IP65Â 1) |
| Protection class | III |
| Weight | 870Â g |
| Dimensions (L x W x H) | 192 mm x 167 mm x 70 mm |
| Scanner connection | 15-pin D-Sub HD female connector, 15-pin D-Sub HD male connector |
| Service plug | 9-pin D-Sub plug (internal) |
Interfaces
| Ethernet | ✔ , RS-232, TCP/IP, RS-485 |
|---|---|
| Remark | Depending on Sensor connected; corresponding CMF fieldbus gateway additionally necessary |
| Serial | ✔ , RS-232, RS-422, RS-485 |
| Remark | Depending on sensor connected |
| CAN | ✔ |
| Remark | Depending on sensor connected |
| PROFIBUS DP | ✔ |
| Remark | Corresponding CMF fieldbus gateway additionally necessary |
| DeviceNet™ | ✔ |
| Remark | Corresponding CMF fieldbus gateway additionally necessary |
| Digital inputs | Depending on sensor connected |
| Digital outputs | Depending on sensor connected |
| Optical indicators | 11Â LED |
| Configuration software | SOPAS ET |
Ambient data
| Ambient operating temperature | –35 °C ... +40 °C |
|---|---|
| Storage temperature | –20 °C ... +70 °C |
| Permissible relative humidity | <Â 90Â %, Non-condensing |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| 4Dpro | ✔ |
Classifications
| ECLASS 5.0 | 27242208 |
|---|---|
| ECLASS 5.1.4 | 27242608 |
| ECLASS 6.0 | 27242608 |
| ECLASS 6.2 | 27242608 |
| ECLASS 7.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 8.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 10.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ETIM 5.0 | EC001604 |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| UNSPSC 16.0901 | 32151705 |
