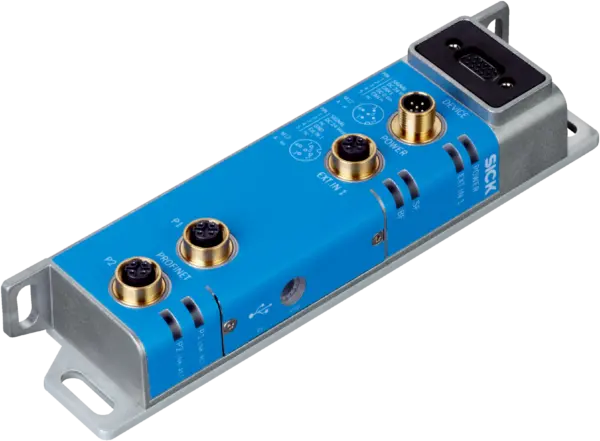

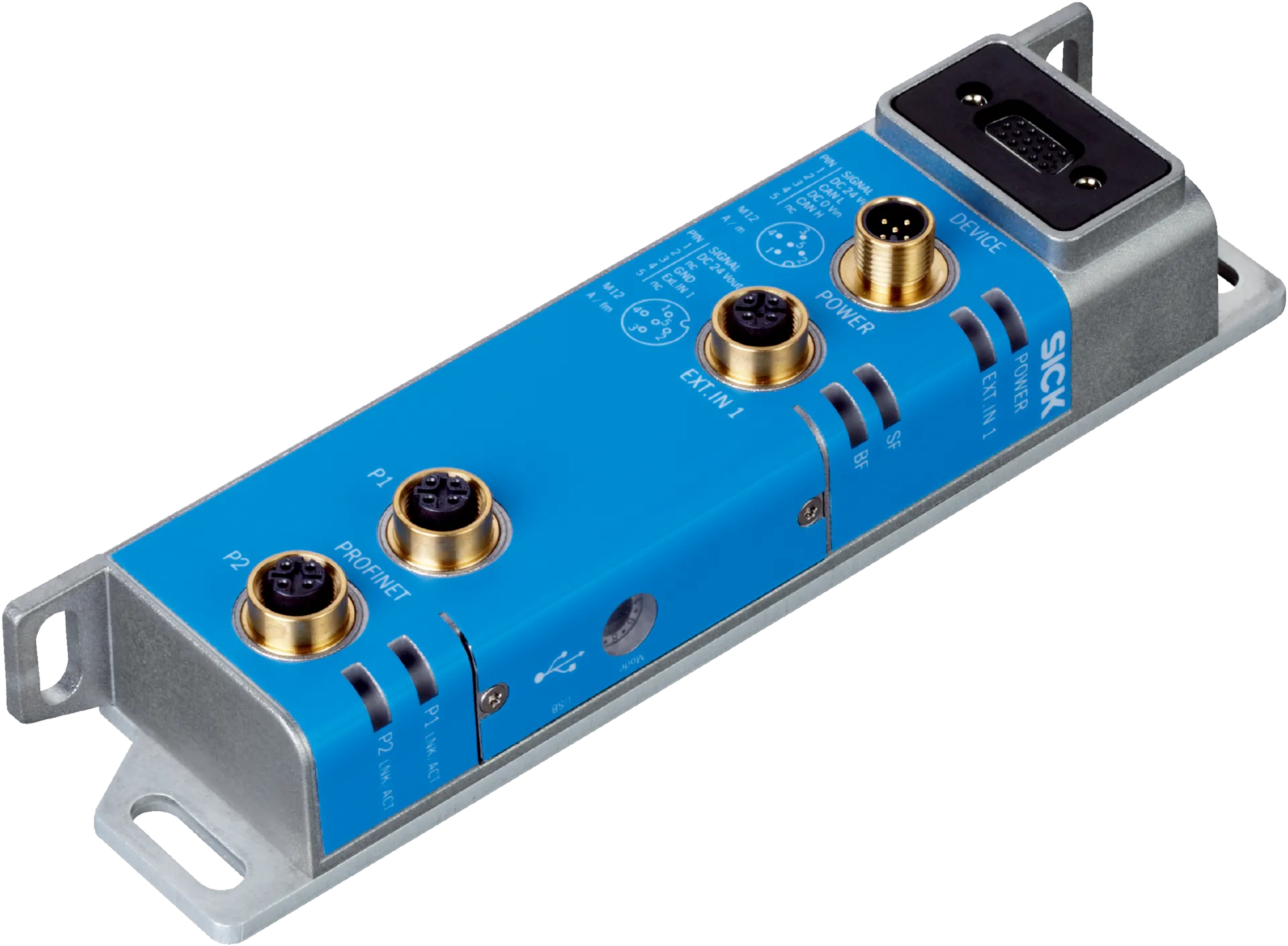

Sick CDF600-2200 – V2.x, NetX51
Network devices | CDF | CDF600-2200 – V2.x, NetX51 | Communication interface: PROFINET, Serial, CAN | Communication Interface detail: RS-232, RS-232 | Operating voltage: 10 V DC 30 V DC | Supported pr…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Network devices | CDF | CDF600-2200 – V2.x, NetX51 | Communication interface: PROFINET, Serial, CAN | Communication Interface detail: RS-232, RS-232 | Operating voltage: 10 V DC 30 V DC | Supported products: Lector series, CLV61x – CLV65x, CLV69x, RFID read/write device, Mobile handheld scanners
Specification
Features
| Supported products | Lector seriesCLV61x - CLV65xCLV69xRFID read/write deviceMobile handheld scanners |
|---|---|
| Cloning module support (CMC) | Integrated |
| Supports display module (CMD) | No |
| Supports power supply module (CMP) | No |
| Supports fieldbus gateway (CMF) | No |
Mechanics/electronics
| Supply voltage | (10Â VÂ DCÂ ... 30Â VÂ DC) |
|---|---|
| Power consumption | <Â 5Â W, if no sensor is connected and the digital input is not connected |
| Housing | Aluminum (unpainted) |
| Enclosure rating | IP65 |
| Protection class | III |
| Weight | +Â 361Â g |
| Dimensions (L x W x H) | 207 mm x 49.5 mm x 40.7 mm |
| Scanner connection | RS-232 |
Interfaces
| PROFINET | â , RS-232 |
|---|---|
| Remark | Depending on sensor connected |
| Function | PROFINET Dual Port |
| Data transmission rate | 57.6Â kBaud, 2-port Ethernet in accordance with IEEE 802.3Â (baud rate 100Â MBit/s, full-duplex transmission, 2-port switch, auto-negotiation, auto-crossover). Maximum data length is limited by the mode of communication (fragmentation protocol) to 4,000Â bytes. |
| Serial | â , RS-232 |
| Remark | Depending on sensor connected |
| Function | Service interface |
| Data transmission rate | 57.6Â kBaud |
| CAN | â |
| Digital inputs | 1 |
| Digital outputs | 0 |
| Optical indicators | 6Â LEDs |
| Configuration software | SOPAS ET |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-3/A1:2011-03Â / ENÂ 61000-6-2:2005-08 |
|---|---|
| Vibration resistance | ENÂ 60068-2-6:2008-02 |
| Shock resistance | ENÂ 60068-2-27:2009-05 |
| Ambient operating temperature | â35 °C ... +50 °C |
| Storage temperature | â35 °C ... +70 °C |
| Permissible relative humidity | <Â 90Â %, Non-condensing |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Profinet certificate | â |
Classifications
| ECLASS 5.0 | 27242208 |
|---|---|
| ECLASS 5.1.4 | 27242608 |
| ECLASS 6.0 | 27242608 |
| ECLASS 6.2 | 27242608 |
| ECLASS 7.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 8.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 10.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ETIM 5.0 | EC001604 |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| UNSPSC 16.0901 | 32151705 |
