Sick C4IT-03014ABA01KA0
Safety light curtains | TWINOX4 | C4IT-03014ABA01KA0 | Resolution: 14 mm | Scanning range: 4.5 m | Protective field height: 300 mm | Connection type: Connecting cable, 5-wire | Enclosure rating: IP65,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

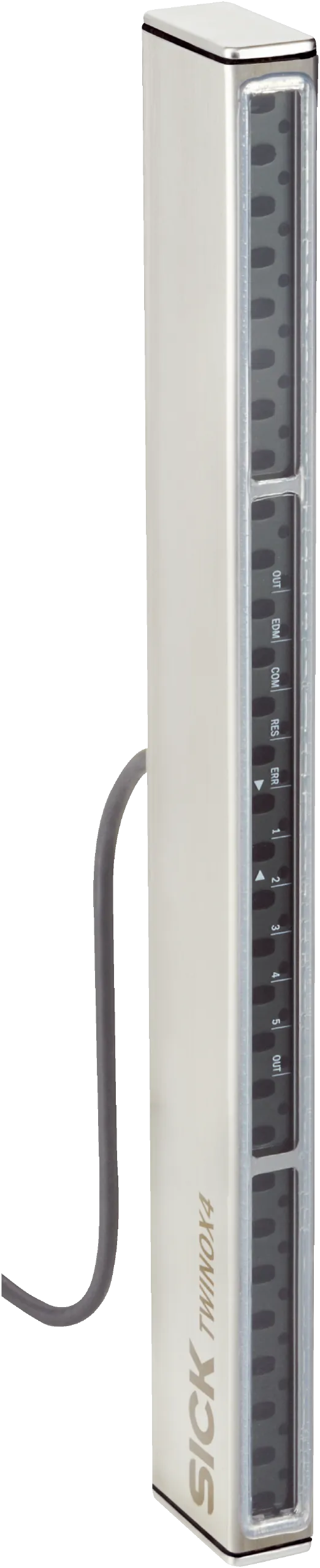

Safety light curtains | TWINOX4 | C4IT-03014ABA01KA0 | Resolution: 14 mm | Scanning range: 4.5 m | Protective field height: 300 mm | Connection type: Connecting cable, 5-wire | Enclosure rating: IP65, IP67 | Housing material: Stainless steel V4A (1.4404, 316L) | Front screen material: Chemically prestressed float glass | Items supplied: 1 twin stick with pre-mounted connecting cable, 10 m, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instructions, Operating instructions for download
Specification
Features
| Description | This article includes 1Â twin stick. Please order 2Â for a functioning TWINOX4 system. |
|---|---|
| Resolution | 14Â mm |
| Protective field height | 300Â mm |
| Scanning range | 4.5Â m |
| Response time | 14Â ms |
| Synchronization | Optical synchronization |
| Items supplied | 1Â twin stick with pre-mounted connecting cable, 10Â mTest rod with diameter corresponding to the resolution of the safety light curtainSafety instructionMounting instructionsOperating instructions for download |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508) |
| Category | Category 4Â (ISOÂ 13849-1) |
| Performance level | PL e (ISO 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 4.3Â x 10â9 |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Protective operation | â |
|---|---|
| Restart interlock | â |
| External device monitoring (EDM) | â |
| Beam coding | â |
Interfaces
| Connection type | Connecting cable (10Â m) with flying leads, 5-wire |
|---|---|
| Permitted cable length | ⤠20 m 1) |
| Permitted cross-section | â¥Â 0.34 mm² |
| Display elements | LEDs |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ ... 28.8Â V) |
| Residual ripple | ⤠10 % 1) |
| Power consumption | Approx. 161 mA |
| Power consumption typical | 3.1Â W (DC) |
| Type of output | PNP semiconductors, short-circuit protected, cross-circuit monitored 2) |
| ON state, switching voltage HIGH | 24Â VÂ DC (VS â 2.25Â VÂ DCÂ ... VS) |
| OFF state, switching voltage LOW | â¤Â 2 V DC |
| Current-carrying capacity per OSSD | â¤Â 300 mA |
Mechanics
| Housing cross-section | 40.5 mm x 20 mm |
|---|---|
| Housing material | Stainless steel V4A (1.4404, 316L) |
| Average roughness Ra | â¤Â 0.8 µm |
| Front screen material | Chemically prestressed float glass |
| Material of the end caps | Stainless steel V4A (1.4404, 316L) |
| Seal material | EPDM |
| PCB material | Glass fiber reinforced epoxy resin with flame retardant TBBPA |
| External material of the connecting cable | TPU (PUR) |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529)IP67 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | â20 °C ... +55 °C |
| Storage temperature | â25 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 ⦠150 Hz, 3,5 mm / 1 g (EN 60068-2-6) |
| Shock resistance | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Class | 3M4 (IECÂ TR 60721-4-3) |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6) |
| Shock resistance | 10Â g, 16Â ms (ENÂ 60068-2-27) |
Other information
| Wave length | 850Â nm |
|---|---|
| Type of light | Near-infrared (NIR), invisible |
Classifications
| ECLASS 5.0 | 27272704 |
|---|---|
| ECLASS 5.1.4 | 27272704 |
| ECLASS 6.0 | 27272704 |
| ECLASS 6.2 | 27272704 |
| ECLASS 7.0 | 27272704 |
| ECLASS 8.0 | 27272704 |
| ECLASS 8.1 | 27272704 |
| ECLASS 9.0 | 27272704 |
| ECLASS 10.0 | 27272704 |
| ECLASS 11.0 | 27272704 |
| ECLASS 12.0 | 27272704 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 46171620 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| ULus approval | â |
| cUL approval | â |
| EC-Type-Examination approval | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
