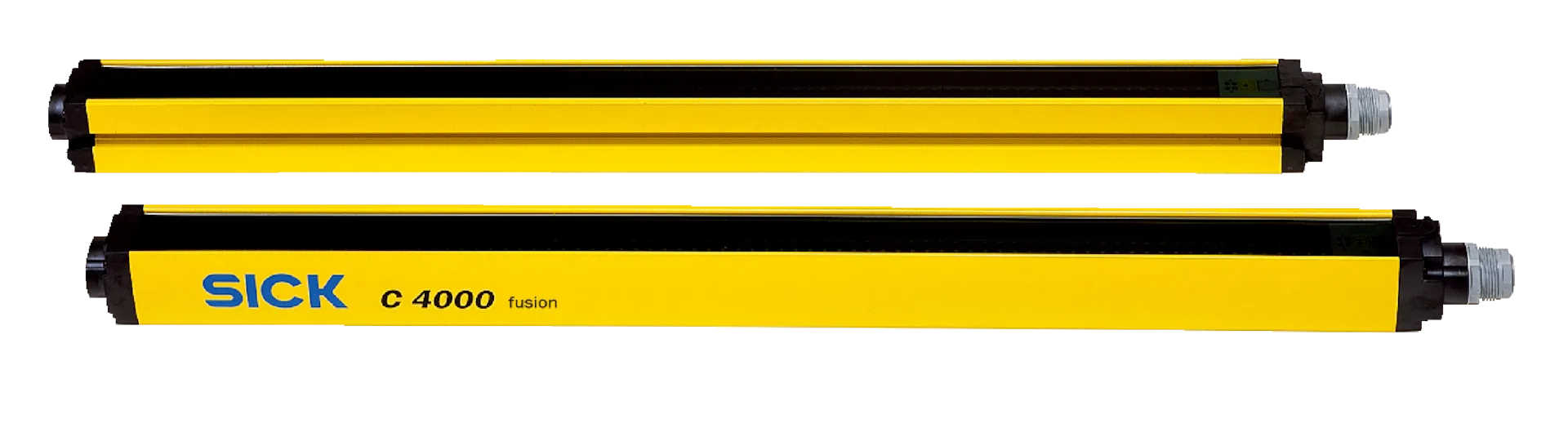

Sick C40S-1302FY010, C40E-1302GY010 - Image 1

Fast delivery within 72 Hours

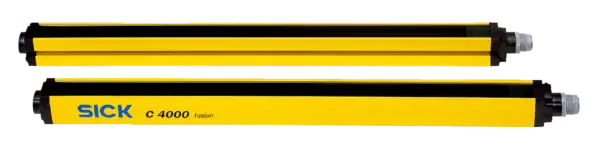

Sick C40S-1302FY010, C40E-1302GY010

Safety light curtains | C4000 Fusion | C40S-1302FY010, C40E-1302GY010 | System part: Pair | Application: Normal industrial environment | Usage: As a standalone system | Safety level: PL e, SIL 3, Type…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Safety light curtains | C4000 Fusion | C40S-1302FY010, C40E-1302GY010 | System part: Pair | Application: Normal industrial environment | Usage: As a standalone system | Safety level: PL e, SIL 3, Type 4 | Resolution: 20 mm | Scanning range: 21 m | Protective field height: 1,350 mm | Connection type: Hirschmann male connector M26, 12-pin | Enclosure rating: IP65

Specification

Features

DescriptionC4000 Fusion with extension connection on the receiver
ApplicationNormal industrial environment
System partPair
Resolution20Â mm
Scanning range21Â m
Protective field height1,350Â mm
SynchronizationOptical synchronization

Safety-related parameters

TypeType 4Â (IECÂ 61496-1)
Safety integrity levelSIL 3Â (IECÂ 61508)
CategoryCategory 4Â (ENÂ ISOÂ 13849)
Performance levelPL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour)15Â * 10-9 (ENÂ ISOÂ 13849)
TM (mission time)20Â years (ENÂ ISOÂ 13849)
Safe state in the event of a faultAt least one OSSD is in the OFF state.

Functions

Protective operation✔
Restart interlock✔
External device monitoring (EDM)✔
Beam coding✔
Configurable scanning range✔
Reduced resolution✔
Fixed blanking✔
Dynamic blanking for object pattern recognition✔
Self-teaching dynamic blanking for goods detection✔
Self-teaching dynamic blanking for pallet detection✔
Multiple sampling✔
Direction monitoring✔
Virtual photoelectric switches✔
Sensor gap monitoring✔
Sequence monitoring✔
Object entry monitoring✔
Detection of geometrically even objects✔
Emergency stop/bypass at the extension connection✔
Safe SICK device communication via EFI✔

Functions in combination with UE402

Bypass✔
Operating mode switching✔

Interfaces

Conductor cross section0.75 mm²
Permitted cable length50Â m
Configuration connectionFemale connector M8, 4-pin
Configuration methodPC with CDS (Configuration and Diagnostic Software)
Display elements7-segment display

Electronics

Protection classIII (IECÂ 61140)
Supply voltage VS24Â VÂ DC (19.2Â VÂ ... 28.8Â V)Â 1)
Residual ripple≤ 10 % 2)
Type of output2Â PNP semiconductors, short-circuit protected, cross-circuit monitored
Current-carrying capacity per OSSD≤ 500 mA

Mechanics

DimensionsSee dimensional drawing
Housing cross-section48 mm x 40 mm
Housing materialAluminum extruded profile

Ambient data

Enclosure ratingIP65 (ENÂ 60529)
Ambient operating temperature0 °C ... +55 °C
Storage temperature–25 °C ... +70 °C
Air humidity15Â %Â ... 95Â %, Non-condensing
Vibration resistance5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
Shock resistance10Â g, 16Â ms (ENÂ 60068-2-27)

Other information

Wave length850Â nm
Laser class1Â (IECÂ 60825-1), eye-safe

Classifications

ECLASS 5.027272704
ECLASS 5.1.427272704
ECLASS 6.027272704
ECLASS 6.227272704
ECLASS 7.027272704
ECLASS 8.027272704
ECLASS 8.127272704
ECLASS 9.027272704
ECLASS 10.027272704
ECLASS 11.027272704
ECLASS 12.027272704
ETIM 5.0EC002549
ETIM 6.0EC002549
ETIM 7.0EC002549
ETIM 8.0EC002549
UNSPSC 16.090146171620
