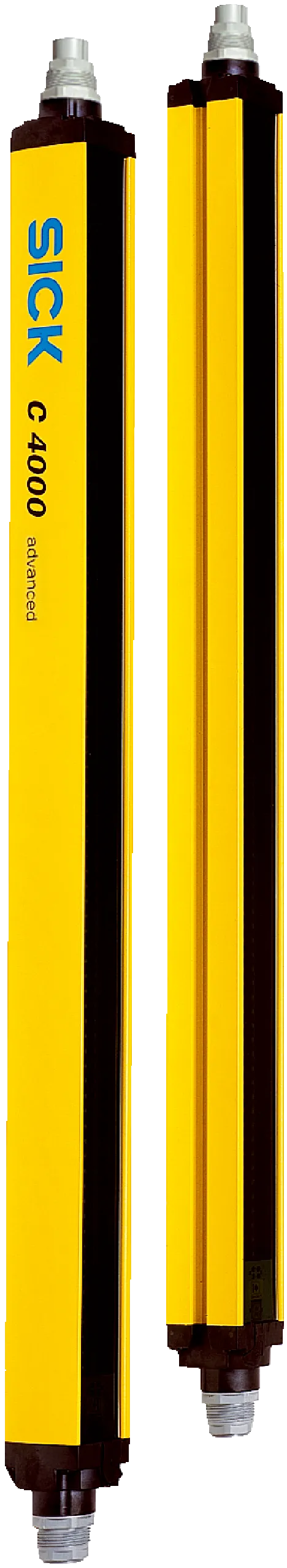

Sick C40S-1002DA010, C40E-1002DB010
Safety light curtains | C4000 Advanced | C40S-1002DA010, C40E-1002DB010 | System part: Pair | Resolution: 20 mm | Scanning range: 21 m | Protective field height: 1,050 mm | Connection type: Hirschmann…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light curtains | C4000 Advanced | C40S-1002DA010, C40E-1002DB010 | System part: Pair | Resolution: 20 mm | Scanning range: 21 m | Protective field height: 1,050 mm | Connection type: Hirschmann male connector M26, 12-pin | Extension connection: Hirschmann female connector M26, 12Â pin
Specification
Features
| Description | C4000 Advanced with extension connection M26, 12-pin |
|---|---|
| Application | Normal industrial environment |
| System part | Pair |
| Resolution | 20Â mm |
| Scanning range | 21Â m |
| Protective field height | 1,050Â mm |
| Response time | 16 ms 1) |
| Synchronization | Optical synchronization |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508) |
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 15Â * 10-9 (ENÂ ISOÂ 13849)43Â * 10-9 (ENÂ ISOÂ 13849)63Â * 10-9 (ENÂ ISOÂ 13849) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Protective operation | ✔ |
|---|---|
| Restart interlock | ✔ |
| External device monitoring (EDM) | ✔ |
| Beam coding | ✔ |
| Configurable scanning range | ✔ |
| Fixed blanking | ✔ |
| Floating blanking | ✔ |
| Safe SICK device communication via EFI | ✔ |
Functions in combination with UE402
| Bypass | ✔ |
|---|---|
| Operating mode switching | ✔ |
| PSDI mode | ✔ |
Interfaces
| Permitted cable length | 50 m 1) |
|---|---|
| Extension connection | Hirschmann female connector M26, 12Â pin |
| Configuration connection | Female connector M8, 4-pin |
| Configuration method | PC with CDS (Configuration and Diagnostic Software) |
| Display elements | 7-segment display |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ ... 28.8Â V)Â 1) |
| Residual ripple | ≤ 10 % 2) |
| Type of output | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 3) |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Housing cross-section | 48 mm x 40 mm |
| Housing material | Aluminum extruded profile |
Ambient data
| Enclosure rating | IP65 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | 0 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (EN 60068-2-6) |
| Shock resistance | 10Â g, 16Â ms (ENÂ 60068-2-27) |
Other information
| Wave length | 850Â nm |
|---|
Classifications
| ECLASS 5.0 | 27272704 |
|---|---|
| ECLASS 5.1.4 | 27272704 |
| ECLASS 6.0 | 27272704 |
| ECLASS 6.2 | 27272704 |
| ECLASS 7.0 | 27272704 |
| ECLASS 8.0 | 27272704 |
| ECLASS 8.1 | 27272704 |
| ECLASS 9.0 | 27272704 |
| ECLASS 10.0 | 27272704 |
| ECLASS 11.0 | 27272704 |
| ECLASS 12.0 | 27272704 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 46171620 |
