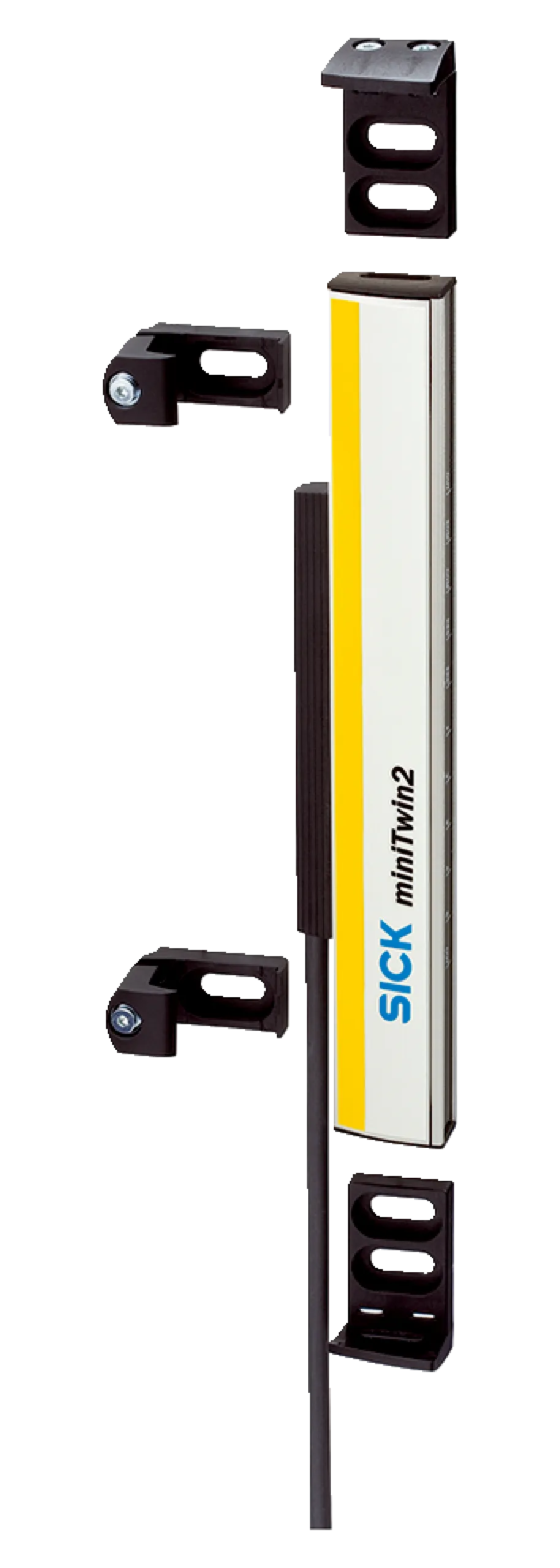

Sick C2MT-11434BBC03FE0
Safety light curtains | miniTwin | C2MT-11434BBC03FE0 | System part: 1 Twin-Stick | Usage: miniTwin2 as a standalone device, miniTwin2 as last guest for 2- or 3-device cascade | Mounting system type:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light curtains | miniTwin | C2MT-11434BBC03FE0 | System part: 1 Twin-Stick | Usage: miniTwin2 as a standalone device, miniTwin2 as last guest for 2- or 3-device cascade | Mounting system type: C-fix or L-fix bracket | Safety level: PL c, SIL 1, Type 2 | Resolution: 34 mm | Scanning range: 8 m | Protective field height: 1,140 mm | Connection type: Male connector M12, 5-pin | Enclosure rating: IP65 | Items supplied: Twin stick, system plug, C-Fix and L-Fix bracket, 2 pieces each, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instructions, Operating instructions for download
Specification
Features
| System part | 1Â Twin-Stick |
|---|---|
| Usage | miniTwin2 as a standalone deviceminiTwin2 as last guest for 2- or 3-device cascade |
| Mounting system type | C-fix or L-fix bracket |
| Resolution | 34Â mm |
| Minimum | 0 m ... 6 m |
| Typical | 0 m ... 8 m |
| Protective field height | 1,140Â mm |
| Response time | ⤠13 ms 1) |
| Synchronization | Optical, without separate synchronization |
| Items supplied | Twin stickSystem plugC-Fix and L-Fix bracket, 2Â pieces eachTest rod with diameter corresponding to the resolution of the safety light curtainSafety instructionMounting instructionsOperating instructions for download |
Safety-related parameters
| Type | Type 2Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 1Â (IECÂ 61508) |
| Category | Category 2Â (ENÂ ISOÂ 13849) |
| Test rate (internal test) | 58Â /s |
| Maximum demand rate | 34 minâ»Â¹ (EN ISO 13849) 1) |
| Performance level | PL c (EN ISO 13849), Pay attention to optical characteristics! 2) |
| PFHD (mean probability of a dangerous failure per hour) | Standalone system: 2.4 x 10-8 (EN ISO 13849) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Restart interlock | â |
|---|---|
| External device monitoring (EDM) | â |
| Beam coding | Automatic |
Interfaces
| System connection | Male connector M12, 5-pin |
|---|---|
| Length of cable | 700Â mm |
| Conductor cross section | 0.34 mm² |
| Permitted cable length | ⤠20 m 1) |
| Configuration method | Hard wired |
| Display elements | LEDs |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Ripple | ⤠10 % 1) |
| Power consumption | ⤠3 A 2) |
| Type of output | PNP semiconductors, short-circuit protected, cross-circuit monitored 3) |
| ON state, switching voltage HIGH | 24Â VÂ DC (VS â 2.25Â VÂ DCÂ ... VS) |
| OFF state, switching voltage LOW | â¤Â 2 V DC |
| Current-carrying capacity per OSSD | â¤Â 300 mA |
Mechanics
| Housing cross-section (incl. system connection) | 15 mm x 32 mm |
|---|---|
| Housing material | Aluminum alloy ALMGSI 0.5 |
| Weight | 400Â g |
Ambient data
| Enclosure rating | IP65 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | â20 °C ... +55 °C |
| Storage temperature | â25 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 ⦠150 Hz, 3,5 mm / 1 g (EN 60068-2-6) |
| Shock resistance | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Class | 3M4 (IECÂ TR 60721-4-3) |
Other information
| Wave length | 850Â nm |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| UK-Type-Examination approval | â |
| ULus approval | â |
| cUL approval | â |
| EC-Type-Examination approval | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27272704 |
|---|---|
| ECLASS 5.1.4 | 27272704 |
| ECLASS 6.0 | 27272704 |
| ECLASS 6.2 | 27272704 |
| ECLASS 7.0 | 27272704 |
| ECLASS 8.0 | 27272704 |
| ECLASS 8.1 | 27272704 |
| ECLASS 9.0 | 27272704 |
| ECLASS 10.0 | 27272704 |
| ECLASS 11.0 | 27272704 |
| ECLASS 12.0 | 27272704 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 46171620 |
