Sick C2C-SG04510A10000, C2C-EG04510A10000

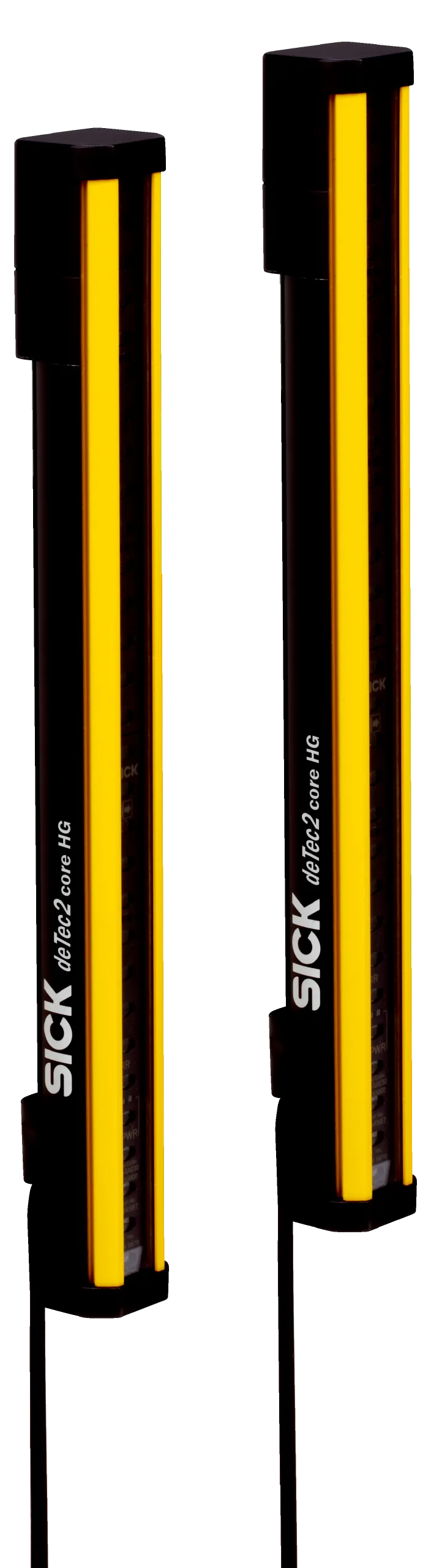

Safety light curtains | deTec | C2C-SG04510A10000, C2C-EG04510A10000 | Product version: deTec2 Core HG | System part: Pair | Application: Areas where coolants, lubricants and cleaning agents are used…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light curtains | deTec | C2C-SG04510A10000, C2C-EG04510A10000 | Product version: deTec2 Core HG | System part: Pair | Application: Areas where coolants, lubricants and cleaning agents are used | Front screen material: Chemically prestressed float glass | Safety level: PL c, SIL 1, Type 2 | Resolution: 14 mm | Scanning range: 10 m | Protective field height: 450 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instructions, Operating instructions for download
Specification
Features
| Product version | deTec2 Core HG |
|---|---|
| Application | Areas where coolants, lubricants and cleaning agents are used |
| System part | Pair |
| Resolution | 14Â mm |
| Scanning range | 10Â m |
| Protective field height | 450Â mm |
| Response time | 12Â ms |
| No blind zones | Yes |
| Synchronization | Optical synchronization |
| Items supplied | SenderReceiverTest rod with diameter corresponding to the resolution of the safety light curtainSafety instructionMounting instructionsOperating instructions for download |
Safety-related parameters
| Type | Type 2Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 1Â (IECÂ 61508) |
| Category | Category 2Â (ISOÂ 13849-1) |
| Performance level | PL c (ISOÂ 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 31Â x 10-9 |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Protective operation | ✔ |
|---|---|
| Automatic calibration of the protective field width | ✔ |
Interfaces
| System connection | Plug, M12, 5-pin |
|---|---|
| Length of cable | 150Â mm |
| Cable diameter | 4.3Â mm |
| Stationary position | > 12Â x cable diameter |
| Flexible use | > 15Â x cable diameter |
| Display elements | LEDs |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ ... 28.8Â V) |
| Ripple | ≤ 10 % |
| Type of output | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 1) |
| ON state, switching voltage HIGH | 24 V DC (VS – 2.25 V DC ... VS) |
| OFF state, switching voltage LOW | ≤ 2 V DC |
| Current-carrying capacity per OSSD | ≤ 300 mA |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Housing material | Aluminum extruded profile |
| Front screen material | Chemically prestressed float glass |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529)IP67 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +55 °C |
| Storage temperature | –30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6) |
| Shock resistance | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Class | 3M4 (IECÂ TR 60721-4-3) |
Other information
| Wave length | 850Â nm |
|---|---|
| Type of light | Near-infrared (NIR), invisible |
Classifications
| ECLASS 5.0 | 27272704 |
|---|---|
| ECLASS 5.1.4 | 27272704 |
| ECLASS 6.0 | 27272704 |
| ECLASS 6.2 | 27272704 |
| ECLASS 7.0 | 27272704 |
| ECLASS 8.0 | 27272704 |
| ECLASS 8.1 | 27272704 |
| ECLASS 9.0 | 27272704 |
| ECLASS 10.0 | 27272704 |
| ECLASS 11.0 | 27272704 |
| ECLASS 12.0 | 27272704 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 46171620 |
