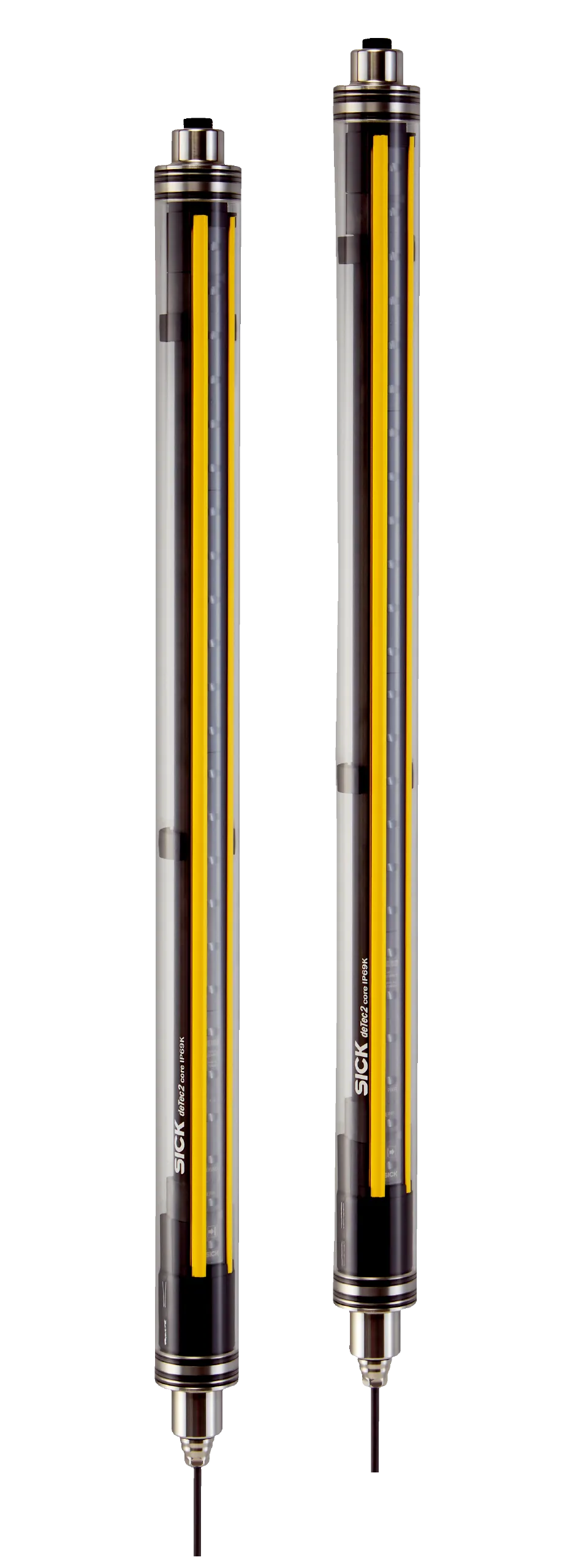

Sick C2C-SB13530A10000, C2C-EB13530A10000
Safety light curtains | deTec | C2C-SB13530A10000, C2C-EB13530A10000 | Product version: deTec2 Core IP69K | System part: Pair | Application: Areas with special hygiene requirements | Safety level: PL…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light curtains | deTec | C2C-SB13530A10000, C2C-EB13530A10000 | Product version: deTec2 Core IP69K | System part: Pair | Application: Areas with special hygiene requirements | Safety level: PL c, SIL 1, Type 2 | Resolution: 30 mm | Scanning range: 12.5 m | Protective field height: 1,350 mm | Connection type: Connecting cable, 15 m, flying leads, 5-wire | Enclosure rating: IP65, IP66, IP67, IP69K | Items supplied: Sender in IP69K protective housing with connecting cable, 15 m, receiver in IP69K protective housing with connecting cable, 15 m, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instructions, Operating instructions for download
Specification
Features
| Product version | deTec2 Core IP69K |
|---|---|
| Application | Areas with special hygiene requirements |
| System part | Pair |
| Resolution | 30Â mm |
| Scanning range | 12.5Â m |
| Protective field height | 1,350Â mm |
| Response time | 12Â ms |
| No blind zones | Yes |
| Synchronization | Optical synchronization |
| Items supplied | Sender in IP69K protective housing with connecting cable, 15Â mReceiver in IP69K protective housing with connecting cable, 15Â mTest rod with diameter corresponding to the resolution of the safety light curtainSafety instructionMounting instructionsOperating instructions for download |
Safety-related parameters
| Type | Type 2Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 1Â (IECÂ 61508) |
| Category | Category 2Â (ISOÂ 13849-1) |
| Performance level | PL c (ISOÂ 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 31Â x 10-9 |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Protective operation | â |
|---|---|
| Automatic calibration of the protective field width | â |
Interfaces
| System connection | Connecting cable, 15Â m, flying leads, 5-wire |
|---|---|
| Length of cable | 15Â m |
| Cable diameter | 5Â mm |
| Cable material | PUR, halogen-free |
| Conductor cross section | 0.34 mm² |
| Display elements | LEDs |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ ... 28.8Â V) |
| Ripple | ⤠10 % |
| Type of output | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 1) |
| ON state, switching voltage HIGH | 24Â VÂ DC (VS â 2.25Â VÂ DCÂ ... VS) |
| OFF state, switching voltage LOW | â¤Â 2 V DC |
| Current-carrying capacity per OSSD | â¤Â 300 mA |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Protective housing | PMMA |
| End caps | Stainless steel 1.4404 |
| Cable glands | Stainless steel 1.4404Â including silicone seal |
| Compensating element (membrane) | PA 6 |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529)IP66 (IECÂ 60529)IP67 (IECÂ 60529)IP69K (ISOÂ 20653) |
|---|---|
| Ambient operating temperature | â30 °C ... +55 °C |
| Storage temperature | â30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 ⦠150 Hz, 3,5 mm / 1 g (EN 60068-2-6) |
| Shock resistance | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Class | 3M4 (IECÂ TR 60721-4-3) |
Other information
| Wave length | 850Â nm |
|---|---|
| Type of light | Near-infrared (NIR), invisible |
Classifications
| ECLASS 5.0 | 27272704 |
|---|---|
| ECLASS 5.1.4 | 27272704 |
| ECLASS 6.0 | 27272704 |
| ECLASS 6.2 | 27272704 |
| ECLASS 7.0 | 27272704 |
| ECLASS 8.0 | 27272704 |
| ECLASS 8.1 | 27272704 |
| ECLASS 9.0 | 27272704 |
| ECLASS 10.0 | 27272704 |
| ECLASS 11.0 | 27272704 |
| ECLASS 12.0 | 27272704 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 46171620 |
