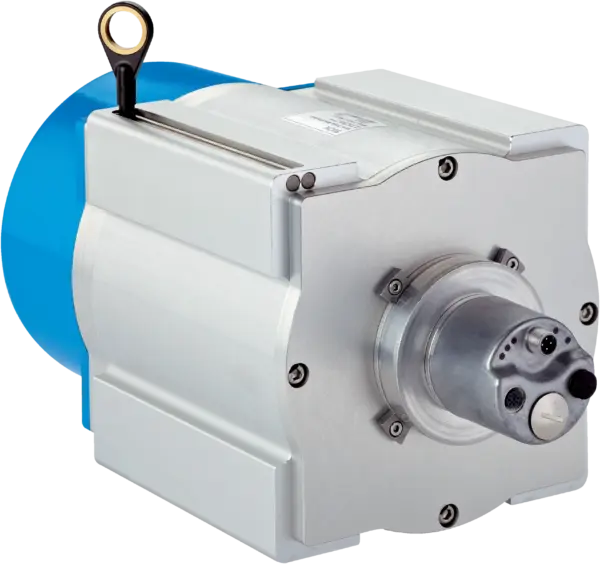

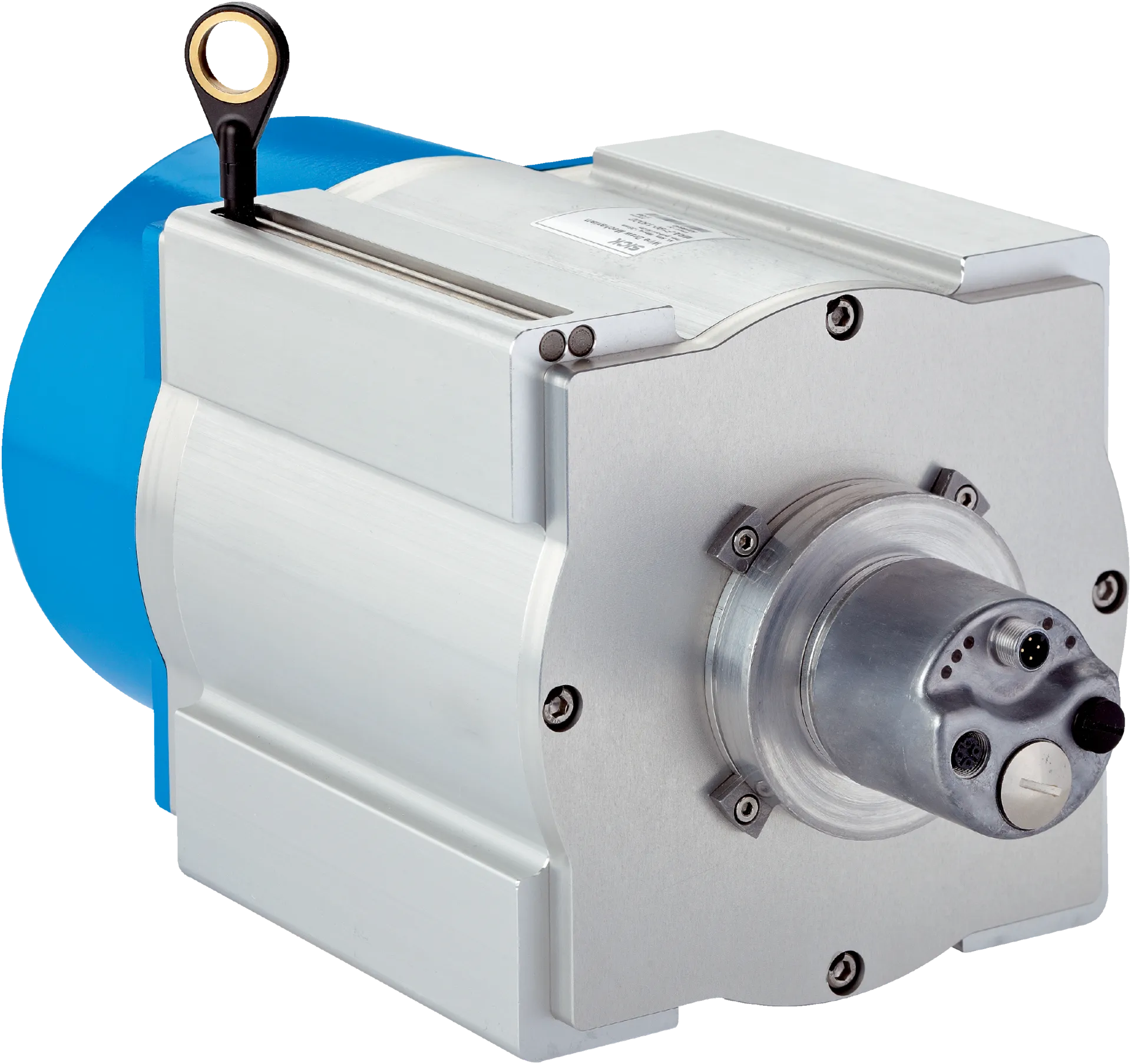

Sick BTF19-N1BM5099
Wire draw encoders | HighLine | BTF19-N1BM5099 | Measuring range: 0 m … 50 m | Communication interface: PROFINET | Supply voltage: 10 V DC … 30 V DC | Connection type: Male connector, 1x, M12, 4-p…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Wire draw encoders | HighLine | BTF19-N1BM5099 | Measuring range: 0 m … 50 m | Communication interface: PROFINET | Supply voltage: 10 V DC … 30 V DC | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: AFM60 PROFINET, AFM60A-S1NB018X12, 1059040 | Mounted mechanic: MRA-F190-150D2, 6028630 | Programmable/configurable: yes
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 80Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Measurement range | 0 m ... 50 m |
|---|---|
| Encoder | Absolute encoders |
| Resolution (wire draw + encoder) | 0.002 mm 1) 2) |
| Repeatability | â¤Â 5 mm 3) |
| Linearity | ⤠± 2 mm 3) |
| Hysteresis | â¤Â 10 mm 3) |
Interfaces
| Communication interface | PROFINET |
|---|---|
| Programmable/configurable | â |
Electronics
| Connection type | Male connector, 1x, M12, 4-pin, axialFemale connector, 2x, M12, 4-pin, axial |
|---|---|
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
| Power consumption | â¤Â 3 W (without load) |
Mechanics
| Weight | 16.7Â kg |
|---|---|
| Measuring wire material | Highly flexible stranded steel 1,4401Â stainless steel V4A |
| Measuring wire diameter | 1.35Â mm |
| Weight (measuring wire) | 7.1Â g/m |
| Housing material, wire draw mechanism | Aluminum (anodized), aluminum die cast (nickel-plated) |
| Spring return force | 18Â NÂ ... 37Â NÂ 1) |
| Length of wire pulled out per revolution | 491.5Â mm |
| Life of wire draw mechanism | Typ. 1,000,000 cycles 2) 3) |
| Actual wire draw length | 50.2Â m |
| Wire acceleration | 18 m/s² |
| Operating speed | 4Â m/s |
| Mounted encoder | AFM60 PROFINET, AFM60A-S1NB018X12, 1059040 |
| Mounted mechanic | MRA-F190-150D2, 6028630 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3Â 1) |
|---|---|
| Enclosure rating | IP31, mounted mechanicIP67, Encoder (IECÂ 60529)Â 2) |
| Operating temperature range | â30 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270590 |
|---|---|
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27270613 |
| ECLASS 11.0 | 27270503 |
| ECLASS 12.0 | 27270503 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
