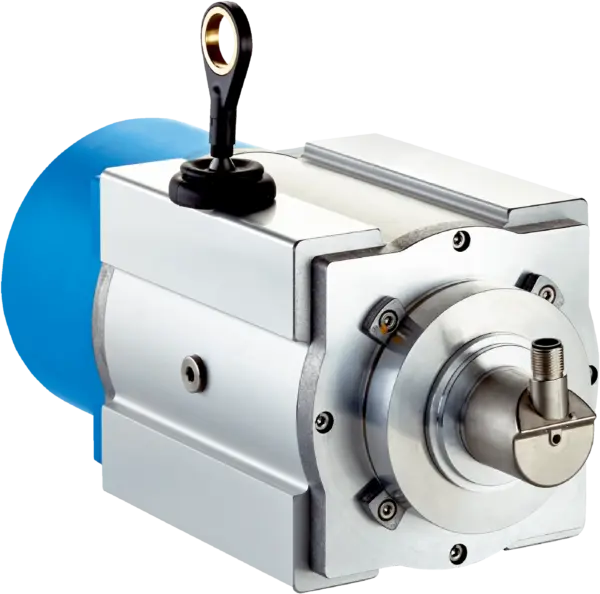

Wire draw encoders | HighLine | BTF13-Q1RM2061 | Measuring range: 0 m … 20 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V … 30 V | Connection type:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

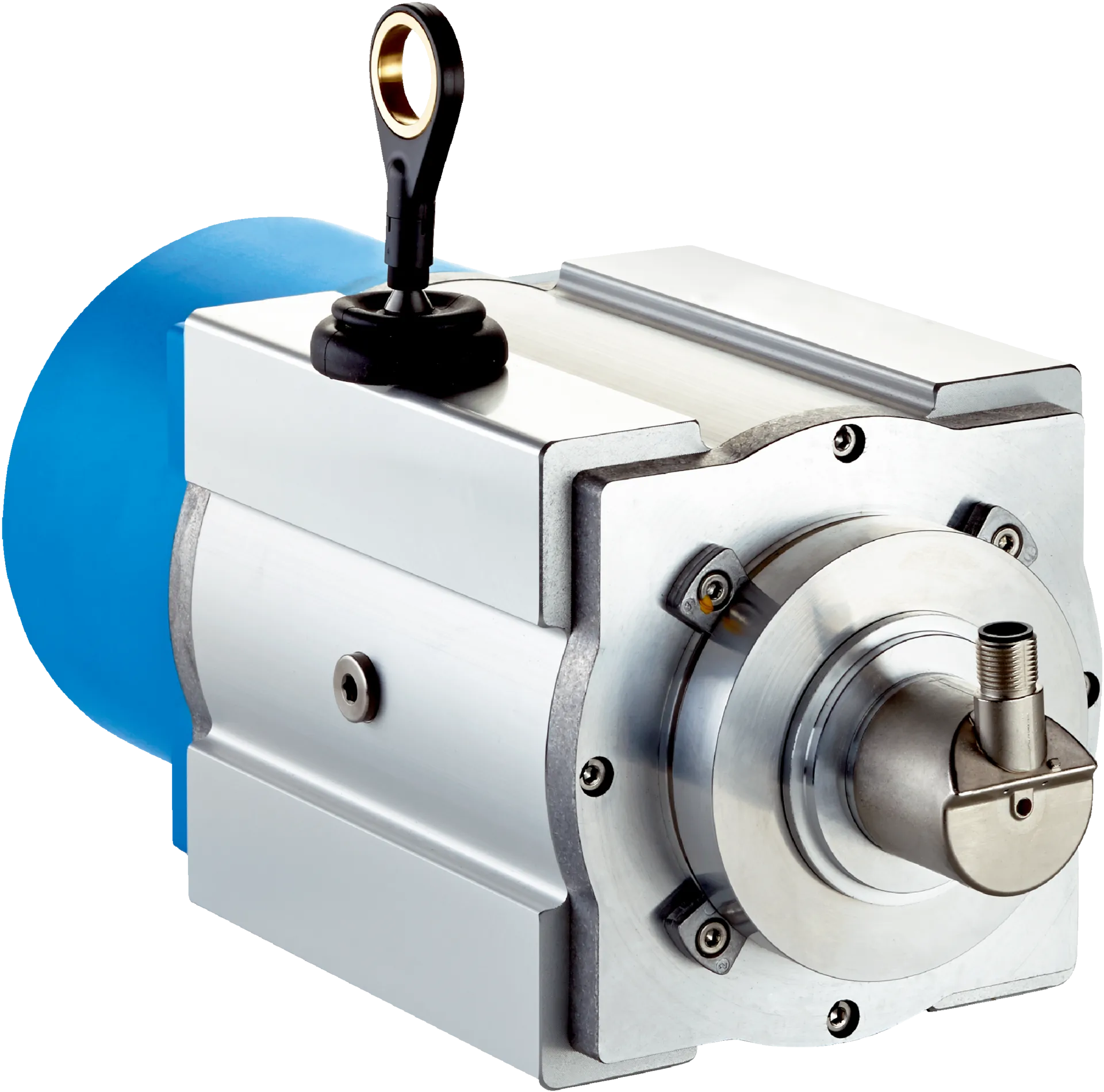

Wire draw encoders | HighLine | BTF13-Q1RM2061 | Measuring range: 0 m … 20 m | Communication interface: IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) | Supply voltage: 18 V … 30 V | Connection type: Male connector, M12, 4-pin, universal | Mounted encoder: AHM36 IO-Link Basic, AHM36B-S3QC012X12, 1092014 | Mounted mechanic: MRA-F130-120D1, 6028628 | Programmable/configurable: yes
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 240Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Measurement range | 0 m ... 20 m |
|---|---|
| Encoder | Absolute encoders |
| Resolution (wire draw + encoder) | 0.08 mm 1) 2) |
| Repeatability | â¤Â 2 mm 3) |
| Linearity | ⤠± 2 mm 3) |
| Hysteresis | â¤Â 5 mm 3) |
Interfaces
| Communication interface | IO-Link / IO-Link V1.1 / COM3 (230,4 kBaud) |
|---|---|
| Programmable/configurable | â |
Electronics
| Connection type | Male connector, M12, 4-pin, universal |
|---|---|
| Supply voltage | 18Â VÂ ... 30Â V |
| Power consumption | â¤Â 1.5 W (without load) |
Mechanics
| Weight | 5.12Â kg |
|---|---|
| Measuring wire material | Highly flexible stranded steel 1,4401Â stainless steel V4A |
| Measuring wire diameter | 0.81Â mm |
| Weight (measuring wire) | 2.6Â g/m |
| Housing material, wire draw mechanism | Aluminum (anodised), plastic |
| Spring return force | 10Â NÂ ... 20Â NÂ 1) |
| Length of wire pulled out per revolution | 332.4Â mm |
| Life of wire draw mechanism | Typ. 1,000,000 cycles 2) 3) |
| Actual wire draw length | 20.2Â m |
| Wire acceleration | 30 m/s² |
| Operating speed | 6Â m/s |
| Mounted encoder | AHM36 IO-Link Basic, AHM36B-S3QC012X12, 1092014 |
| Mounted mechanic | MRA-F130-120D1, 6028628 |
Ambient data
| EMC | According to ENÂ 61000-6-2, ENÂ 61000-6-3 and ENÂ 61131-9 |
|---|---|
| Enclosure rating | IP64, mounted mechanicIP65, Encoder (IECÂ 60529) |
| Operating temperature range | â20 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270590 |
|---|---|
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27270613 |
| ECLASS 11.0 | 27270503 |
| ECLASS 12.0 | 27270503 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
