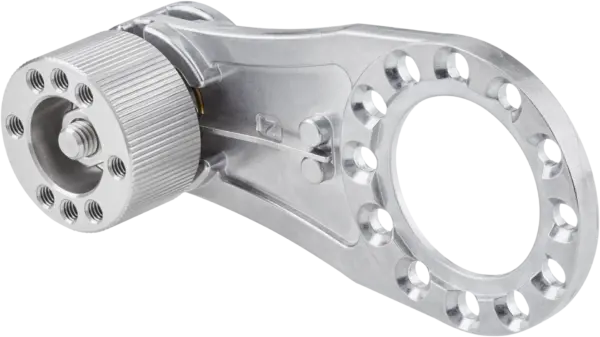

Sick BEF-MWS075-ARM

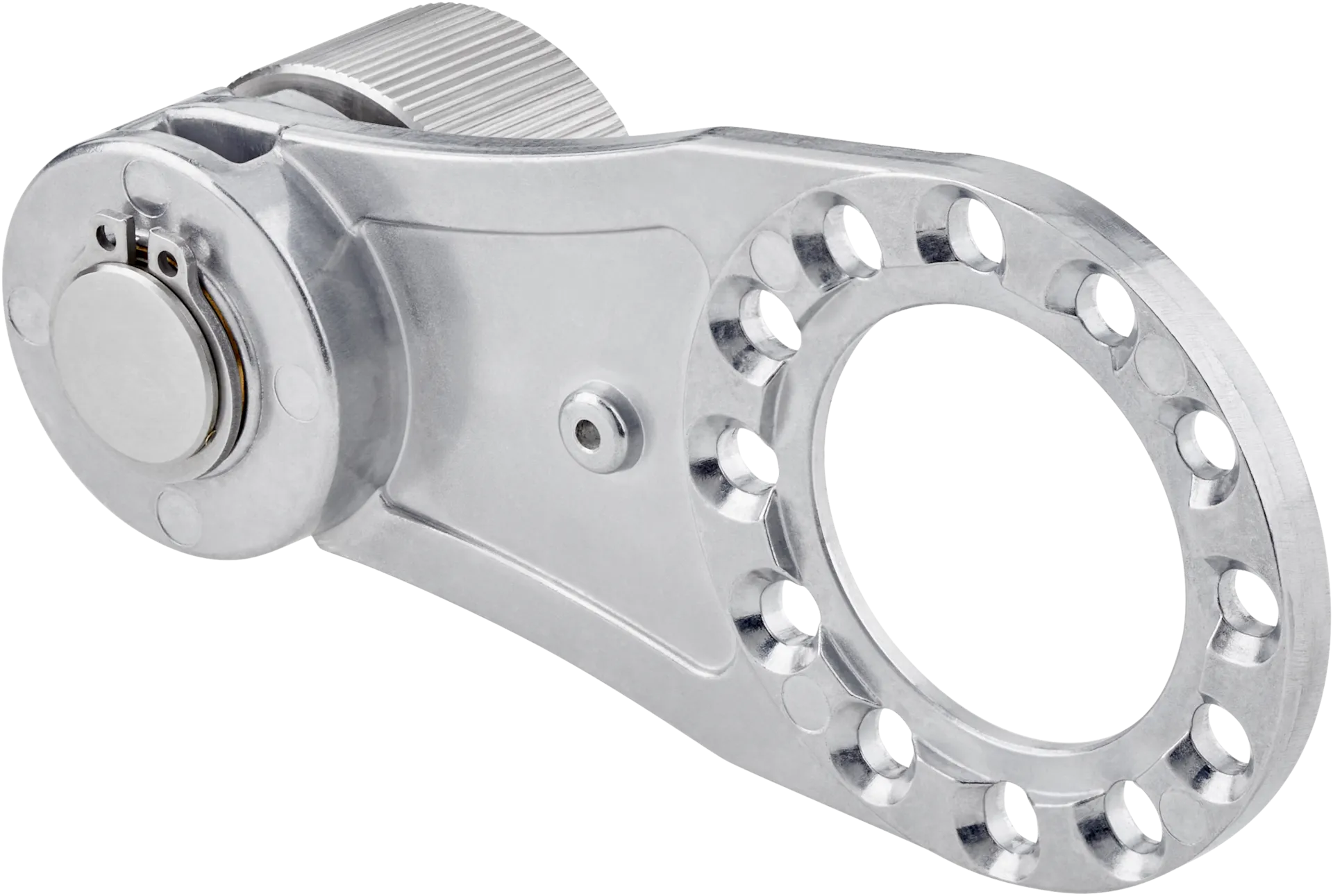

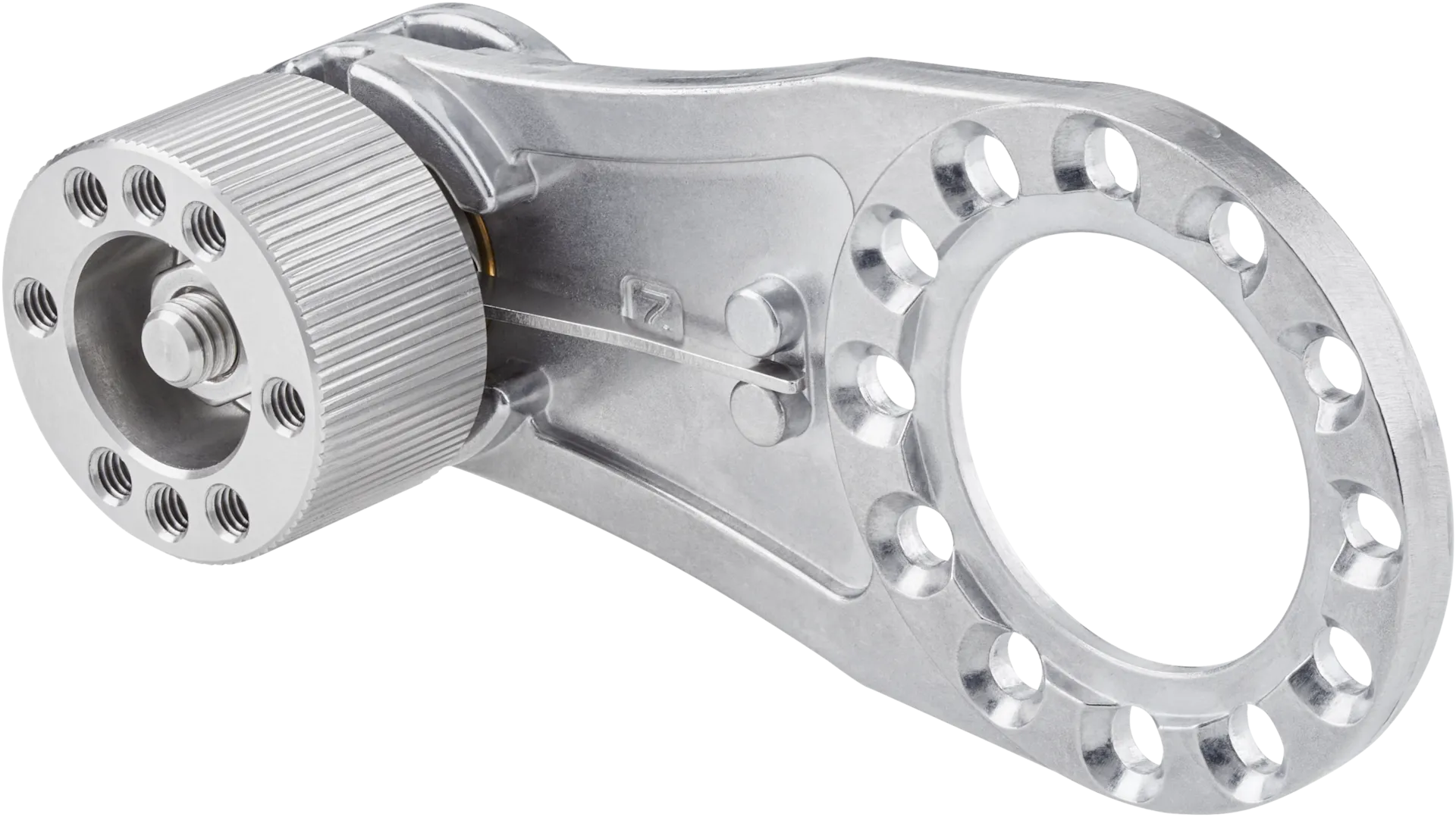

Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MWS075-ARM | Product segment: Measuring wheels and measuring wheel mechanics | Product family: Measuring wheel mechanics | Description: Spring arm for linear measurement with contact, spring contact pressure manually adjustable without tools in 6 increments of 4¬N from 0 N … 24¬N, can be combined with separately available encoders and measuring wheels. | Items supplied: MWS120 spring arm (part number: 2118239), 3 pcs. M4 x 16 cylinder head screws for adapter or encoder mounting | Suitable for: MWS075, encoder for mounting: Ø 60 mm face mount flange encoder with mechanical type “S4” = Ø10 mm x 19 mm , and adapter flange (part no.: 2145869 ), DBS60, DFS60, AFS60 AFM60 Ø 36 mm face mount flange encoder with mechanical type “SC” = Ø10 mm x 24 mm, and adapter flange (part no.: 2145180), AHS/AHM36 Ø50 mm face mount flange encoder with mechanical type “S5” = Ø8 mm x 15,5 mm, no adapter flange required, DBS50 MWS075 mounting bracket (BEF-WF-MWS075, 2145906) Attachable measuring wheels: measuring wheel: Ø10 mm, measuring wheel circumference: 200 mm & 300 mm
