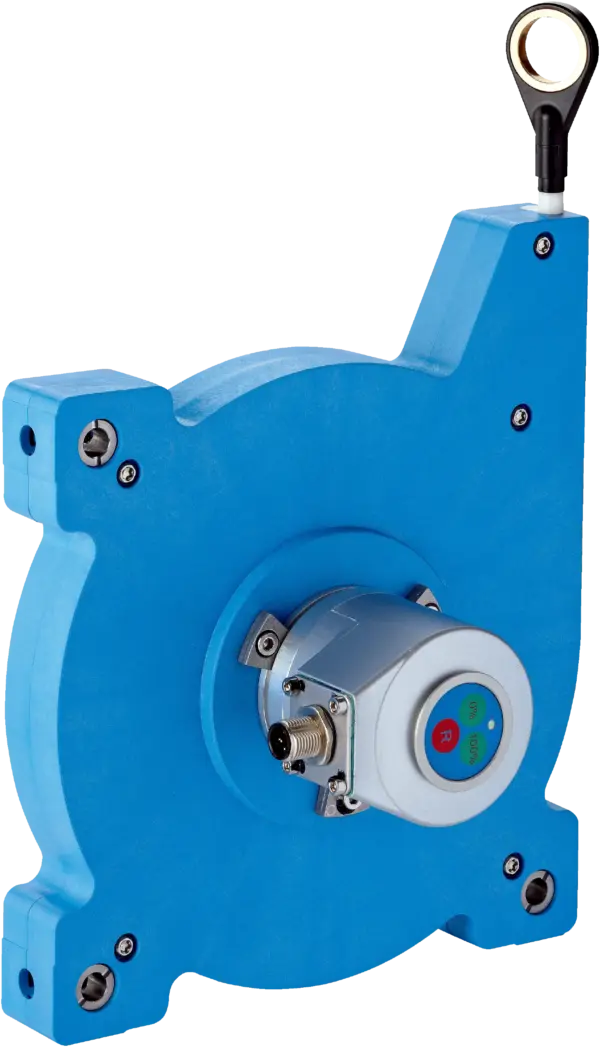

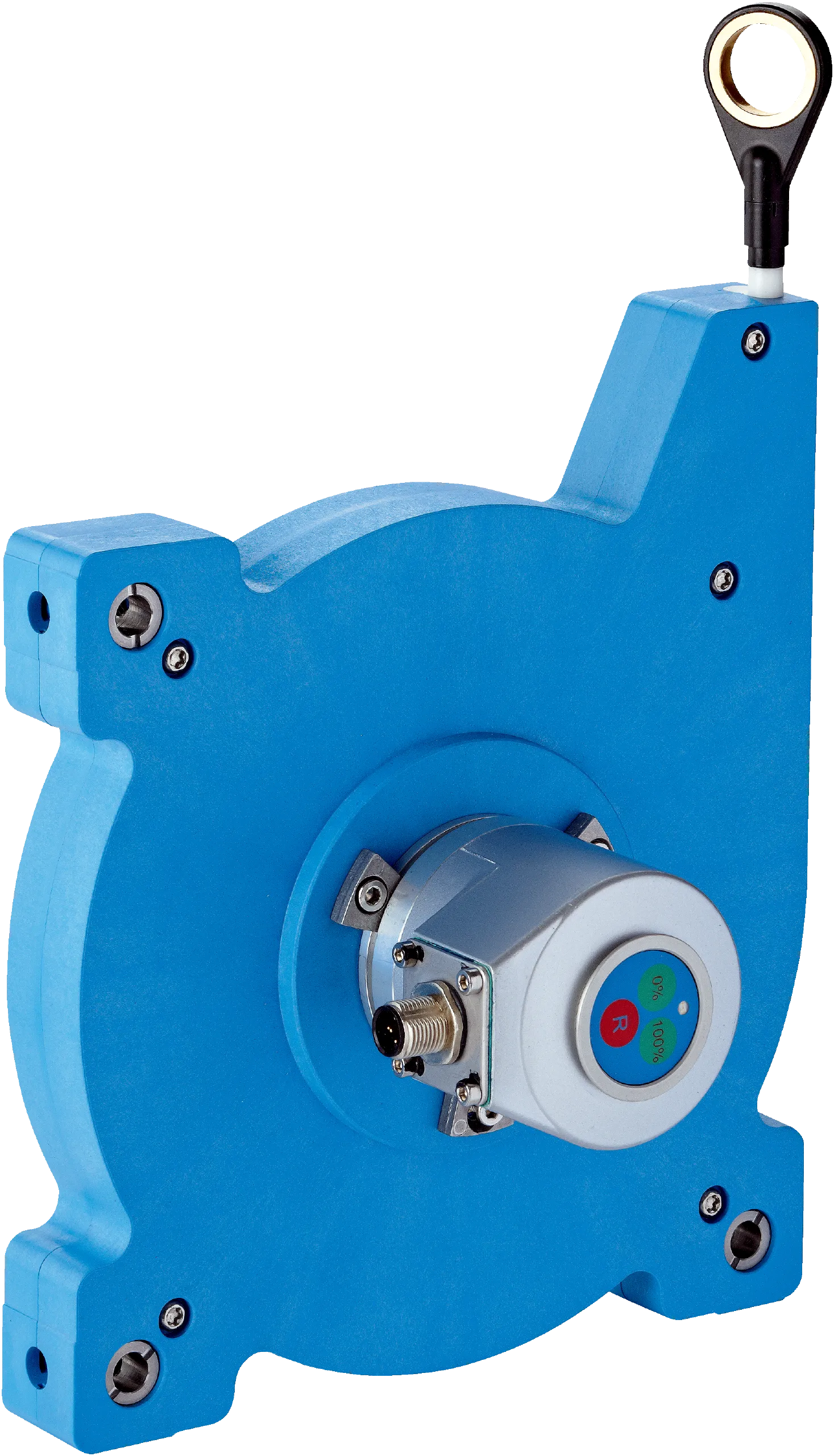

Wire draw encoders | EcoLine | BCG19-K1EM10PP | Measuring range: 0 m … 10 m | Communication interface: Analog / Current / 4…20 mA | Supply voltage: 18 V DC … 33 V DC | Connection type: Male conn…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Wire draw encoders | EcoLine | BCG19-K1EM10PP | Measuring range: 0 m … 10 m | Communication interface: Analog / Current / 4…20 mA | Supply voltage: 18 V DC … 33 V DC | Connection type: Male connector, M12, 5-pin, radial | Mounted encoder: ACM60, ACM60B-S1KE13X06, 6045312 | Mounted mechanic: MRA-G190-110D3, 5326242 | Programmable/configurable: no
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 600Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Measurement range | 0 m ... 10 m |
|---|---|
| Encoder | Absolute encoders |
| Resolution (wire draw + encoder) | 0.05 mm 1) 2) |
| Repeatability | â¤Â 0.2 mm 3) |
| Linearity | ⤠± 2 mm 3) |
| Hysteresis | â¤Â 0.4 mm 3) |
Interfaces
| Communication interface | Analog / Current / 4...20 mA |
|---|
Electronics
| Connection type | Male connector, M12, 5-pin, radial |
|---|---|
| Supply voltage | 18Â VÂ DCÂ ... 33Â VÂ DC |
| Operating current | â¤Â 80 mA |
Mechanics
| Weight | 2.3Â kg |
|---|---|
| Measuring wire material | Highly flexible stranded steel 1,4401Â stainless steel V4A |
| Measuring wire diameter | 0.55Â mm |
| Weight (measuring wire) | 7.1Â g/m |
| Housing material, wire draw mechanism | Plastic, Noryl |
| Spring return force | 9Â NÂ ... 12Â NÂ 1) |
| Length of wire pulled out per revolution | 555Â mm |
| Life of wire draw mechanism | Typ. 1,000,000 cycles 2) 3) |
| Actual wire draw length | 10.2Â m |
| Wire acceleration | 8 m/s² |
| Operating speed | 3Â m/s |
| Mounted encoder | ACM60, ACM60B-S1KE13X06, 6045312 |
| Mounted mechanic | MRA-G190-110D3, 5326242 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-4 |
|---|---|
| Enclosure rating | IP50, mounted mechanicIP67, Encoder (IECÂ 60529)Â 1) |
| Operating temperature range | â30 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270590 |
|---|---|
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27270613 |
| ECLASS 11.0 | 27270503 |
| ECLASS 12.0 | 27270503 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
