Sick BCG08-A1AM0318

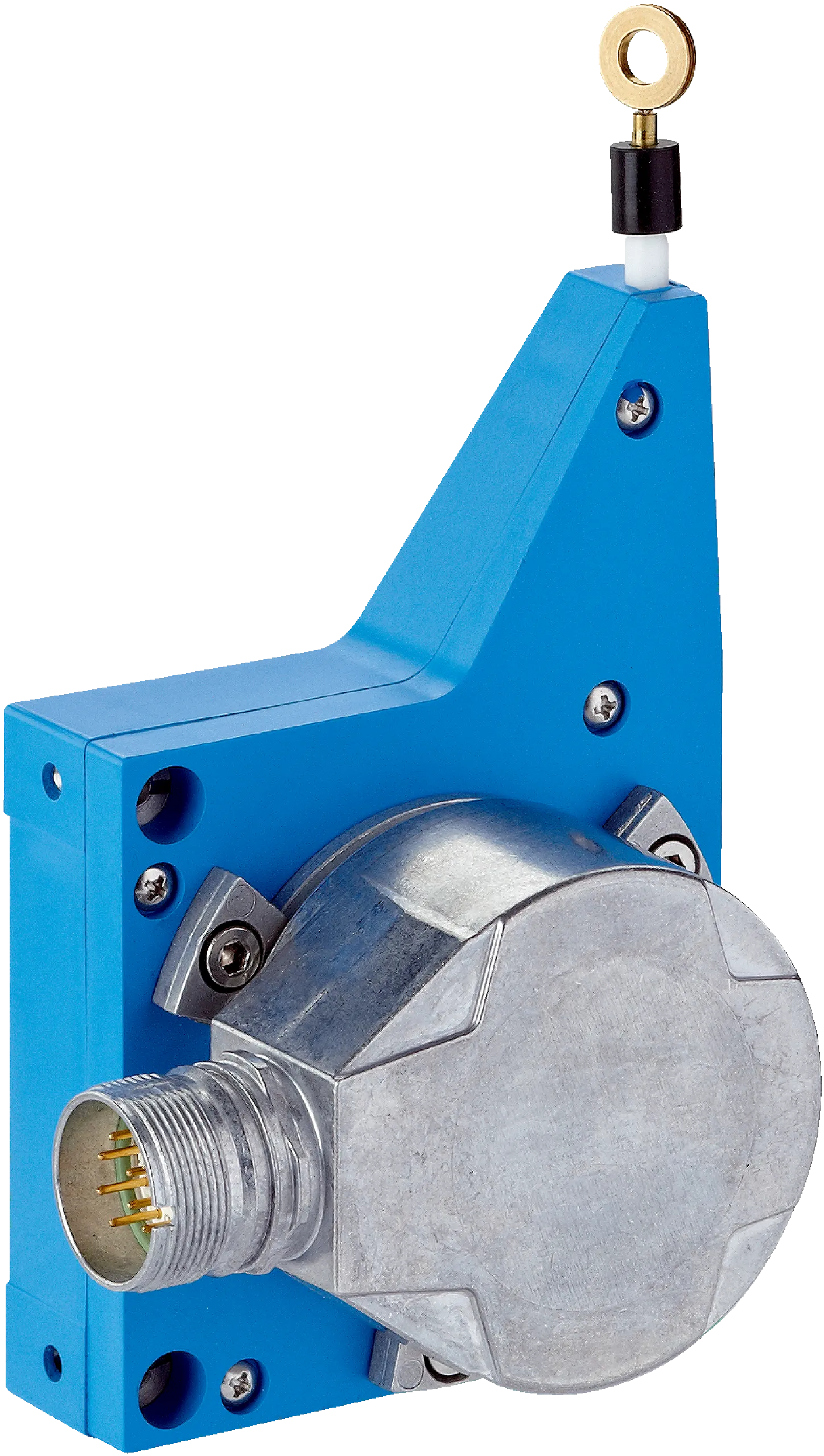

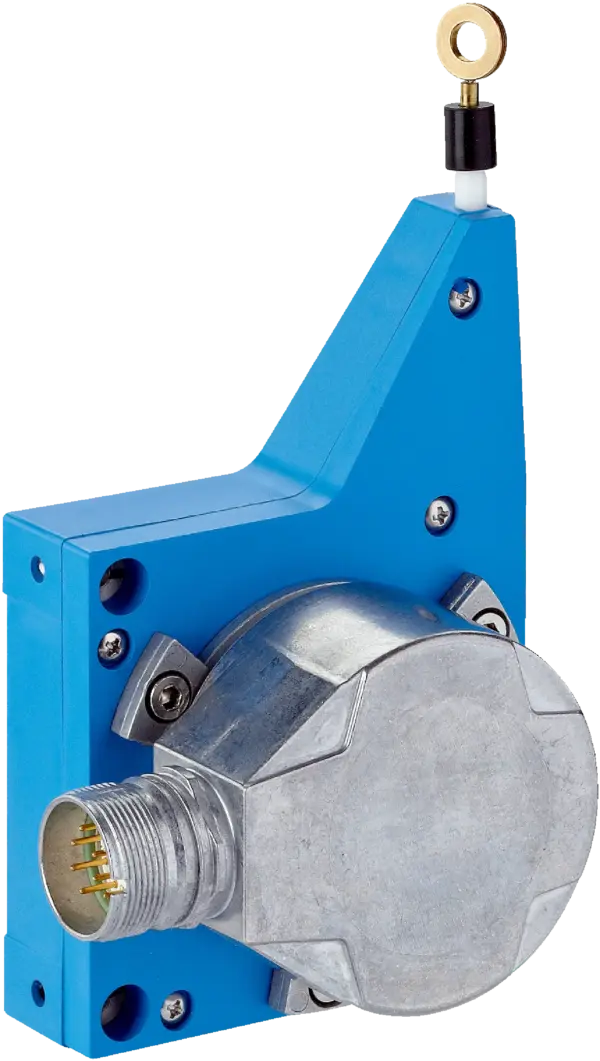

Wire draw encoders | EcoLine | BCG08-A1AM0318 | Measuring range: 0 m … 3 m | Communication interface: SSI | Supply voltage: 4.5 V DC … 32 V DC | Connection type: Male connector, M23, 12-pin, radia…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Wire draw encoders | EcoLine | BCG08-A1AM0318 | Measuring range: 0 m … 3 m | Communication interface: SSI | Supply voltage: 4.5 V DC … 32 V DC | Connection type: Male connector, M23, 12-pin, radial | Mounted encoder: AFM60 SSI, AFM60E-S1AA004096, 1037438 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: no
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 250Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Measurement range | 0 m ... 3 m |
|---|---|
| Encoder | Absolute encoders |
| Resolution (wire draw + encoder) | 0.06 mm 1) 2) |
| Repeatability | â¤Â 0.2 mm 3) |
| Linearity | ⤠± 2 mm 3) |
| Hysteresis | â¤Â 0.4 mm 3) |
Interfaces
| Communication interface | SSI |
|---|
Electronics
| Connection type | Male connector, M23, 12-pin, radial |
|---|---|
| Supply voltage | 4.5Â VÂ DCÂ ... 32Â VÂ DC |
| Power consumption | â¤Â 0.7 W (without load) |
Mechanics
| Weight | 0.55Â kg |
|---|---|
| Measuring wire material | Highly flexible stranded steel 1,4401Â stainless steel V4A |
| Measuring wire diameter | 0.55Â mm |
| Weight (measuring wire) | 1.2Â g/m |
| Housing material, wire draw mechanism | Plastic, Noryl |
| Spring return force | 3.3Â NÂ ... 4.4Â NÂ 1) |
| Length of wire pulled out per revolution | 230Â mm |
| Life of wire draw mechanism | Typ. 1,000,000 cycles 2) 3) |
| Actual wire draw length | 3.2Â m |
| Wire acceleration | 10 m/s² |
| Operating speed | 6Â m/s |
| Mounted encoder | AFM60 SSI, AFM60E-S1AA004096, 1037438 |
| Mounted mechanic | MRA-G080-103D3, 5322778 |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3Â 1) |
|---|---|
| Enclosure rating | IP50, mounted mechanicIP67, Encoder (IECÂ 60529)Â 2) |
| Operating temperature range | 0 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27270590 |
|---|---|
| ECLASS 5.1.4 | 27270590 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270590 |
| ECLASS 8.0 | 27270590 |
| ECLASS 8.1 | 27270590 |
| ECLASS 9.0 | 27270590 |
| ECLASS 10.0 | 27270613 |
| ECLASS 11.0 | 27270503 |
| ECLASS 12.0 | 27270503 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
