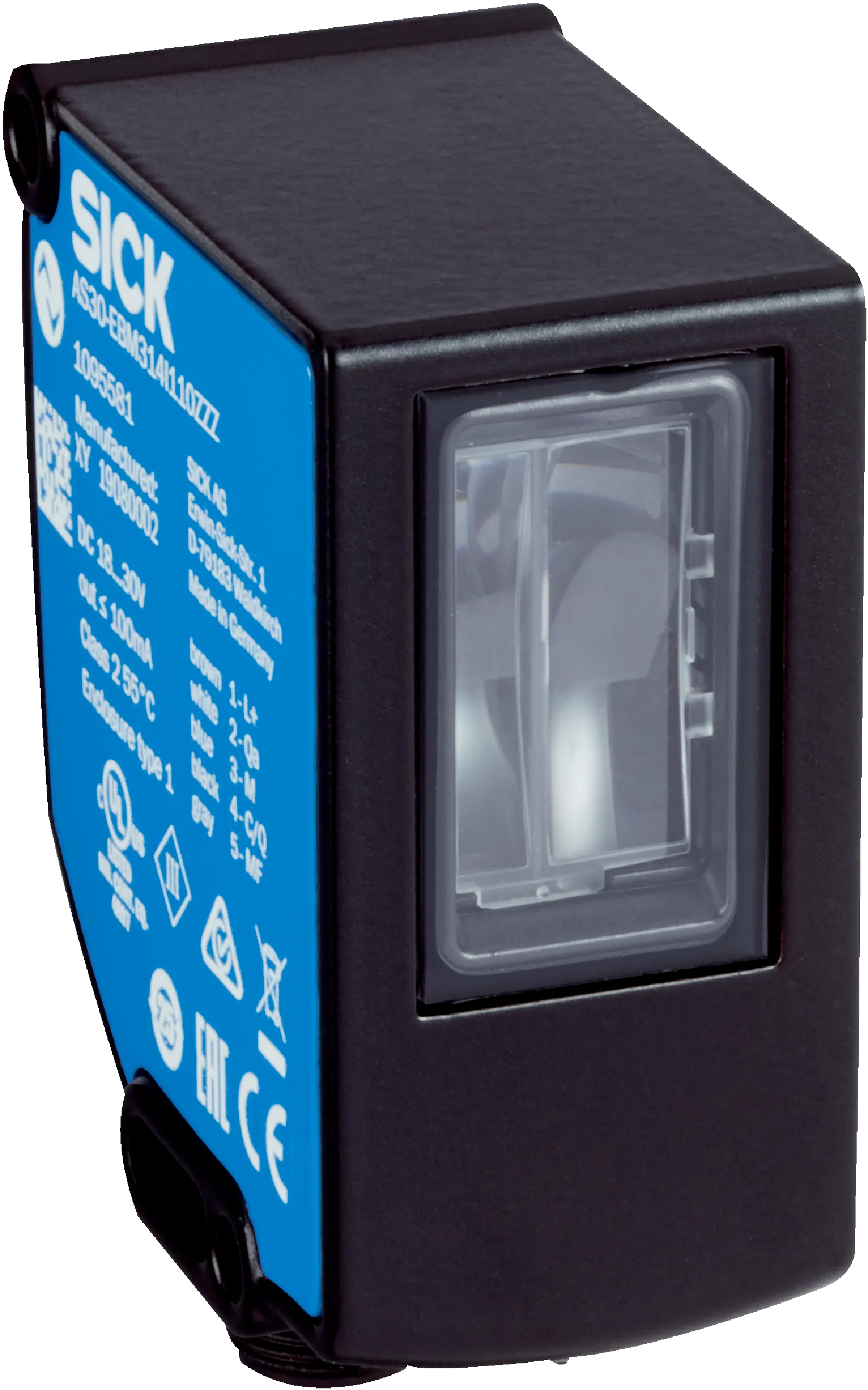

Sick AS30-PBM314I110ZZZ
Array sensors | AS30 | AS30-PBM314I110ZZZ | Communication interface: IO-Link | Sensor principle: Proximity system | Functional principle: Web guiding, positioning | Principle of operation (default): P…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Array sensors | AS30 | AS30-PBM314I110ZZZ | Communication interface: IO-Link | Sensor principle: Proximity system | Functional principle: Web guiding, positioning | Principle of operation (default): Positioning | Light source: LED | Measuring range / sensing distance: 30Â mm / 25Â mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Male connector M12, 5-pin | Repeatability: 0.2 mm | Switching frequency: 500 Hz | Analog output: 4 mAÂ … 20 mA
Specification
Features
| Sensor principle | Proximity system |
|---|---|
| Functional principle | Web guiding, positioning |
| Principle of operation (default) | Positioning |
| Dimensions (W x H x D) | 31 mm x 62 mm x 52.2 mm |
| Sensing distance | ≤ 25 mm |
| Housing design | Rectangular |
| Working range | 20 mm ... 30 mm |
| Measurement range | 30Â mm |
| Minimum detectable object (MDO) | 0.2Â mm |
| Light source | LED, White |
| Wave length | 400 nm ... 700 nm |
| Light spot size | 39 mm x 12.2 mm |
| Repeatability | 0.2 mm 1) |
| Linearity (position value) | ± 2 % |
| Resolution | 0.1Â mm |
| Adjustment | IO-Link, Display |
| Teach-in mode | Edge detectionArea detection |
Mechanics/electronics
| Supply voltage | 18Â VÂ ... 30Â V |
|---|---|
| Ripple | ≤ 5 V 1) |
| Current consumption | <Â 3.1Â WÂ 2) |
| Switching frequency | 500Â Hz |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V |
| Analog output | 4Â mAÂ ... 20Â mA |
| Resolution of analog output | 12Â bit |
| Output rate of analog output | 1Â ms |
| Output current Imax. | <Â 100Â mA |
| Initialization time | 0.48Â s |
| Connection type | Male connector M12, 5-pin |
| Protection class | IIIÂ 3) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 250Â g |
| Housing material | Zinc diecast |
| Optics material | Glass |
Communication interface
| IO-Link | ✔ |
|---|---|
| VendorID | 26 |
| DeviceID HEX | 0x800207 |
| DeviceID DEC | 8389127 |
| Cycle time | >Â 1.1Â ms |
Ambient data
| Ambient operating temperature | –10 °C ... +55 °C |
|---|---|
| Ambient temperature, storage | –25 °C ... +75 °C |
| Shock load | According to IECÂ 60068 |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270906 |
|---|---|
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
