Sick AOS103

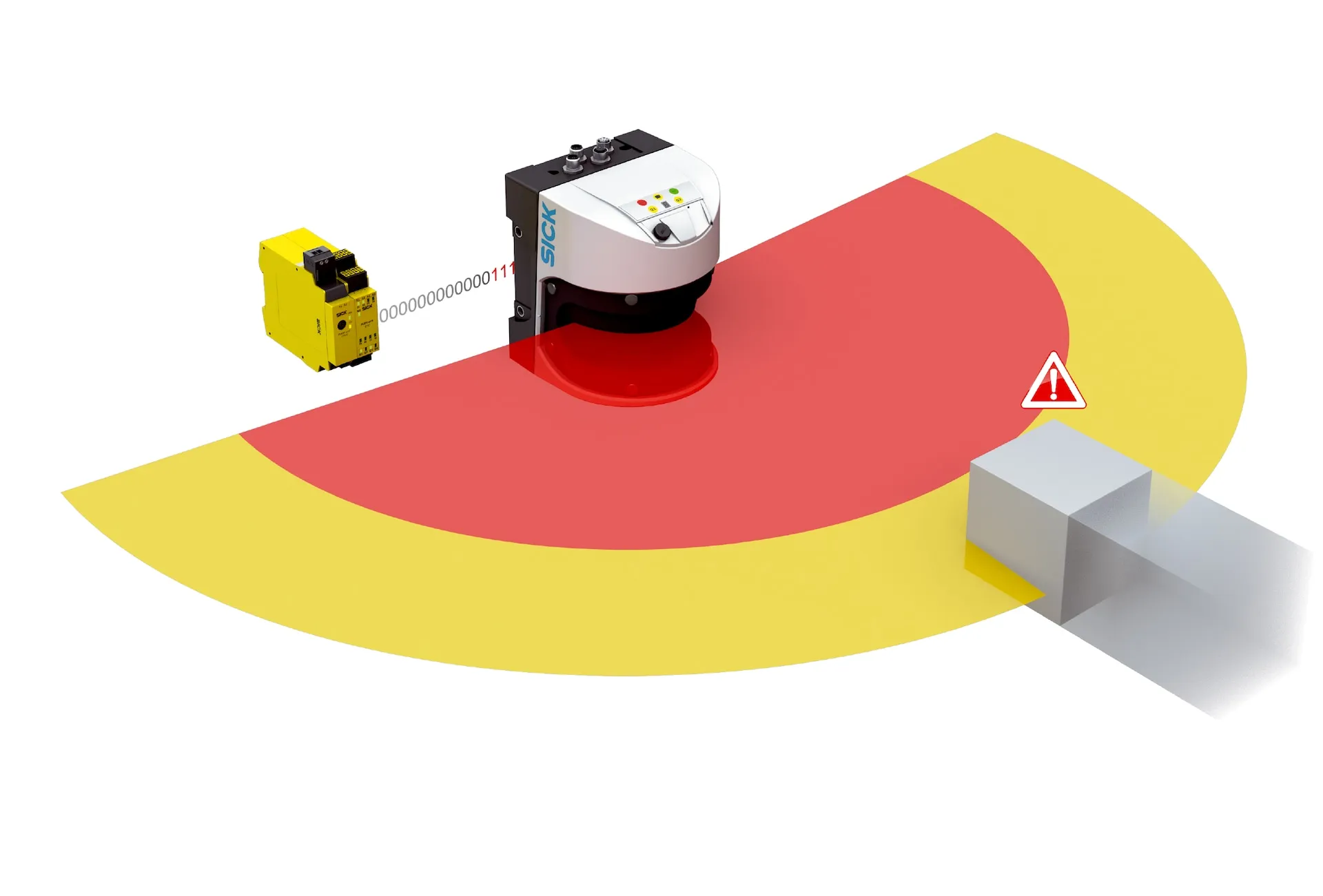

Object detection systems | AOS LiDAR | AOS103 | Control configuration: Area monitoring and collision avoidance | Items supplied: LMS111-10100S01 (3 x), Flexi Soft main module FX3-CPU000000, Flexi Soft…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

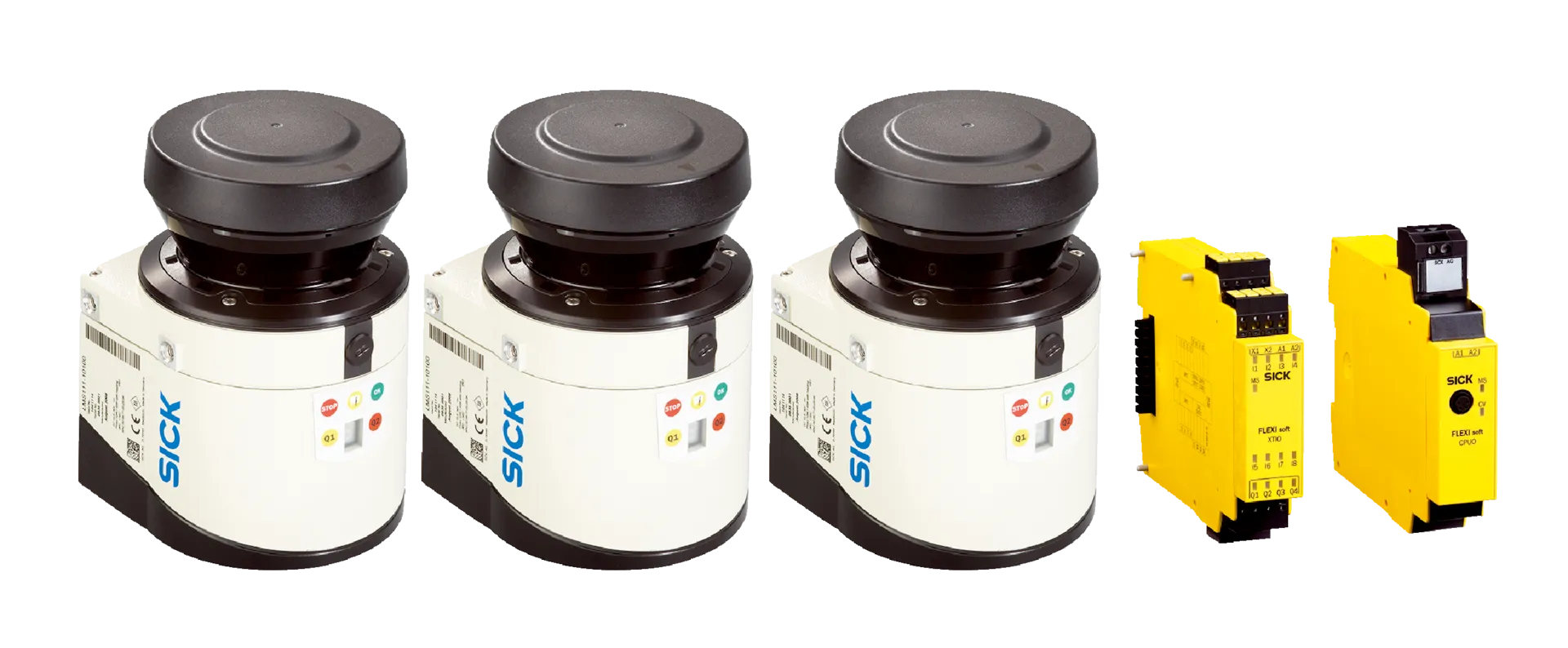

Object detection systems | AOS LiDAR | AOS103 | Control configuration: Area monitoring and collision avoidance | Items supplied: LMS111-10100S01 (3 x), Flexi Soft main module FX3-CPU000000, Flexi Soft system plug FX3-MPL000001, Flexi Soft I/O module FX3-XTIO84002 (2 x), USB configuration cable, USB stick with configuration files, Connection box LMS1xx (3x), Mounting kit for LMS1xx (3x), Ethernet connection cable
Specification
Features
| Sensor | LMS111-10100S01 |
|---|---|
| Number of sensors | 3 |
| Aperture angle | 270° |
| Max. range with 10Â % reflectivity | 18Â m |
| Version | Standard |
Mechanics/electronics
| Housing dimensions (W x D x H) | 105 mm x 102 mm x 162 mm (sensor)67.5 mm x 96.5 mm x 120.6 mm (control with three modules, 22.5 mm each) |
|---|---|
| Weight | 1.1Â kg, Per LMS, without connection box |
| Supply voltage | 24Â VÂ DCÂ 1) |
| Power consumption | 8Â W, Per LMS111 (+ heating 35Â W, per LMS)6.9Â W, Flexi Soft with 2Â x I/O module (without load) |
| Fixing | Mounting kit (sensor), Mounting rail (control) |
| Enclosure rating | IP65/ IP67Â 2)IP20Â 3) |
Performance
| Number of laserscanners | 3 |
|---|---|
| Response time | 240Â ms |
Interfaces
| Configuration interface | Ethernet (sensor), USB (control) |
|---|---|
| Output data | Alarm via control signalWarning field intrusion, stop field intrusionSystem test errorContamination warning |
Ambient data
| Ambient operating temperature | â30 °C ... +50 °C, Sensorâ25 °C ... +55 °C, Control |
|---|---|
| Ambient temperature, storage | â30 °C ... +70 °C 1)â25 °C ... +70 °C 2) |
| Ambient light immunity | 40,000Â lx |
| Standard | IECÂ 60068-2-6:2007-12 |
| Shock resistance | IECÂ 60068-2-27:2008-03 |
General notes
| Items supplied | LMS111-10100S01 (3Â x)Flexi Soft main module FX3-CPU000000Flexi Soft system plug FX3-MPL000001Flexi Soft I/O module FX3-XTIO84002 (2Â x)USB configuration cableUSB stick with configuration filesConnection box LMS1xx (3x)Mounting kit for LMS1xx (3x)Ethernet connection cable |
|---|---|
| Note on use | The AOS LiDAR object detection system is not a safety device for human protection and it therefore does not comply with any safety standards. For safety applications,please contact SICK AG. |
Classifications
| ECLASS 5.0 | 27281001 |
|---|---|
| ECLASS 5.1.4 | 27280190 |
| ECLASS 6.0 | 27280190 |
| ECLASS 6.2 | 27280190 |
| ECLASS 7.0 | 27280190 |
| ECLASS 8.0 | 27280190 |
| ECLASS 8.1 | 27280190 |
| ECLASS 9.0 | 27280190 |
| ECLASS 10.0 | 27280190 |
| ECLASS 11.0 | 27280190 |
| ECLASS 12.0 | 27280190 |
| UNSPSC 16.0901 | 43211701 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
