Sick ANM58B-BGNNA000000000AXX018X16
Absolute encoders | ANS/ANM58 | ANM58B-BGNNA000000000AXX018X16 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 16 bit (262,144 x 65,536) | Mechanical design: Blind hollow shaf…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

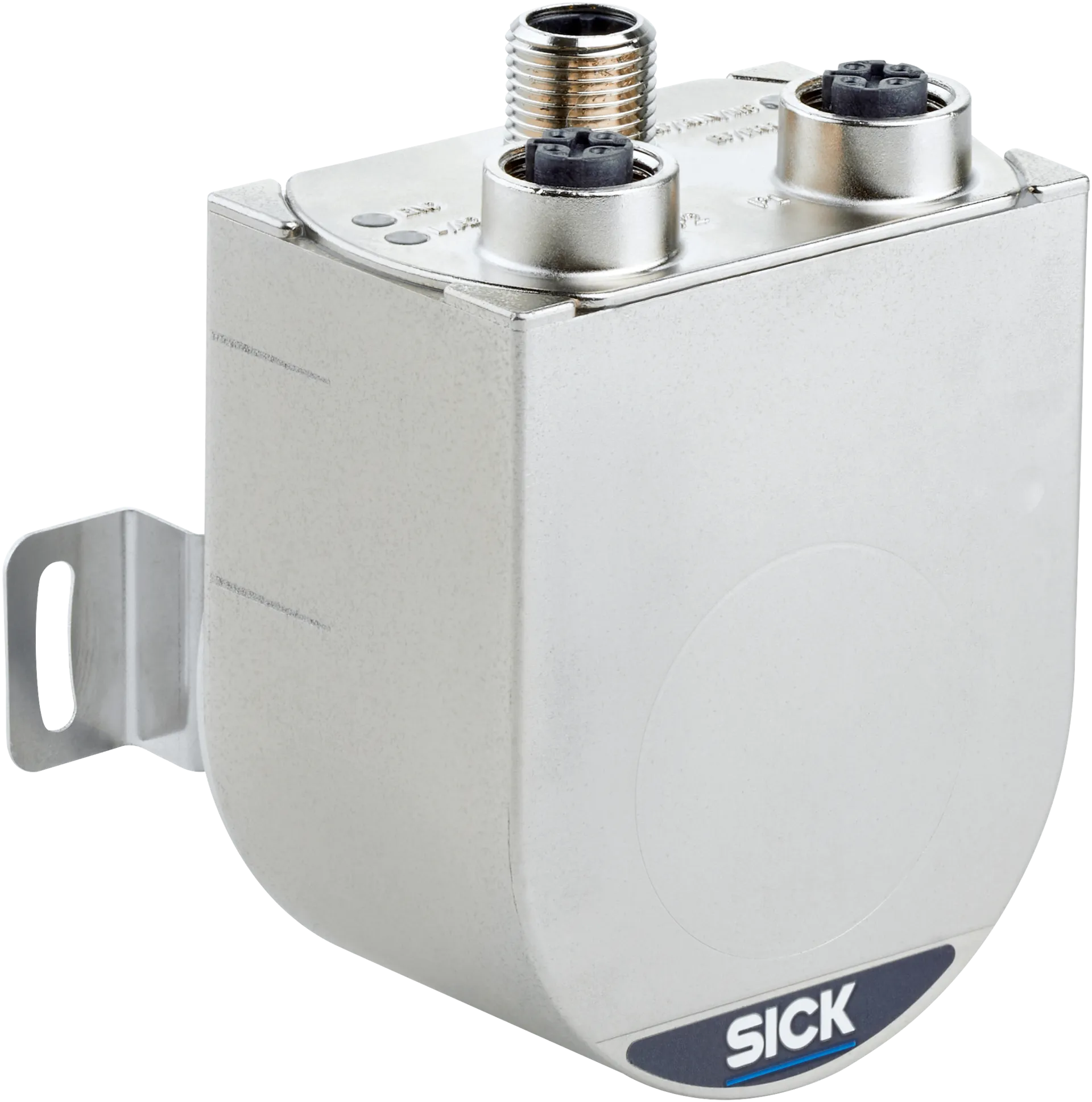

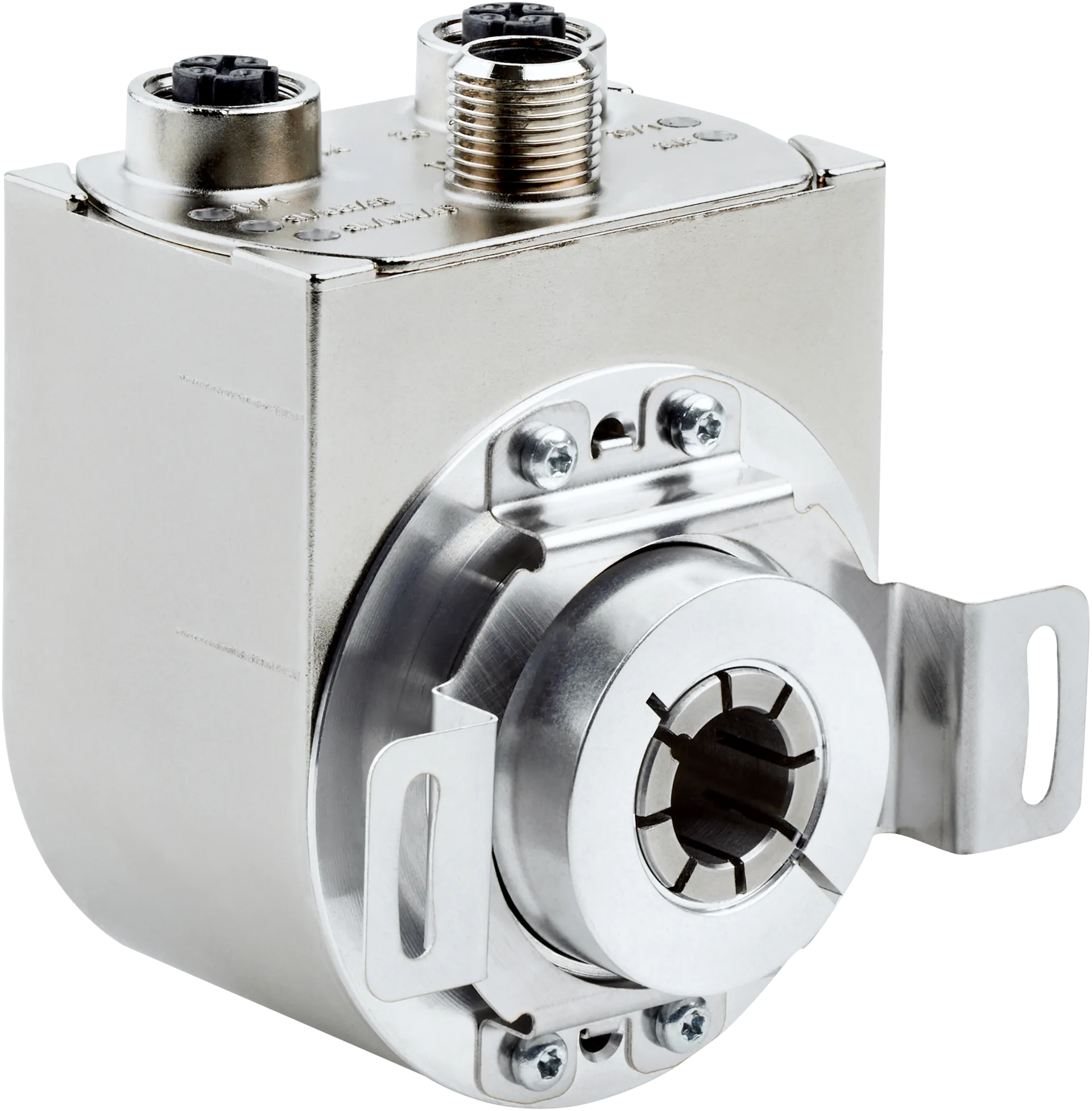

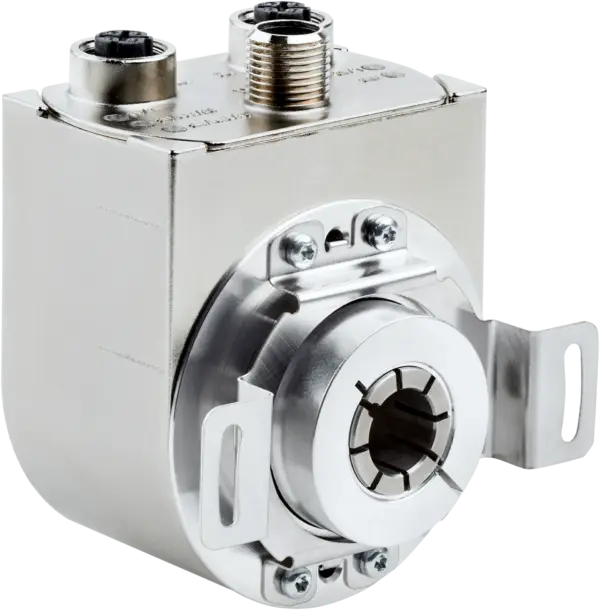

Absolute encoders | ANS/ANM58 | ANM58B-BGNNA000000000AXX018X16 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 16 bit (262,144 x 65,536) | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, radial, Female connector, 2x, M12, 4-pin, radial | Programming interface: Over PLC-Engineering-Tool
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 165Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Number of steps per revolution (max. resolution) | 262,144Â (18Â bit) |
|---|---|
| Number of revolutions | 65,536Â (16Â bit) |
| Max. resolution (number of steps per revolution x number of revolutions) | 18 bit x 16 bit (262,144 x 65,536) |
| Error limits G | 0.03° |
| Repeatability standard deviation Ïr | 0.002° |
Interfaces
| Communication interface | PROFINET |
|---|---|
| PROFINET version | PROFINET Version 2.3 |
| Encoder profile | V4.2 |
| Transmission medium | CAT-5e cable |
| Initialization time | 5Â s |
| Cycle time | ⥠1 ms |
| Process data | Position, speed, Encoder status (errors, warnings) |
| Parameterising data | Number of steps per revolutionTotal measuring rangePRESETDirection of rotationFilter for speed calculationUnit for output of the speed valueRound axis functionality |
| Available diagnostics data | Minimum and maximum temperatureMaximumspeedPower-on counterOperatinghours counter power-on/motionCounter of direction changes/number of movements cw/number of movements ccwConfigurable limit values with limit value monitoring |
| Status information | Via status LED |
Electronics
| Connection type | Male connector, 1x, M12, 4-pin, radial 1)Female connector, 2x, M12, 4-pin, radial 2) |
|---|---|
| Supply voltage | 10Â ... 32Â V |
| Power consumption | â¤Â 3 W |
| Reverse polarity protection | â |
| Short-circuit protection | â |
Mechanics
| Mechanical design | Blind hollow shaft |
|---|---|
| Shaft diameter | 14Â mm |
| Characteristics of the shaft | Front clamp |
| Flange type / stator coupling | Stator coupling, 2-sided, screw hole circle 63Â mm |
| Weight | Approx. 0.5 kg |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Material, stator coupling | Stainless steel |
| Housing material | Zinc die-cast with copper-nickel coating |
| Start up torque | 1.5 Ncm (+20 °C) |
| Operating torque | < 0.6 Ncm (+20 °C) |
| Permissible movement static | ± 0.3 mm (radial)± 0.5 mm (axial) |
| Permissible movement dynamic | ± 0.05 mm (radial)± 0.1 mm (axial) |
| Operating speed | â¤Â 6,000 minâ»Â¹ |
| Moment of inertia of the rotor | 125 gcm² |
| Bearing lifetime | Lmnr 30 x 10^9 revolutions 1) |
| Angular acceleration | â¤Â 300,000 rad/s² |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3 |
|---|---|
| Enclosure rating | IP65 (IECÂ 60529) |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â40 °C ... +85 °C 1) |
| Storage temperature range | â40 °C ... +100 °C, without package |
| Resistance to shocks | 100Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 10 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) 2) |
| Operating height (above sea level) | â¤Â 3,000 m (70 kPa) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Profinet certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270502 |
|---|---|
| ECLASS 5.1.4 | 27270502 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 8.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 10.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
