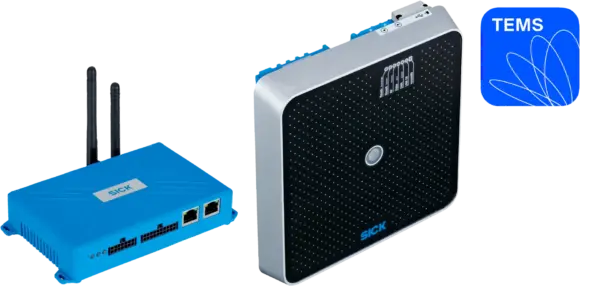

Sick ALDIS-R30011AC
Localization systems | Automated Load Detect Ident System | ALDIS-R30011AC | Fields of application: Indoor and outdoor applications | Interfaces: GPS, modem | Network coverage: North America, Latin Am…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

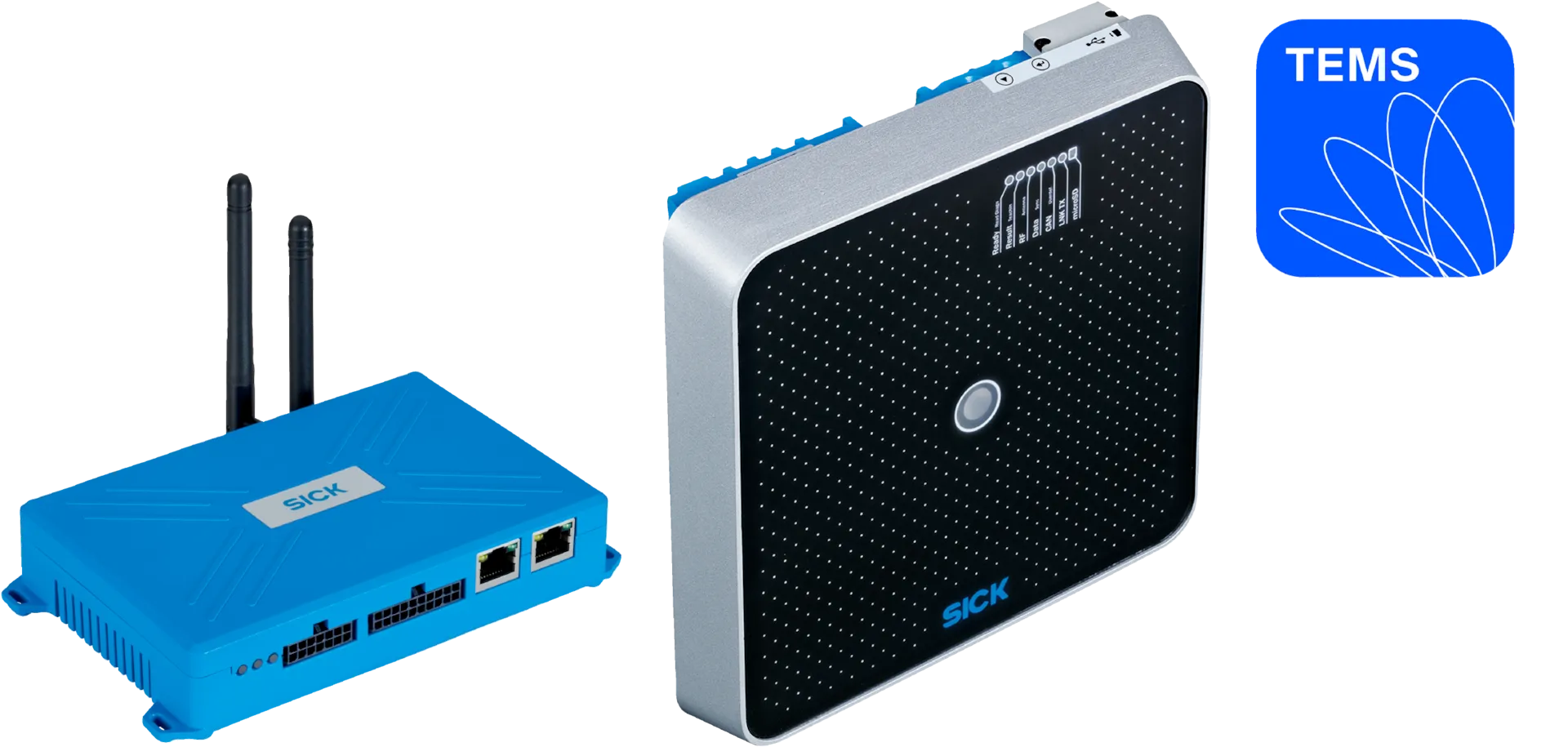

Localization systems | Automated Load Detect Ident System | ALDIS-R30011AC | Fields of application: Indoor and outdoor applications | Interfaces: GPS, modem | Network coverage: North America, Latin American | Items supplied: TDC-E210AC with ALDIS software module, RFID read/write device with integrated RFU630 antenna
Specification
Features
| Product category | Gateway and cloud solutions |
|---|---|

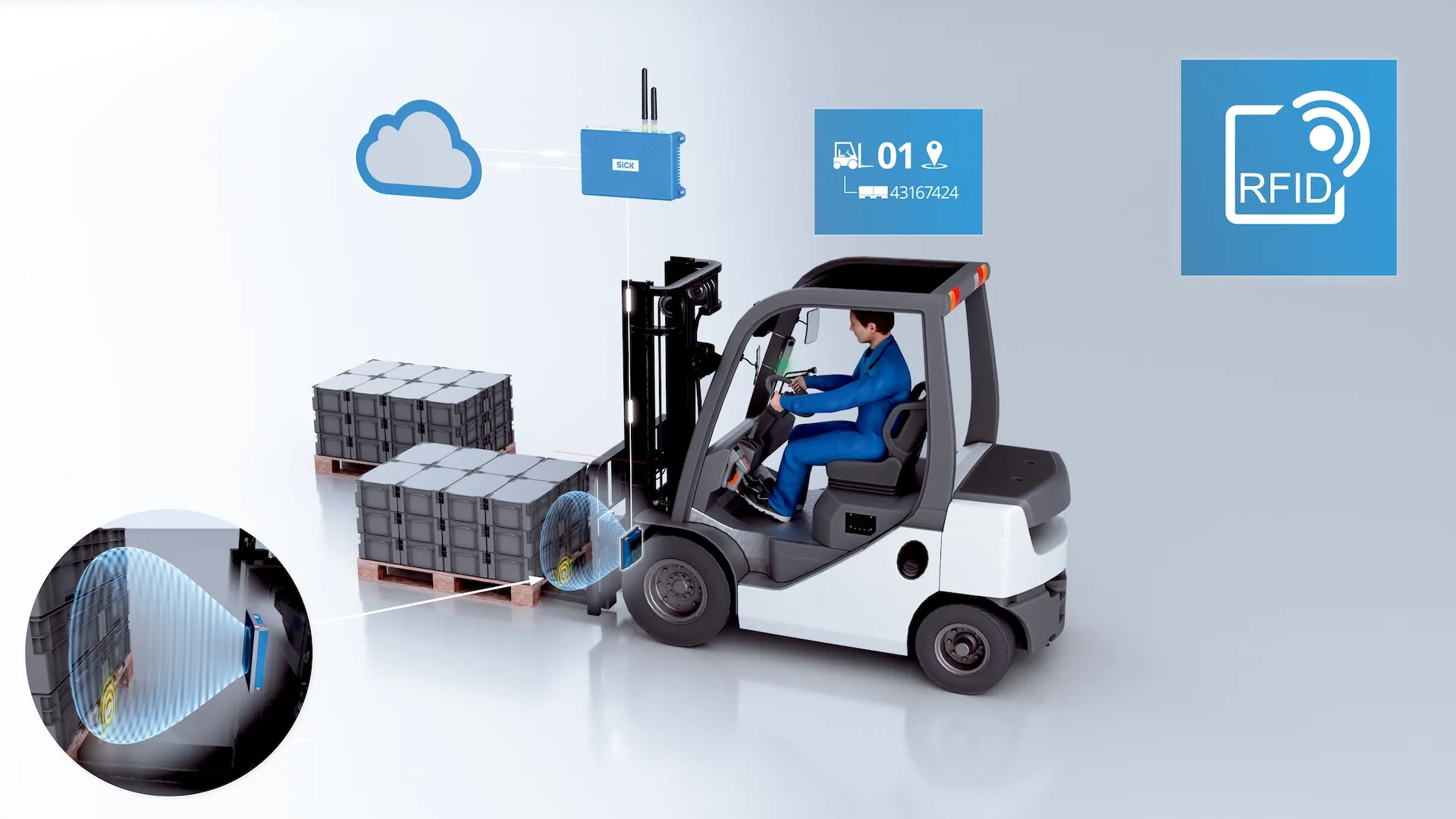

| Application | Indoor and outdoor applications |
| Identification technology | RFID |
| Sensor | Acceleration sensor, Magnetometer, Thermometers |
| Scanning range | ≤ 10 m |
| Optical indicators | 3Â (LED) status displays |
| Internal computer | 1Â GB, DD3, dual-core Cortex-A7 with Cortex-M4 co-processor |
| Internal memory | 16Â GB |
| Operating system | Linux and Micro Services |
| Ecosystem | Docker |
| User interface | TDC-E Device Manager, User Manager, Interface Manager, Portainer, TEMS Web interface |
| Data protocol | MQTT, REST API |
| Data format | JSON |
| Connectivity | Mobile communication (4G)WLANLAN |
| Mobile network | Global coverage, LTE TDD: 1900/2300/2500/2600, LTE-FDD: 700/800/850/900/1700/1800/1900/2100/2600, UMTS: 850/900/1700/1900/2100 |
| Region of use | North America, Latin American |
| Housing material | Polyamide PA6 |
| Housing color | Light blue (RAL 5012) |
| Housing dimensions (W x D x H) | 162 mm x 32 mm x 128 mm |
| Items supplied | TDC-E210AC with ALDIS software module, RFID read/write device with integrated RFU630 antenna |
Mechanics/electronics
| Supply voltage | 24Â VÂ DC (9Â VÂ DCÂ ... 36Â VÂ DC) |
|---|---|
| Power consumption | 2.4Â W |
| Enclosure rating | IP20 (according to DINÂ ENÂ 60529) |
Interfaces
| Ethernet | ✔ (2) |
|---|---|
| Data transmission rate | 10 Mbit/s ... 1,000 Mbit/s |
| Electrical connection | RJ45 |
| Wireless LAN | ✔ |
| Data transmission rate | ≤ 65 Mbit/s, single band 2.4 GHz |
| Protocol | IEEE 802.11Â b/g/n |
| USB | ✔ |
| Serial | ✔ |
| Electrical connection | Micro-Fit (20-pin) |
| CAN bus | ✔ (2) |
| Data transmission rate | 1Â Mbit/s, adjustable |
| Protocol | J1939, CANOpen |
| Electrical connection | Micro-Fit (20-pin) |
| I/O | 6 analog inputs (configurable, current and voltage), 6 digital inputs/outputs (configurable), 2 additional digital inputs, 2 additional digital outputs 1) |
| Optical indicators | 3, LED, status displays |
| Molex | 1x 14Â pin connector (PWR, DIOs and Analog-Inputs) |
| Molex | 1x 20Â pin connector (additional DIOs, 1-wire, RS-232, RS-422/485/SSI, CAN A, CAN B) |
| Ethernet | 1x ETH0 |
| Ethernet | 1x ETH1 |
| USB 2.0 | 1x type A |
| SMA | 2x antenna connector |
| MCX | 1x antenna connector |
| USB | 1 x Micro-B (on board) |
| Configuration interface | Web-Interface, REST API |
Ambient data
| Ambient operating temperature | –20 °C ... +60 °C |
|---|---|
| Ambient temperature, storage | –30 °C ... +70 °C |
| Electromagnetic compatibility (EMC) | ENÂ 303446-1ENÂ 55032ENÂ 55024ENÂ 61000-3-2ENÂ 61000-3-3 |
| Product safety | ENÂ 62311:2008 |
| Radio approval | RED |
Classifications
| ECLASS 12.0 | 19179090 |
|---|
