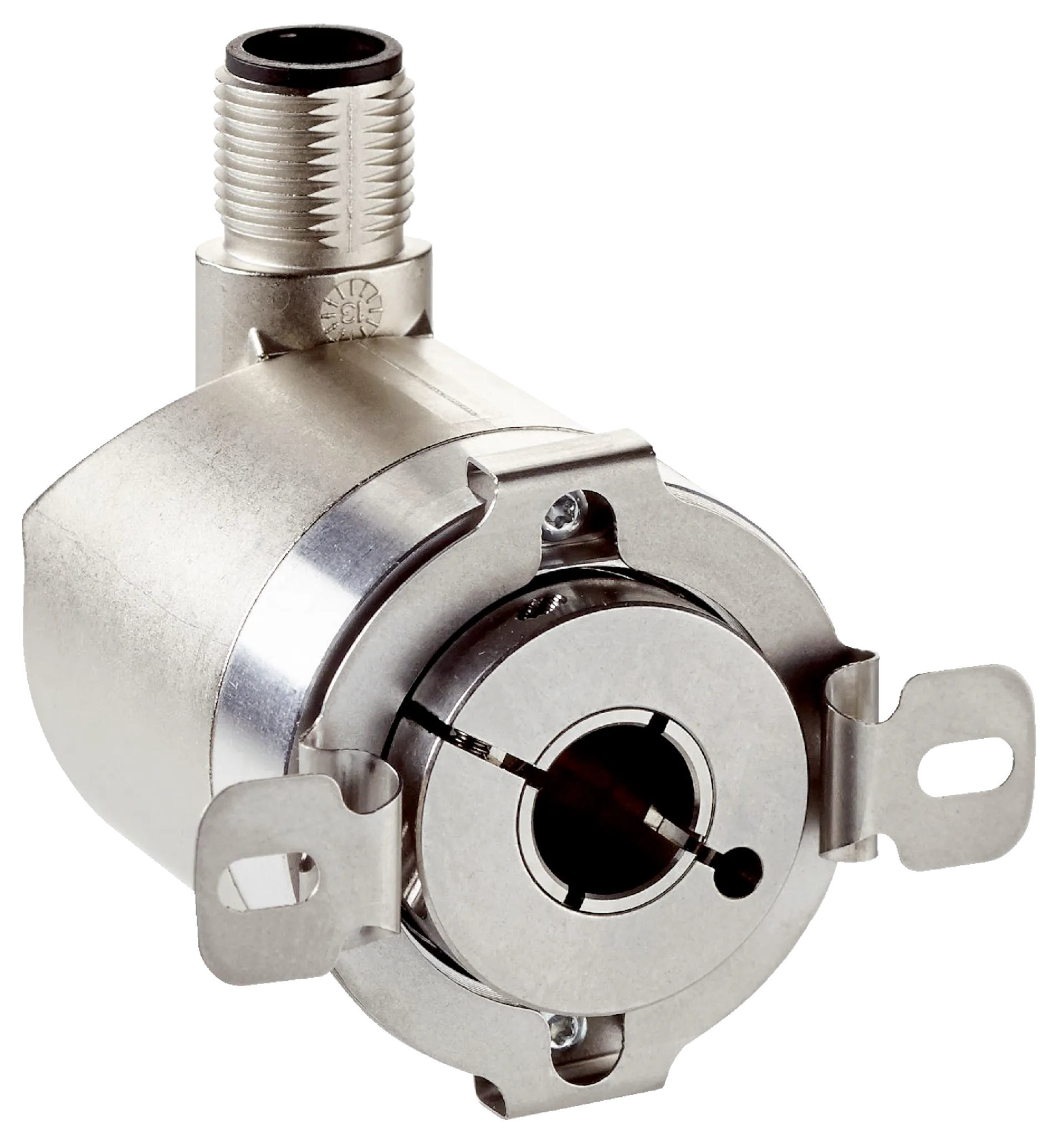

Sick AHM36A-BKQC014x12
Absolute encoders | AHS/AHM36 | AHM36A-BKQC014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Blind hollow shaft 1/4″ (Front c…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Absolute encoders | AHS/AHM36 | AHM36A-BKQC014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Blind hollow shaft 1/4″ (Front clamp) | Communication interface: IO-Link, IO-Link V1.1, programmable | Connection type: Male connector, M12, 4-pin, universal | Programming interface: Over PLC-Engineering-Tool, over SOPAS | Smart Sensor: Efficient communication, Enhanced Sensing, diagnosis
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 240Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Number of steps per revolution (max. resolution) | 16,384Â (14Â bit) |
|---|---|
| Number of revolutions | 4,096Â (12Â bit) |
| Max. resolution (number of steps per revolution x number of revolutions) | 14 bit x 12 bit (16,384 x 4,096) |
| Error limits G | 0.35° (at 20 °C) 1) |
| Repeatability standard deviation Ïr | 0.2° (at 20 °C) 2) |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Communication Interface detail | IO-Link V1.1 |
| Initialization time | 2 s 1) |
| Cycle time | ⤠3.2 ms |
| Smart Sensor | Efficient communication, Enhanced Sensing, diagnosis |
| Process data | Position, speed, electronic cams, limit values, linear position, linear speed, errors and warnings, switching signals on pin 2 |
| Parameterising data | Number of steps per revolutionNumber of revolutionsPRESETCounting directionSampling rate for speed calculationUnit for output of the speed valueRound axis functionalityElectronic cams(2 channels x 8 cams)Limit valuesLinear measuring length per 360°Pin 2 configuration |
| Available diagnostics data | Minimum and maximum temperatureMaximumspeedPower-on counterOperatinghours counter power-on/motionCounter of direction changes/number of movements cw/number of movements ccwMinimum andmaximum operating voltageDistance covered |
| Status information | Via status LED |
| Switching input/Switching output | â |
| Pin 2 input frequency | â¤Â 100 Hz |
| Output frequency pin 2 | â¤Â 100 Hz |
Electronics
| Connection type | Male connector, M12, 4-pin, universal |
|---|---|
| Supply voltage | 18Â ... 30Â V |
| Power consumption | â¤Â 1.5 W |
| Reverse polarity protection | â |
Mechanics
| Mechanical design | Blind hollow shaft |
|---|---|
| Shaft diameter | 1/4â³ |
| Characteristics of the shaft | Front clamp |
| Weight | 0.12 kg 1) |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Zinc |
| Start up torque | < 1 Ncm (+20 °C) |
| Operating torque | < 1 Ncm (+20 °C) |
| Permissible movement static | ± 0.3 mm, ± 0.3 mm (radial, axial) |
| Permissible movement dynamic | ± 0.1 mm (radial)± 0.1 mm (axial) |
| Operating speed | â¤Â 6,000 minâ»Â¹ |
| Moment of inertia of the rotor | 15 gcm² |
| Bearing lifetime | 2.0Â x 10^9 revolutions |
| Angular acceleration | â¤Â 500,000 rad/s² |
Ambient data
| EMC | According to ENÂ 61000-6-2, ENÂ 61000-6-3 and ENÂ 61131-9 |
|---|---|
| Enclosure rating | IP66 (IECÂ 60529)IP67 (IECÂ 60529) |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â40 °C ... +85 °C |
| Storage temperature range | â40 °C ... +100 °C, without package |
| Resistance to shocks | 100Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Classifications
| ECLASS 5.0 | 27270502 |
|---|---|
| ECLASS 5.1.4 | 27270502 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 8.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 10.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| IO-Link certificate | â |
| cTUVus certificate | â |
