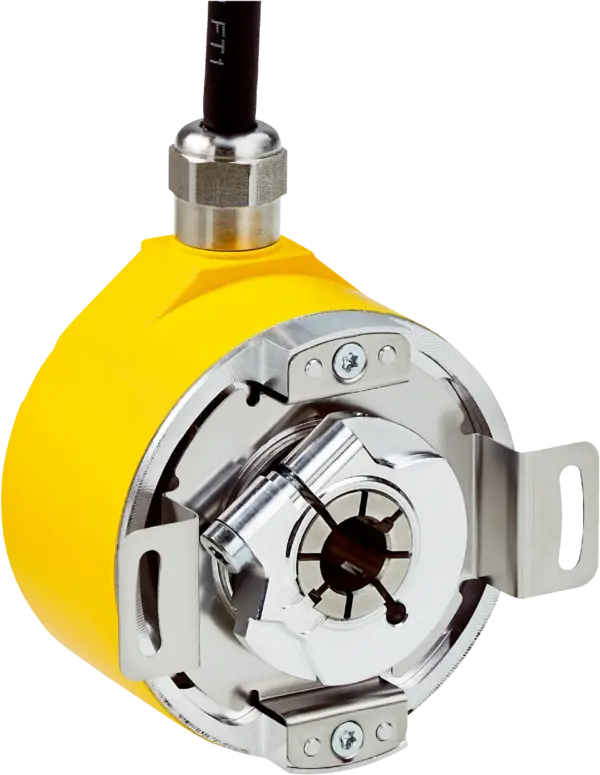

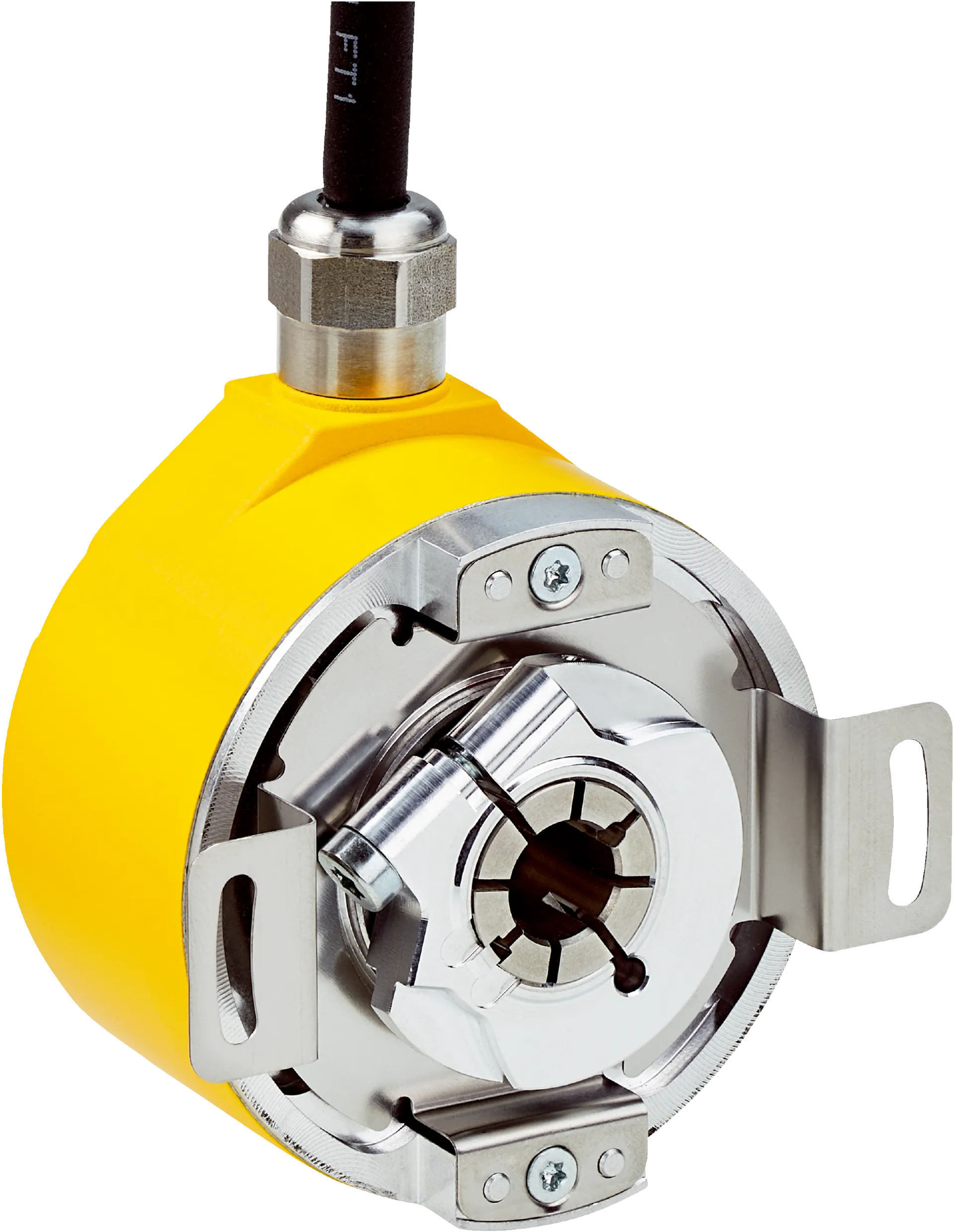

Sick AFS60S-BBKL262144
Safety encoders | AFS/AFM60S Pro | AFS60S-BBKL262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety encoders | AFS/AFM60S Pro | AFS60S-BBKL262144 | Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3) | Performance level: PL e (EN ISO 13849-1) | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 262,144 (18 bit) | Mechanical design: Blind hollow shaft 8 mm (with feather key groove) | Communication interface: SSI, SSI + Sin/Cos, non programmable | Connection type: Cable, 12-wire, radial, 3 m
Specification
Safety-related parameters
| Safety integrity level | SIL 3Â (IECÂ 61508, IECÂ 61800-5-3)Â 1) |
|---|---|
| Performance level | PL e (EN ISO 13849-1) 1) |
| Category | 3Â (ENÂ ISOÂ 13849-1)4Â (ENÂ ISOÂ 13849-1) |
| PFH (mean probability of a dangerous failure per hour) | 5.5 x 10-9 at 40 °C 2)1.8 x 10-8 at 80 °C 2) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849-1)Â 3) |
| Safety-related accuracy | 0.09° category 3 4)0.35° category 4 4) |
Performance
| Number of steps per revolution (max. resolution) | 262,144Â (18Â bit) |
|---|---|
| Error limits G | 0.05° 1) |
| Repeatability standard deviation Ïr | 0.002° 2) |
Interfaces
| Communication interface | SSI |
|---|---|
| Communication Interface detail | SSI + Sin/Cos |
| Initialization time | 2 s 1) |
| Position forming time | < 1 µs |
| Parameterising data | Number of steps per revolutionPreset position, preset position via hardware pin, counting direction, counting direction via hardware pin, reset factory setting, read out error memory, generate report |
| Code type | Gray |
| Code sequence parameter adjustable | CW/CCW configurable 2) |
| Clock frequency | 100 kHz, â¤Â 1 MHz |
| Set (electronic adjustment) | H-active (LÂ = 0Â - 1,5Â V, HÂ = 2,0Â - Us V) |
| CW/CCW (counting sequence when turning) | L-active (LÂ = 0Â - 1,5Â V, HÂ = 2,0Â - Us V) |
| Sine/cosine periods per revolution | 1,024 |
| Output frequency | â¤Â 153.6 kHz |
| Load resistance | â¥Â 120 Ω |
| Signal before differential generation | 0.5 Vpp, ± 20 % |
| Signal offset before differential generation | 2.5 V ± 10 % |
| Signal after differential generation | 1 Vpp, ± 20 % |
Electronics
| Connection type | Cable, 12-wire, radial, 3Â m |
|---|---|
| Supply voltage | 4.5Â ... 32Â V |
| Power consumption | 0.7Â W (without load) |
| Reverse polarity protection | â |
| Short-circuit protection | â 1) |
Mechanics
| Mechanical design | Blind hollow shaft |
|---|---|
| Shaft diameter | 8 mm 1) |
| Characteristics of the shaft | With feather key groove |
| Weight | 0.25 kg 2) |
| Shaft material | Stainless steel |
| Flange material | Die-cast zinc |
| Material, stator coupling | Stainless steel |
| Housing material | Aluminum die cast |
| Start up torque | â¤Â 0.8 Ncm (+20 °C) |
| Operating torque | â¤Â 0.6 Ncm (+20 °C) |
| Permissible movement static | ± 0.3 mm (radial)± 0.5 mm (axial) |
| Permissible movement dynamic | ± 0.05 mm (radial)± 0.1 mm (axial) |
| Operating speed | â¤Â 6,000 minâ»Â¹ |
| Moment of inertia of the rotor | 56 gcm² |
| Bearing lifetime | 3.6 x 109 revolutions 3) 4) |
Ambient data
| EMC | ENÂ 61000-6-2ENÂ 61000-6-3ENÂ 61000-6-7 |
|---|---|
| Enclosure rating | IP65 (IECÂ 60529) |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â30 °C ... +85 °C 1) |
| Storage temperature range | â30 °C ... +85 °C, without package |
| Resistance to shocks | 100Â g, 6Â ms (according to ENÂ 60068-2-27)Â 2) |
| Resistance to vibration | 18 g, 10 Hz ... 1,000 Hz (EN 60068-2-6) 2) |
| Operating height (above sea level) | â¤Â 2,000 m (80 kPa) |
| Protection class | III (according to DINÂ ENÂ 61140) |
| Contamination rating | 2Â (IECÂ 60664-1) |
Classifications
| ECLASS 5.0 | 27270502 |
|---|---|
| ECLASS 5.1.4 | 27270502 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 8.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 10.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
