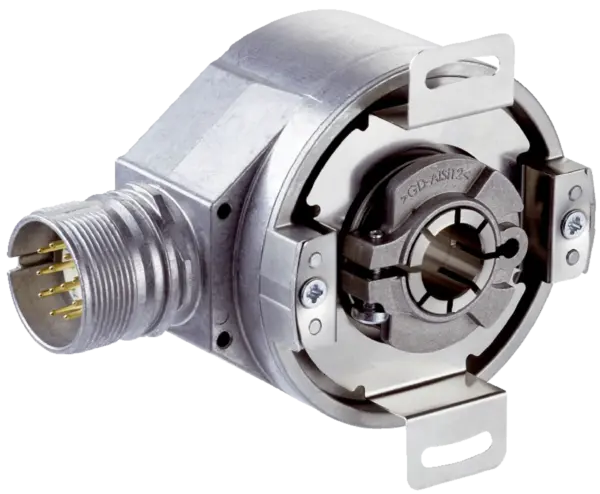

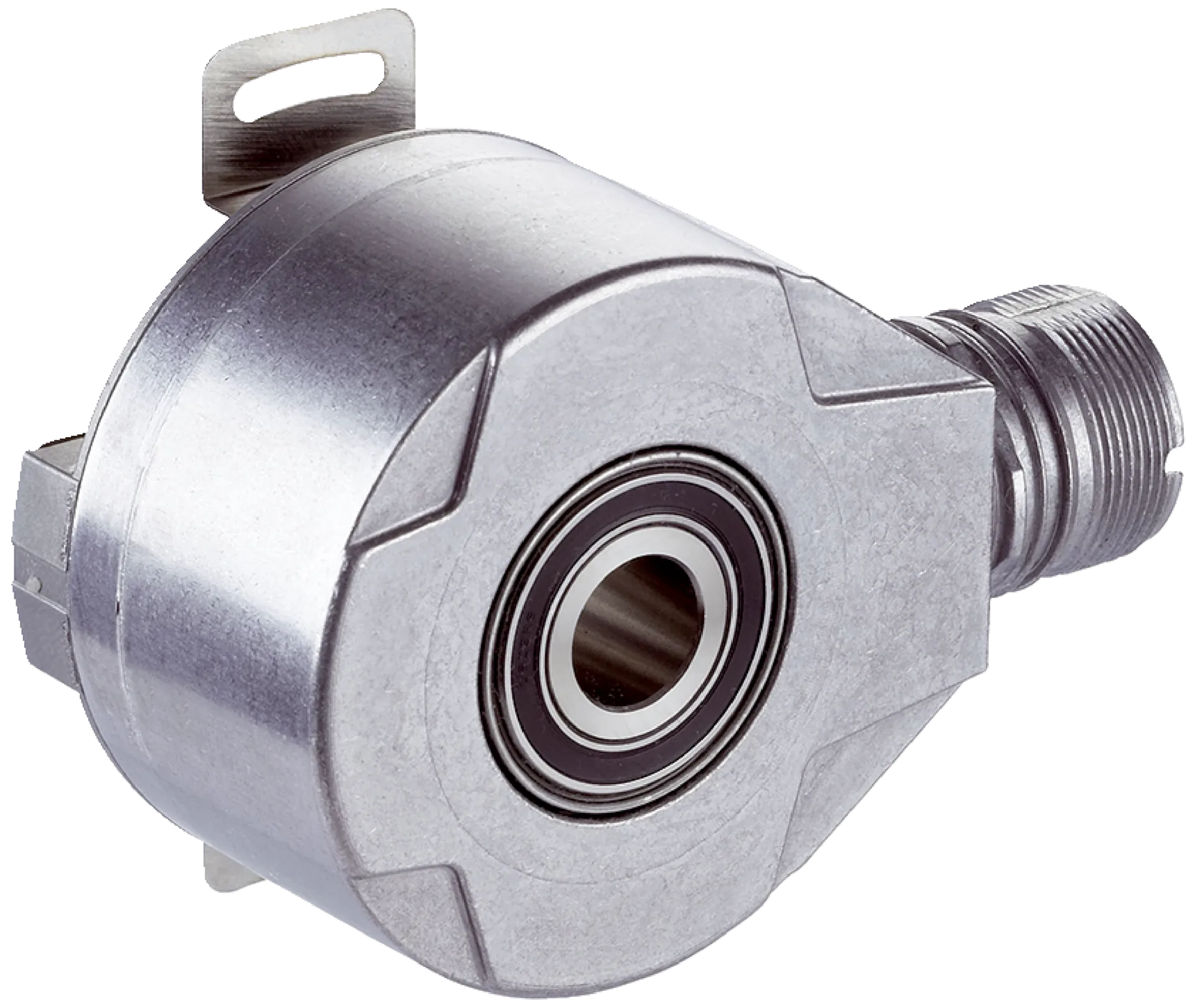

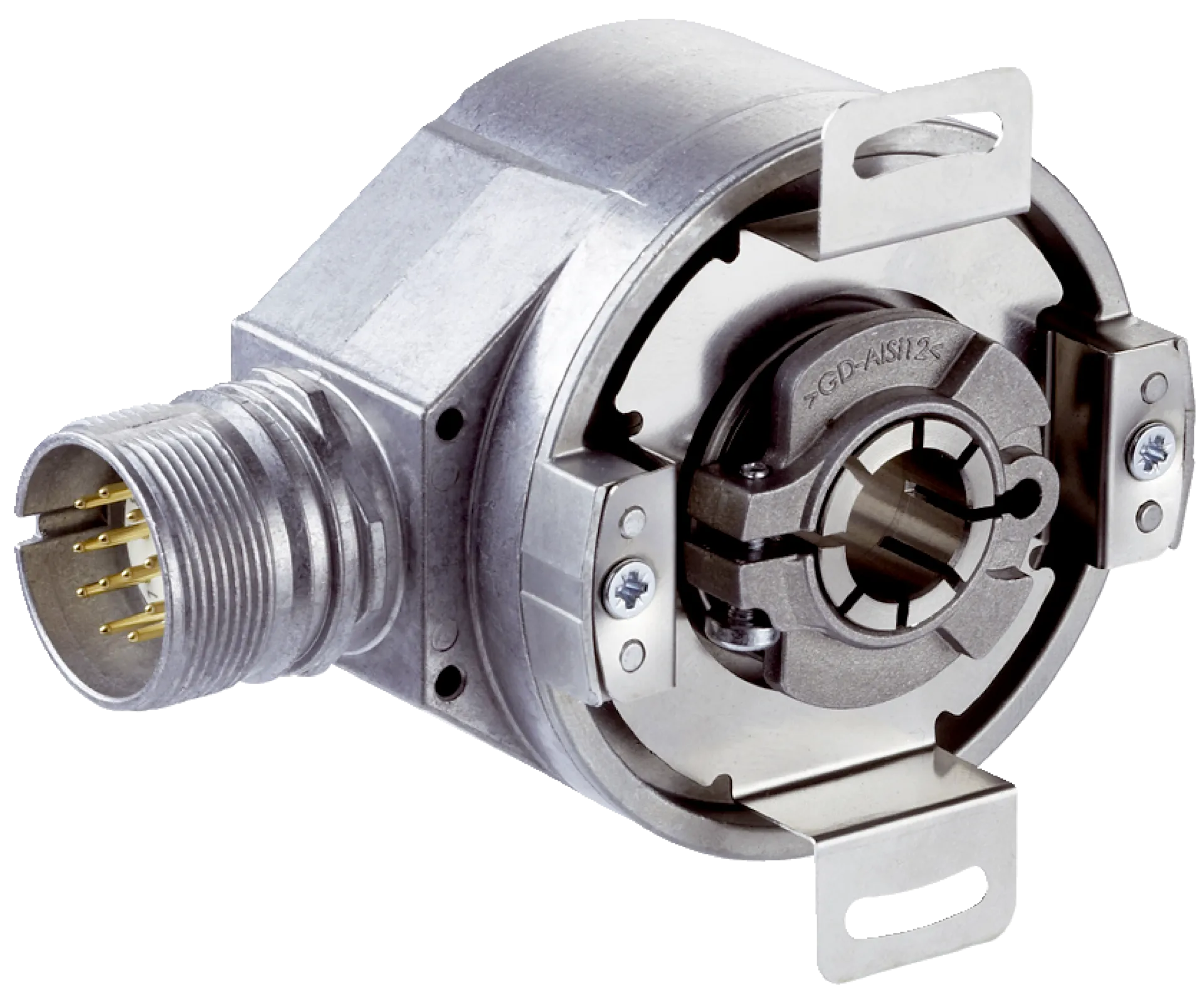

Sick AFS60B-TEAA016384
Absolute encoders | AFS/AFM60 SSI | AFS60B-TEAA016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Through hollow shaft 12 mm (F…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Absolute encoders | AFS/AFM60 SSI | AFS60B-TEAA016384 | Singleturn or multiturn version: Singleturn | Number of steps per revolution: 16,384 (14 bit) | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: SSI, non programmable | Connection type: Male connector, M23, 12-pin, radial
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 250Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Number of steps per revolution (max. resolution) | 16,384Â (14Â bit) |
|---|---|
| Error limits G | 0.05° 1) |
| Repeatability standard deviation Ïr | 0.002° 2) |
Interfaces
| Communication interface | SSI |
|---|---|
| Initialization time | 50 ms 1) |
| Position forming time | < 1 µs |
| Code type | Gray |
| Code sequence parameter adjustable | CW/CCW (V/RÌ ) parameter adjustable |
| Clock frequency | â¤Â 2 MHz 2) |
| Set (electronic adjustment) | H-active (LÂ = 0Â - 3Â V, HÂ = 4,0Â - Us V) |
| CW/CCW (counting sequence when turning) | L-active (LÂ = 0Â - 1,5Â V, HÂ = 2,0Â - Us V) |
Electronics
| Connection type | Male connector, M23, 12-pin, radial |
|---|---|
| Supply voltage | 4.5Â ... 32Â V |
| Power consumption | â¤Â 0.7 W (without load) |
| Reverse polarity protection | â |
Mechanics
| Mechanical design | Through hollow shaft |
|---|---|
| Shaft diameter | 12Â mm |
| Characteristics of the shaft | Front clamp |
| Weight | 0.2 kg 1) |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum die cast |
| Start up torque | < 0.8 Ncm (+20 °C) |
| Operating torque | < 0.6 Ncm (+20 °C) |
| Permissible movement static | ± 0.3 mm (radial)± 0.5 mm (axial) |
| Permissible movement dynamic | ± 0.1 mm (radial)± 0.2 mm (axial) |
| Operating speed | â¤Â 9,000 minâ»Â¹Â 2) |
| Moment of inertia of the rotor | 40 gcm² |
| Bearing lifetime | 3.0Â x 10^9 revolutions |
| Angular acceleration | â¤Â 500,000 rad/s² |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3Â 1) |
|---|---|
| Enclosure rating | IP65, shaft side (IECÂ 60529)IP67, housing side (IECÂ 60529)Â 2) |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â40 °C ... +100 °C 3) |
| Storage temperature range | â40 °C ... +100 °C, without package |
| Resistance to shocks | 70Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 30 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270502 |
|---|---|
| ECLASS 5.1.4 | 27270502 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 8.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 10.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
