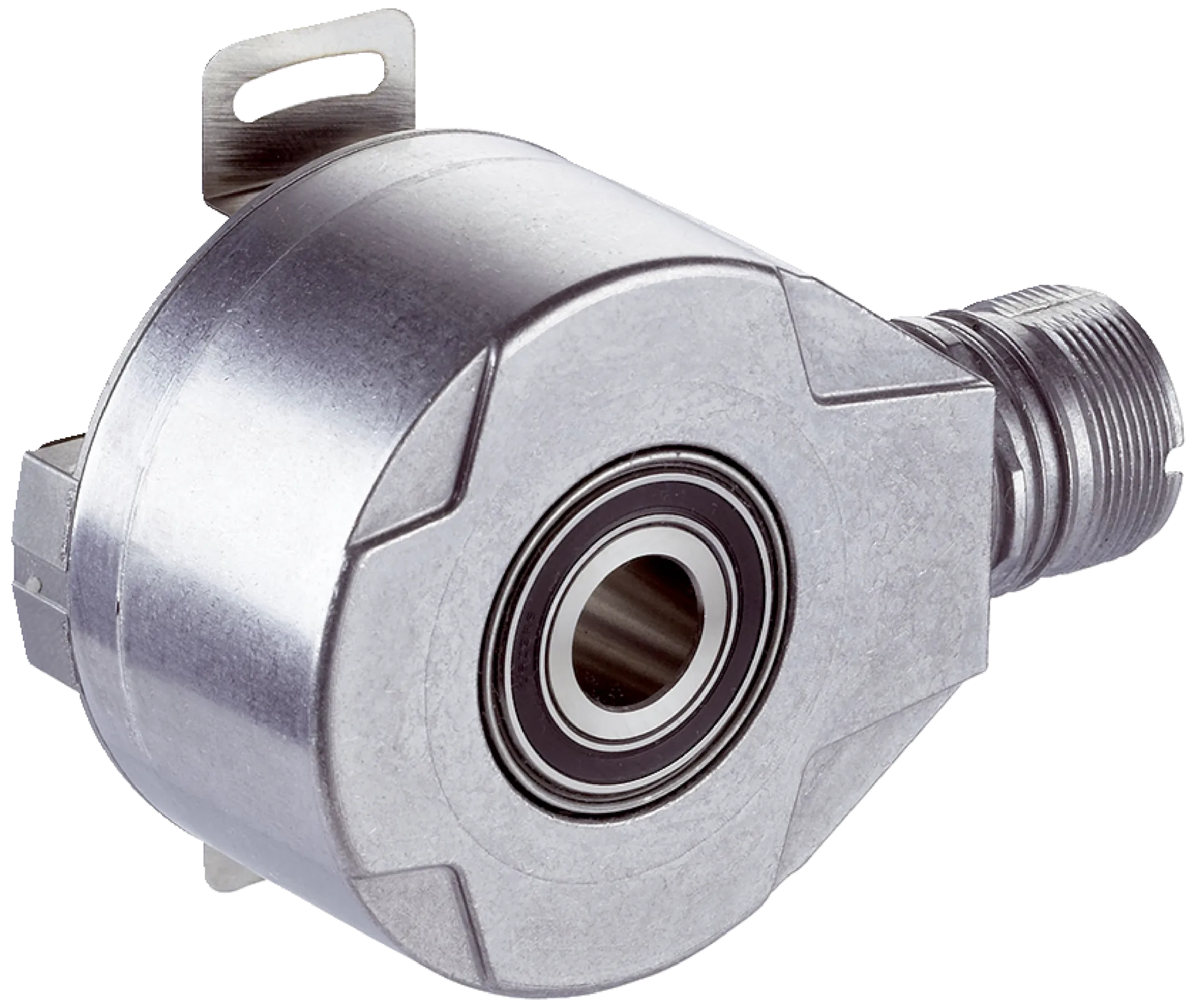

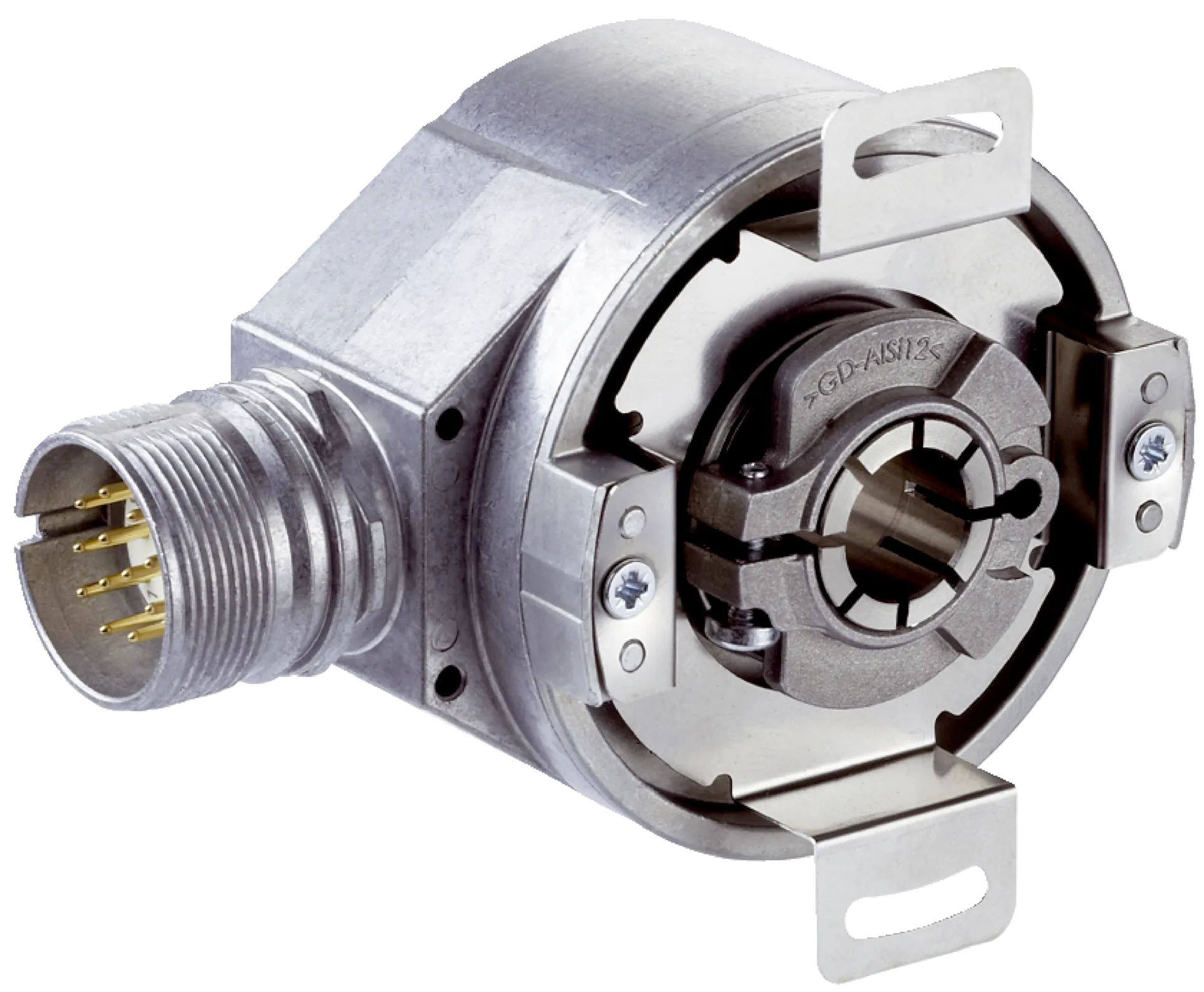

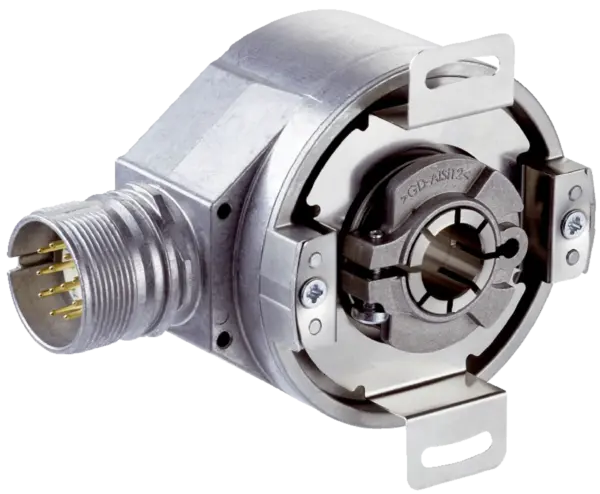

Sick AFM60A-TESA262144
Absolute encoders | AFS/AFM60 SSI | AFM60A-TESA262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 12 mm…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Absolute encoders | AFS/AFM60 SSI | AFM60A-TESA262144 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: SSI, SSI + Sin/Cos, programmable | Connection type: Male connector, M23, 12-pin, radial | Programming interface: Over handheld programming tool, over SOPAS
Specification
Safety-related parameters
| MTTFD (mean time to dangerous failure) | 250Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|
Performance
| Number of steps per revolution (max. resolution) | 262,144Â (18Â bit) |
|---|---|
| Number of revolutions | 4,096Â (12Â bit) |
| Max. resolution (number of steps per revolution x number of revolutions) | 18 bit x 12 bit (262,144 x 4,096) |
| Error limits G | 0.03° 1) |
| Repeatability standard deviation Ïr | 0.002° 2) |
Interfaces
| Communication interface | SSI |
|---|---|
| Communication Interface detail | SSI + Sin/Cos |
| Initialization time | 50 ms 1) |
| Position forming time | < 1 µs |
| Code type | Gray |
| Code sequence parameter adjustable | CW/CCW (V/RÌ ) parameter adjustable |
| Clock frequency | â¤Â 2 MHz 2) |
| Set (electronic adjustment) | H-active (LÂ = 0Â - 3Â V, HÂ = 4,0Â - Us V) |
| CW/CCW (counting sequence when turning) | L-active (LÂ = 0Â - 1,5Â V, HÂ = 2,0Â - Us V) |
| Sine/cosine periods per revolution | 1,024 |
| Output frequency | â¤Â 200 kHz |
| Load resistance | â¥Â 120 Ω |
| Signal before differential generation | 0.5 Vpp, ± 20 %, 120 Ω |
| Signal offset before differential generation | 2.5 V ± 10 % |
| Signal after differential generation | 1 Vpp, ± 20 % |
Electronics
| Connection type | Male connector, M23, 12-pin, radial |
|---|---|
| Supply voltage | 4.5Â ... 32Â V |
| Power consumption | â¤Â 0.7 W (without load) |
| Reverse polarity protection | â |
Mechanics
| Mechanical design | Through hollow shaft |
|---|---|
| Shaft diameter | 12Â mm |
| Characteristics of the shaft | Front clamp |
| Weight | 0.2 kg 1) |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum die cast |
| Start up torque | < 0.8 Ncm (+20 °C) |
| Operating torque | < 0.6 Ncm (+20 °C) |
| Permissible movement static | ± 0.3 mm (radial)± 0.5 mm (axial) |
| Permissible movement dynamic | ± 0.05 mm (radial)± 0.1 mm (axial) |
| Operating speed | â¤Â 9,000 minâ»Â¹Â 2) |
| Moment of inertia of the rotor | 40 gcm² |
| Bearing lifetime | 3.0Â x 10^9 revolutions |
| Angular acceleration | â¤Â 500,000 rad/s² |
Ambient data
| EMC | According to ENÂ 61000-6-2 and ENÂ 61000-6-3Â 1) |
|---|---|
| Enclosure rating | IP65, shaft side (IECÂ 60529)IP67, housing side (IECÂ 60529)Â 2) |
| Permissible relative humidity | 90Â % (Condensation not permitted) |
| Operating temperature range | â40 °C ... +100 °C 3) |
| Storage temperature range | â40 °C ... +100 °C, without package |
| Resistance to shocks | 60Â g, 6Â ms (ENÂ 60068-2-27) |
| Resistance to vibration | 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270502 |
|---|---|
| ECLASS 5.1.4 | 27270502 |
| ECLASS 6.0 | 27270590 |
| ECLASS 6.2 | 27270590 |
| ECLASS 7.0 | 27270502 |
| ECLASS 8.0 | 27270502 |
| ECLASS 8.1 | 27270502 |
| ECLASS 9.0 | 27270502 |
| ECLASS 10.0 | 27270502 |
| ECLASS 11.0 | 27270502 |
| ECLASS 12.0 | 27270502 |
| ETIM 5.0 | EC001486 |
| ETIM 6.0 | EC001486 |
| ETIM 7.0 | EC001486 |
| ETIM 8.0 | EC001486 |
| UNSPSC 16.0901 | 41112113 |
