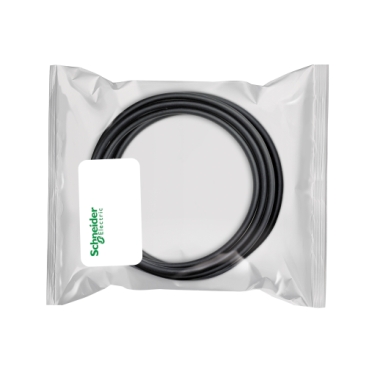

Schneider Electric VW3M3805R010
This product is part of the CANopen range, an offer of connection components. This CANopen preassembled cable is an accessory of stepper drives and motors. The length of this cable is 1m. It is furnis…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This product is part of the CANopen range, an offer of connection components. This CANopen preassembled cable is an accessory of stepper drives and motors. The length of this cable is 1m. It is furnished with 1 RJ45 connector in one end and 9-way D-Sub (DE-09) female with integrated line terminator in another end. It weighs 0.077kg. This preassembled cable is suitable for use with CANopen bus. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution.
Specification
| Range of product | CANopen |
|---|---|
| Range compatibility | Modicon LMC058, Lexium 28, Modicon M238, Lexium SD3, Modicon M258, Magelis XBT GC, GT/GK with control |
| Bus type | CANopen |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Product or component type | CANopen cable |
| Accessory / separate part destination | CANopen bus |
| Cable length | 1 m |
| Electrical connection | 2 connectors |
| Connector type | 1 RJ45, 1 female SUB-D 9 with integrated line terminator |
| Net weight | 0.077 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 18.000 cm |
| Package 1 Weight | 70.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.758 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 70.064 kg |
| Warranty | 18 months |
