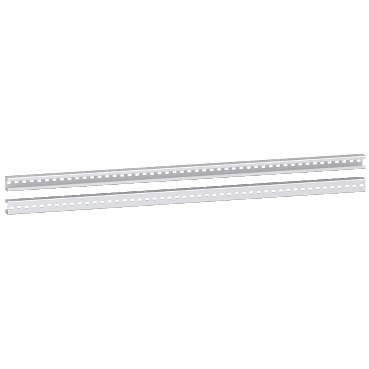

Schneider Electric NSYTVR15
Vertical uprights height 1500mm. zinc-coated steel. Supply: 2 standard uprights.
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Technical upright |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 1500 mm |
| Mounting support | Step slide, Direct fixing on the rear inserts |
| Range compatibility | PanelSeT PLA |
| Device composition | 2 upright |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Bosses inserts – screw type M8 – rear of enclosure location |
| Adjustment | Adjustable in depth every 25 mm with caged nuts, Adjustable in height every 2.5 mm with quarter-turn nuts |
| Height | Nominal: 1500 mm, Real: 1375 mm |
| Width | 45 mm |
| Depth | 34 mm |
| Thickness | 2 mm |
| Cut-out dimensions | 11 x 13 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 138.000 cm |
| Package 1 Weight | 4.134 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 200.000 cm |
| Package 2 Weight | 500.000 kg |
| Warranty | 18 months |
