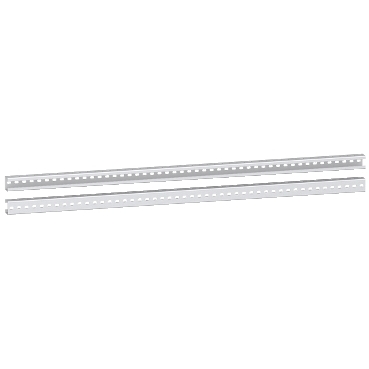

Schneider Electric NSYTVR125
Vertical uprights height 1250mm. zinc-coated steel. Supply: 2 standard uprights.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Technical upright |
| Device application |
Multi-purpose |
| Enclosure nominal dimensions |
– H: 1250 mm |
| Mounting support |
Direct fixing on the rear inserts, Step slide |
| Range compatibility |
PanelSeT PLA |
| Device composition |
2 upright |
| Material |
Steel |
| Surface finish |
Zinc coated |
| Fixing mode |
Bosses inserts – screw type M8 – rear of enclosure location |
| Adjustment |
Adjustable in depth every 25 mm with caged nuts, Adjustable in height every 2.5 mm with quarter-turn nuts |
| Height |
Nominal: 1250 mm, Real: 1125 mm |
| Width |
45 mm |
| Depth |
34 mm |
| Thickness |
2 mm |
| Cut-out dimensions |
11 x 13 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.500 cm |
| Package 1 Width |
6.000 cm |
| Package 1 Length |
113.000 cm |
| Package 1 Weight |
3.410 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
160 |
| Package 2 Height |
100.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
559.000 kg |
| Warranty |
18 months |
