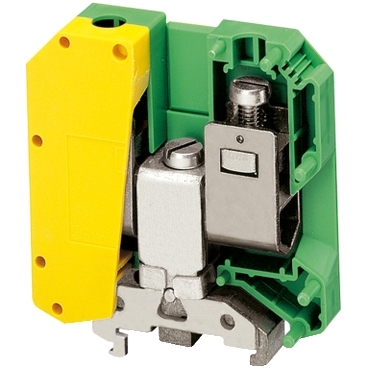

Schneider Electric NSYTRV502PE
Terminal block, Linergy TR, green-yellow, 50mm², protective earth, 2 points, Set of 50
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | Linergy |
|---|---|
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Terminal block type | Protective earth |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 50 mm² |
| Length | 70.5 mm |
| Colour | Green-yellow |
| Quantity per set | Set of 50 |
| Width | 20 mm |
| Height | 83.5 mm |
| Connections - terminals | 1 x screw terminal: upstream, 1 x screw terminal: downstream |
| Number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | |
| Cable cross section | 25…70 mm², solid, 25…50 mm², flexible with cable end, 25…70 mm², flexible without cable end |
| Tightening torque | 6…8 N.m |
| Wire stripping length | 24 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| [In] rated current | 150 A conforming to EN/IEC 60947-7-1 |
| Material | Polyamide 6/6: insulating case |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 184 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSeT Pack 250, PanelSeT, TeSys, Mureva, PrismaSeT XS |
| Product compatibility | Spacial enclosures |
| Product certifications | LR, GL, DNV, UL, CSA |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 27 cm |
| Package 1 Weight | 176 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 8.2 cm |
| Package 2 Width | 8.7 cm |
| Package 2 Length | 22.5 cm |
| Package 2 Weight | 1.828 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 11.467 kg |
| Warranty | 18 months |
