Schneider Electric NSYTLCME

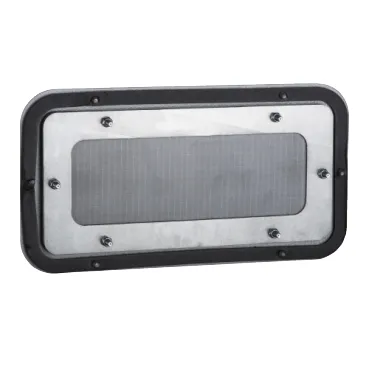

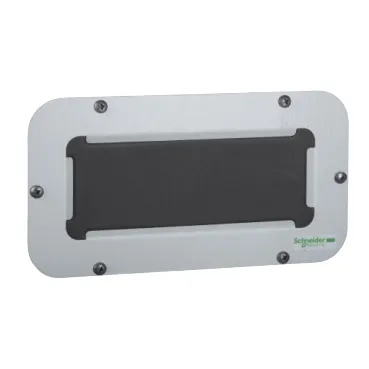

PanelSeT S3D flexicable gland plate with membrane pearcable 178 x 63 mm
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Product or component type |
Flexicable gland plate |
| Accessory / separate part category |
Cable management accessory |
| Application |
Multi-purpose |
| Range compatibility |
PanelSeT SF, PanelSeT S3D |
| Mounting location |
Enclosure bottom |
| Cable gland type |
Pierceable by screwdriver |
| Type of gland plate |
Membrane |
| Cable outer diameter |
10…26 mm |
| Cable entry |
Without |
| Device composition |
1 plate, membrane |
| Quantity per set |
Set of 1 |
| Material |
Plate: steel, Membrane: HCE (heat curable elastomer) |
| Colour |
Plate: grey (RAL 7035) |
| Surface finish |
Epoxy-polyester powder |
| Height |
30 mm |
| Width |
245 mm, Real: 260 mm |
| Depth |
130 mm |
| Net weight |
0.536 kg |
| Thickness |
1.5 mm |
| Number of cut-out |
Undrilled |
| Cut-out dimensions |
178 x 63 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.000 cm |
| Package 1 Width |
13.500 cm |
| Package 1 Length |
26.000 cm |
| Package 1 Weight |
574.000 g |
| Unit Type of Package 2 |
P12 |
| Number of Units in Package 2 |
100 |
| Package 2 Height |
40.000 cm |
| Package 2 Width |
80.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
68.000 kg |
| Warranty |
18 months |
