Schneider Electric NSYTBS775
This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 74 mm, 74 mm, and 54 mm, respectively The internal dimensions of th…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

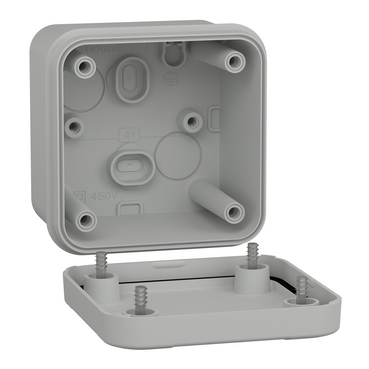

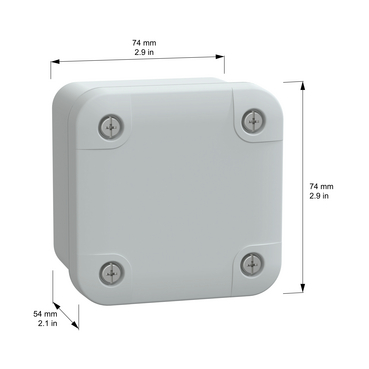

This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 74 mm, 74 mm, and 54 mm, respectively The internal dimensions of the box are 65 mm x 65 mm x 47 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures The box comes in a grey (RAL 7035) color It has a low plain cover that is fixed with metal screws The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specification
| Range |
PanelSeT |
|---|---|
| Device application |
Multi-purpose |
| Category |
Industrial box |
| Height |
74 mm |
| Width |
74 mm |
| Depth |
54 mm |
| Internal height |
65 mm |
| Internal width |
65 mm |
| Internal depth |
47 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
1 body, 1 cover, 4 cover screw |
| Quantity per set |
Set of 5 |
| Body type |
One piece moulded |
| Type of front cover |
Low plain cover |
| Cover fixing |
Metal screws |
| Lock type |
Captive screw flat outside sealed area |
| Removable parts |
Cover by captive screws |
| Material |
ABS with 45% of post-industrial recycled content |
| Colour |
Grey (RAL 7035) |
| Standards |
IEC 62208 |
| Product certifications |
TÜV |
| Electrical insulation class |
Class II |
| IP degree of protection |
IP66 conforming to NEMA 4.4X |
| IK degree of protection |
IK07 conforming to IEC 62262 |
| Glow wire resistance |
650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage |
-15…40 °C |
| Operating temperature |
-25…60 °C |
| Net weight |
0.068 kg |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.700 cm |
| Package 1 Width |
1.600 cm |
| Package 1 Length |
5.800 cm |
| Package 1 Weight |
74.000 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
185 |
| Package 2 Height |
40.000 cm |
| Package 2 Width |
40.500 cm |
| Package 2 Length |
60.500 cm |
| Package 2 Weight |
15.190 kg |
| Unit Type of Package 3 |
P12 |
| Number of Units in Package 3 |
2220 |
| Package 3 Height |
135.000 cm |
| Package 3 Width |
80.000 cm |
| Package 3 Length |
120.000 cm |
| Package 3 Weight |
195.000 kg |
| Warranty |
18 months |
