Schneider Electric NSYTBP241910
This TBP is a wall-mounted box made of polycarbonate It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a low plain cover The enclos…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

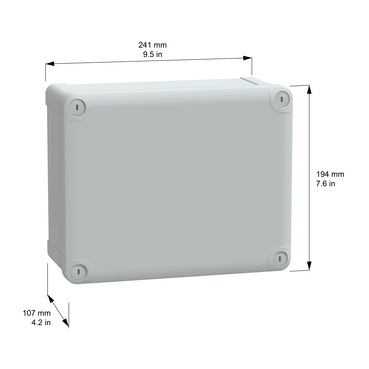

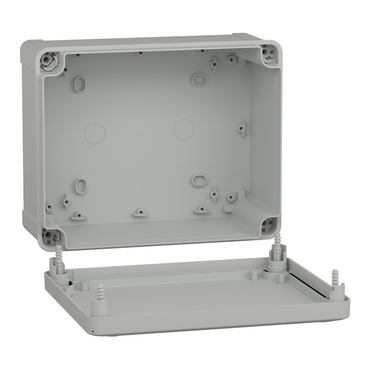

This TBP is a wall-mounted box made of polycarbonate It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a low plain cover The enclosure has a nominal height, width, and depth of 241 mm, 194 mm, and 107 mm, respectively The internal dimensions of the box are 225 mm x 175 mm x 100 mm The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT TBP |
| Device application |
Multi-purpose |
| Category |
Industrial box |
| Height |
241 mm |
| Width |
194 mm |
| Depth |
107 mm |
| Internal height |
225 mm |
| Internal width |
175 mm |
| Internal depth |
100 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
1 body, 1 cover, 4 cover screw |
| Body type |
One piece moulded |
| Type of front cover |
Low plain cover |
| Cover fixing |
Plastic screws |
| Lock type |
Captive screw flat outside sealed area |
| Removable parts |
Cover by captive screws |
| Material |
Polycarbonate |
| Colour |
Grey (RAL 7035) |
| Standards |
UL 508 A, IEC 62208 |
| Product certifications |
TÜV, UL |
| Electrical insulation class |
Class II |
| Mounting location |
Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight |
0.72 kg |
| IP degree of protection |
IP66 conforming to NEMA 4.4X |
| IK degree of protection |
IK08 conforming to IEC 62262 |
| Fire resistance |
960 °C |
| Ambient air temperature for storage |
-15…60 °C |
| Operating temperature |
-25…80 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
12.000 cm |
| Package 1 Width |
20.000 cm |
| Package 1 Length |
26.000 cm |
| Package 1 Weight |
769.000 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
9 |
| Package 2 Height |
40.500 cm |
| Package 2 Width |
40.000 cm |
| Package 2 Length |
60.000 cm |
| Package 2 Weight |
8.320 kg |
| Unit Type of Package 3 |
P12 |
| Number of Units in Package 3 |
108 |
| Package 3 Height |
135.000 cm |
| Package 3 Width |
80.000 cm |
| Package 3 Length |
120.000 cm |
| Package 3 Weight |
107.000 kg |
| Warranty |
18 months |
