Schneider Electric NSYTBP16128
This TBP is a wall-mounted multi-purpose box made of polycarbonate It has a nominal height, width, and depth of 164 mm, 121 mm, and 87 mm, respectively The internal dimensions of the box are 150 mm x…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

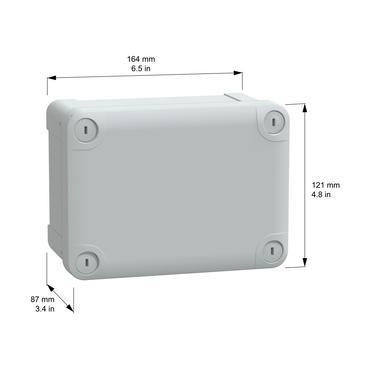

This TBP is a wall-mounted multi-purpose box made of polycarbonate It has a nominal height, width, and depth of 164 mm, 121 mm, and 87 mm, respectively The internal dimensions of the box are 150 mm x 105 mm x 80 mm The box is one-piece moulded and has a grey (RAL 7035) body with a low plain cover that is secured with plastic screws The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP It is certified by TÜV and UL, and is resistant to fire up to 960°C in accordance with IEC 62208 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262)
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT TBP |
| Device application |
Multi-purpose |
| Category |
Industrial box |
| Height |
164 mm |
| Width |
121 mm |
| Depth |
87 mm |
| Internal height |
150 mm |
| Internal width |
105 mm |
| Internal depth |
80 mm |
| Enclosure mounting |
Wall mounted |
| Device composition |
1 body, 1 cover, 4 cover screw |
| Quantity per set |
Set of 2 |
| Body type |
One piece moulded |
| Type of front cover |
Low plain cover |
| Cover fixing |
Plastic screws |
| Lock type |
Captive screw flat outside sealed area |
| Removable parts |
Cover by captive screws |
| Material |
Polycarbonate |
| Colour |
Grey (RAL 7035) |
| Standards |
UL 508 A, IEC 62208 |
| Product certifications |
TÜV, UL |
| Electrical insulation class |
Class II |
| Mounting location |
Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight |
0.33 kg |
| IP degree of protection |
IP66 conforming to NEMA 4.4X |
| IK degree of protection |
IK08 conforming to IEC 62262 |
| Fire resistance |
960 °C |
| Ambient air temperature for storage |
-15…60 °C |
| Operating temperature |
-25…80 °C |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
8.700 cm |
| Package 1 Width |
12.100 cm |
| Package 1 Length |
16.400 cm |
| Package 1 Weight |
330.000 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
32 |
| Package 2 Height |
40.000 cm |
| Package 2 Width |
40.500 cm |
| Package 2 Length |
60.500 cm |
| Package 2 Weight |
11.950 kg |
| Unit Type of Package 3 |
P12 |
| Number of Units in Package 3 |
384 |
| Package 3 Height |
134.500 cm |
| Package 3 Width |
80.000 cm |
| Package 3 Length |
120.000 cm |
| Package 3 Weight |
159.500 kg |
| Warranty |
18 months |
