Schneider Electric NSYSQCR6550

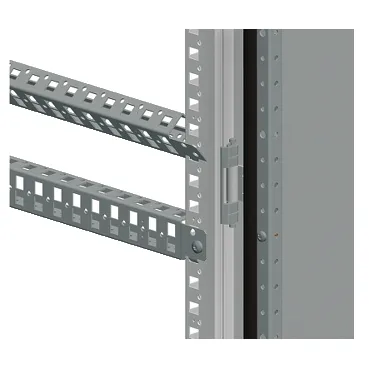

Quick cross rails made from zinc coated 1,5mm thick steel for use with Spacial SF, Spacial SM, Spacial SFX and Spacial SMX enclosures Can be fixed between cross rails and on structure of enclosure On…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Quick cross rails made from zinc coated 1,5mm thick steel for use with Spacial SF, Spacial SM, Spacial SFX and Spacial SMX enclosures Can be fixed between cross rails and on structure of enclosure On SM enclosures fixing by means of adaptation profiles The nominal height is 500mm and useful height is 410mm The width is 65mm Laterally adjustable with a pitch of 25mm
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Mounting accessory |
| Product or component type |
Quick cross rails |
| Application |
Multi-purpose |
| Nominal dimensions of the housing |
– |
| Range compatibility |
PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Mounting location |
Between cross rails, On structure of enclosure |
| Mounting support |
Adaptation profile, on SM enclosures |
| Device composition |
Fixing elements, 2 cross rails |
| Quantity per set |
Set of 1 |
| Material |
Steel |
| Surface finish |
Galvanized |
| Fixing mode |
By screws, Clipped – on structure location |
| Adjustment |
Adjustable with a pitch of 25 mm |
| Number of horizontal rows |
2 |
| Maximum load |
90 kg |
| Height |
Nominal: 500 mm, Useful: 410 mm |
| Width |
65 mm |
| Depth |
27 mm |
| Thickness |
1.5 mm |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
6.000 cm |
| Package 1 Width |
7.000 cm |
| Package 1 Length |
46.500 cm |
| Package 1 Weight |
1.068 kg |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
288 |
| Package 2 Height |
81.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
339.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
