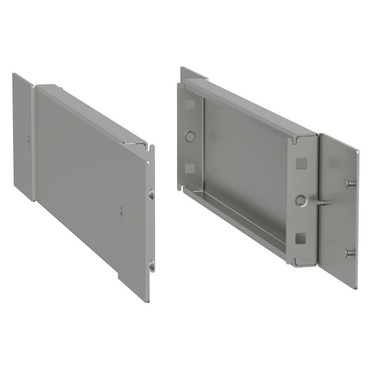

Schneider Electric NSYSPSX5100H
PanelSeT -side plinth – H100 D500 stainless steel 316L
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth side panel |
| Application | Multi-purpose |
| Nominal dimensions of the housing | – |
| Device composition | Fixing elements, 4 corner cover, 2 side panel |
| Range compatibility | PanelSeT PanelSeT SD SD, PanelSeT SMX PanelSeT SMX, PanelSeT SFX PanelSeT SFX, PanelSeT PanelSeT SDX SDx |
| Mounting support | Front plinth |
| Fixing mode | By screws |
| Material | Stainless steel 316L |
| Surface finish | Untreated |
| Height | 100 mm |
| Depth | Nominal : 500 mm |
| Net weight | 1.42 kg |
| IP degree of protection | IP30 (complete plinth) |
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 31.000 cm |
| Package 1 Weight | 1.906 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 19.060 kg |
| Warranty | 18 months |
