Schneider Electric NSYSPS4100SD

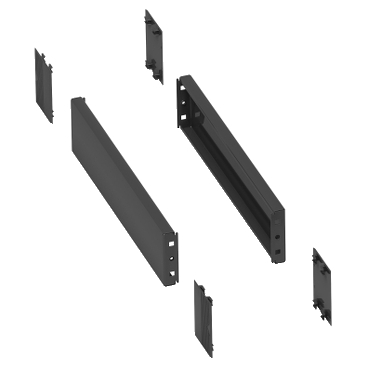

2 side panels for plinth. 400x100mm. Folded sheet steel. RAL 7022. IP 30. IK 10.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range |
PanelSeT |
|---|---|
| Accessory / separate part category |
Enclosure accessory |
| Product or component type |
Plinth side panel |
| Application |
Multi-purpose |
| Nominal dimensions of the housing |
– |
| Device composition |
Fixing elements, 4 corner cover, 2 side panel |
| Range compatibility |
PanelSeT S3D PanelSeT S3D, PanelSeT CRN PanelSeT CRN |
| Mounting support |
Front plinth |
| Fixing mode |
By screws |
| Material |
Sheet steel |
| Colour |
Grey (RAL 7022) |
| Surface finish |
Epoxy-polyester powder |
| Height |
100 mm |
| Width |
Nominal: 400 mm |
| Depth |
400 mm |
| IP degree of protection |
IP30 (complete plinth) |
| IK degree of protection |
IK10 (resistance to external mechanical impacts) |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
6.000 cm |
| Package 1 Width |
11.500 cm |
| Package 1 Length |
22.500 cm |
| Package 1 Weight |
956.000 g |
| Unit Type of Package 2 |
PAM |
| Number of Units in Package 2 |
240 |
| Package 2 Height |
50.000 cm |
| Package 2 Width |
100.000 cm |
| Package 2 Length |
120.000 cm |
| Package 2 Weight |
243.500 kg |
| Warranty |
18 months |
