Schneider Electric NSYSM20860T

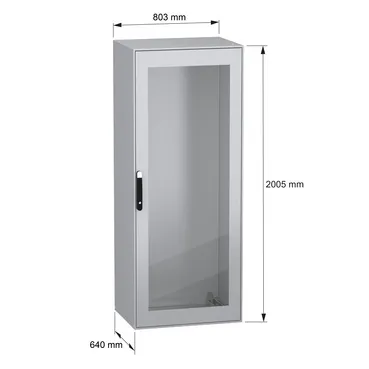

Spacial SM monobloc compact steel enclosure with glazed door. 2000 x 800 x 600 mm. Back panel welded. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK08, Grey RAL 7035….
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spacial SM monobloc compact steel enclosure with glazed door. 2000 x 800 x 600 mm. Back panel welded. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK08, Grey RAL 7035. 4 mounting plate support brackets included.
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SM |
| Product or component type |
Compact enclosure |
| Application |
Multi-purpose |
| Installation accessory type |
Floor-standing |
| Device composition |

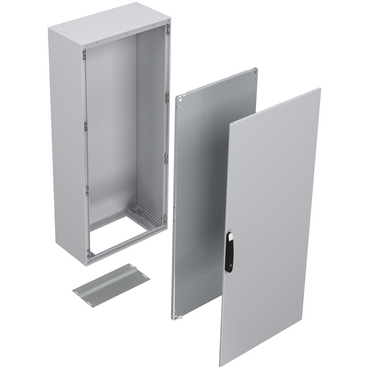

1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door |
| Removable parts |
Door by screws hinge, Mounting plate bracket by screws |
| Enclosure nominal height |
2000 mm |
| Enclosure nominal width |
800 mm |
| Enclosure nominal depth |
600 mm |
| Number of doors |
Front: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Door type |
Glazed |
| Lock type |
4 points lock, handle with 5 mm double bar insert |
| Body type |
Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Cable entry |
1 entry |
| Material |
Door: Securit glass, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation |
Front |
| Net weight |
110 kg |
| Standards |
IEC 62208 |
| Product certifications |
UL, BV, DNV |
| IK degree of protection |
IK08 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
213.0 cm |
| Package 1 Width |
84.5 cm |
| Package 1 Length |
69.0 cm |
| Package 1 Weight |
110.0 kg |
| Coverage |
Core product |
| Warranty |
18 months |
