Schneider Electric NSYSM20860
Spacial SM steel compact floor-standing enclosure is designed for a multi-purpose application This enclosure has a nominal height, width and depth of 2000mm, 800mm and 600mm respectively It is made in…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

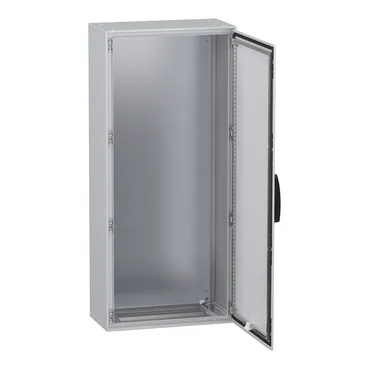

Spacial SM steel compact floor-standing enclosure is designed for a multi-purpose application This enclosure has a nominal height, width and depth of 2000mm, 800mm and 600mm respectively It is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure is certified by BV, DNV and UL, and it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) It consists of a body, one cable gland plate, one plain door, four mounting plate brackets and a locking system with handle on the door The door can be opened up to 120° and it is reversible, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SM |
| Product or component type |
Compact enclosure |
| Application |
Multi-purpose |
| Installation accessory type |
Floor-standing |
| Device composition |

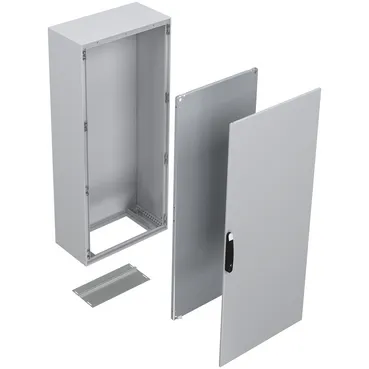

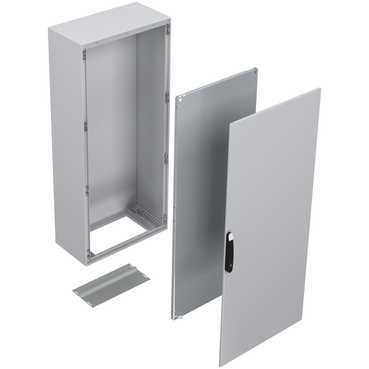

1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door |
| Removable parts |
Door by screws hinge, Mounting plate bracket by screws |

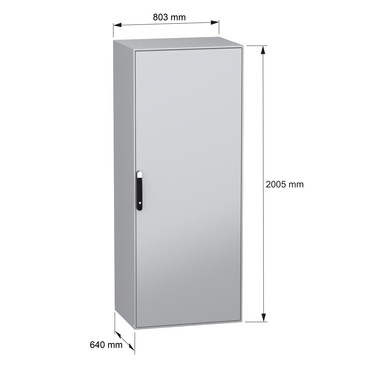

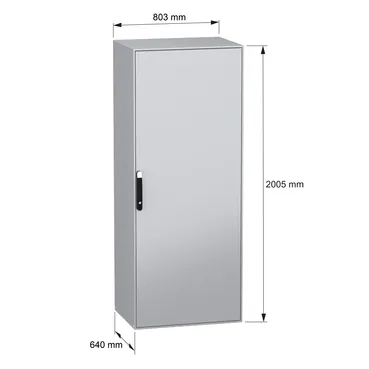

| Enclosure nominal height |
2000 mm |
| Enclosure nominal width |
800 mm |
| Enclosure nominal depth |
600 mm |
| Number of doors |
Front: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Door type |
Plain |
| Lock type |
4 points lock, handle with 5 mm double bar insert |
| Body type |
Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Cable entry |
1 entry |
| Material |

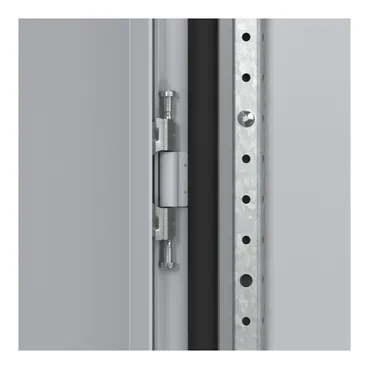

Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation |
Front |
| Net weight |
110 kg |
| Standards |
IEC 62208 |
| Product certifications |
BV, DNV, UL |
| IK degree of protection |
IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
213.000 cm |
| Package 1 Width |
85.000 cm |
| Package 1 Length |
69.000 cm |
| Package 1 Weight |
107.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
