Schneider Electric NSYSM18860P
Spacial SM is a multi-purpose steel floor-standing enclosure with a nominal height, width and depth of 1800mm, 800mm and 600mm respectively It is designed for use in harsh environments, it can withsta…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

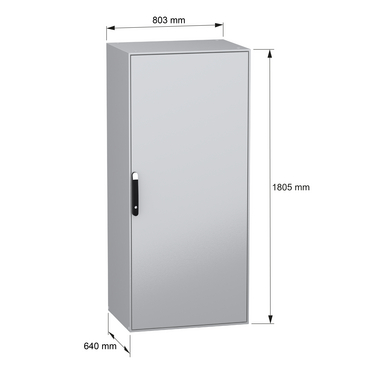

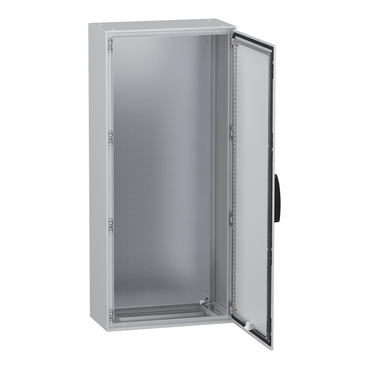

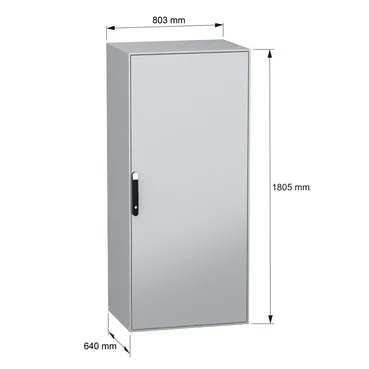

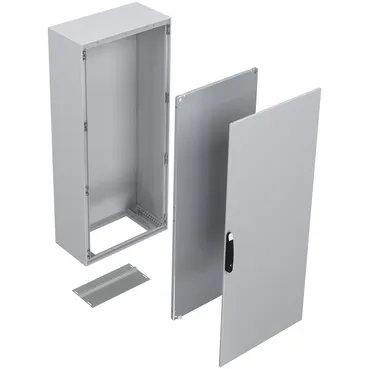

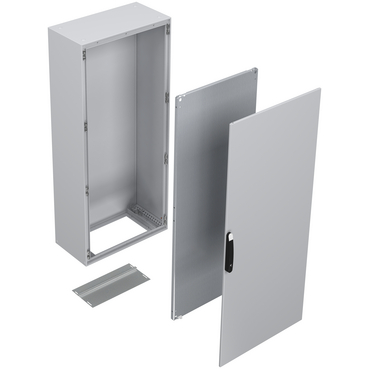

Spacial SM is a multi-purpose steel floor-standing enclosure with a nominal height, width and depth of 1800mm, 800mm and 600mm respectively It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of a body, a cable gland plate, a locking system with handle on the door, four mounting plate brackets, a mounting plate and a door The door can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert The door, mounting plate and mounting plate brackets can be removed for maintenance purposes
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 mounting plate, 1 door |
| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |
| Enclosure nominal height | 1800 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 600 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Cable entry | 1 entry |

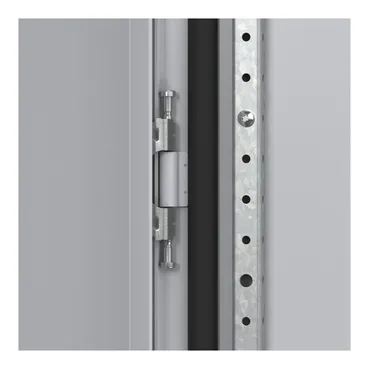

| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 132 kg |
| Standards | IEC 62208 |
| Product certifications | UL, BV, DNV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 193.000 cm |
| Package 1 Width | 85.000 cm |
| Package 1 Length | 69.000 cm |
| Package 1 Weight | 126.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
