Schneider Electric NSYSM1810402D
Spacial SM steel compact floor-standing enclosure is designed for a multi-purpose application It is designed to withstand harsh environments and can withstand high impacts with its IK10 (IEC62262) rat…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

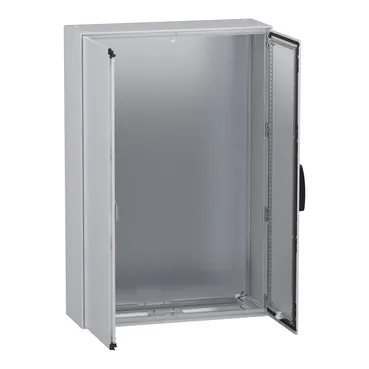

Spacial SM steel compact floor-standing enclosure is designed for a multi-purpose application It is designed to withstand harsh environments and can withstand high impacts with its IK10 (IEC62262) rating and has a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure has a nominal height, width and depth of 1800mm, 1000mm and 400mm respectively The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, one cable gland plate, two plain doors, four mounting plate brackets, a blocking system on left door and a locking system with handle on the door The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SM |
| Product or component type |
Compact enclosure |
| Application |
Multi-purpose |
| Installation accessory type |
Floor-standing |
| Device composition |

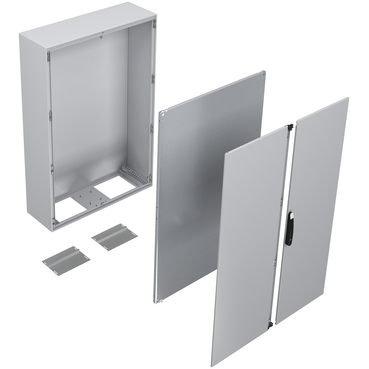

1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket |
| Removable parts |

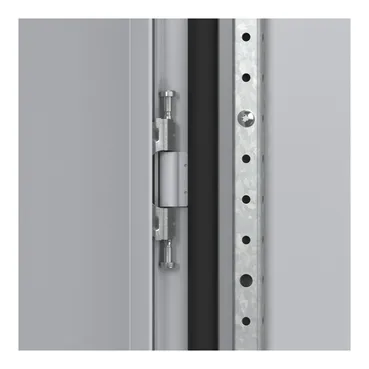

Door by screws hinge, Mounting plate bracket by screws |

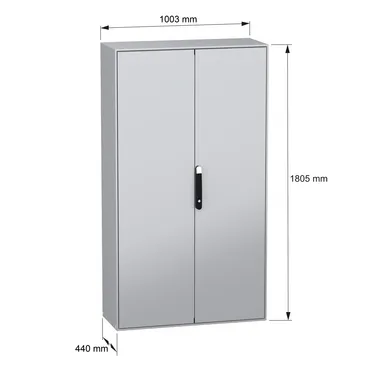

| Enclosure nominal height |
1800 mm |
| Enclosure nominal width |
1000 mm |
| Enclosure nominal depth |
400 mm |
| Number of doors |
Front: 2 door(s) |
| Door opening side |
Left (120 °), Right (120 °) |
| Door type |
Plain |
| Lock type |
4 points lock, handle with 5 mm double bar insert |
| Body type |
Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Cable entry |
1 entry |
| Material |
Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation |
Front |
| Net weight |
107 kg |
| Standards |
IEC 62208 |
| Product certifications |
UL, DNV, BV |
| IK degree of protection |
IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
193.000 cm |
| Package 1 Width |
105.000 cm |
| Package 1 Length |
49.000 cm |
| Package 1 Weight |
113.000 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
193.000 cm |
| Package 2 Width |
105.000 cm |
| Package 2 Length |
98.000 cm |
| Package 2 Weight |
226.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
