Schneider Electric NSYSM1610402DP
Spacial SM is a multi-purpose floor-standing steel enclosure with a nominal height, width and depth of 1600mm, 1000mm and 400mm respectively It is designed for use in harsh environments, it can withst…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

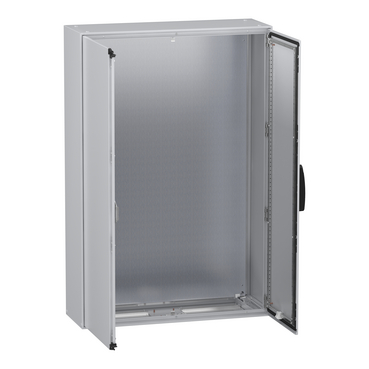

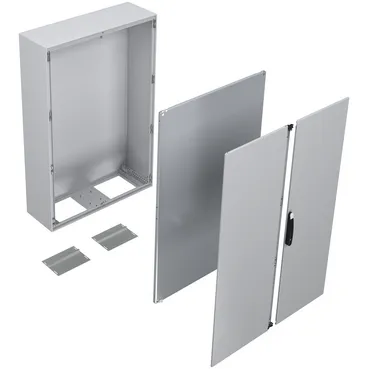

Spacial SM is a multi-purpose floor-standing steel enclosure with a nominal height, width and depth of 1600mm, 1000mm and 400mm respectively It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, one cable gland plate, two plain doors, four mounting plate brackets, a blocking system on left door, a locking system with handle on the door, and a mounting plate The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert The doors, the mounting plate brackets and the mounting plate can be removed for maintenance purposes
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SM |
| Product or component type |
Compact enclosure |
| Application |
Multi-purpose |
| Installation accessory type |
Floor-standing |
| Device composition |

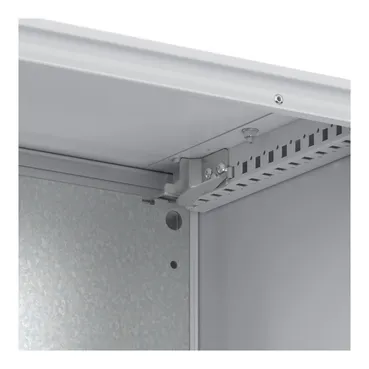

1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket, 1 mounting plate |
| Removable parts |

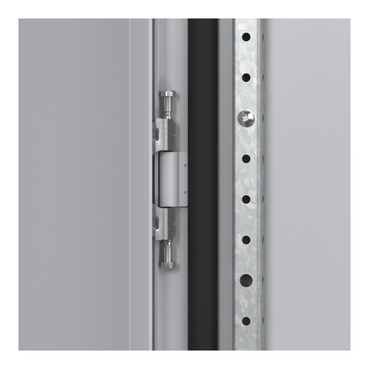

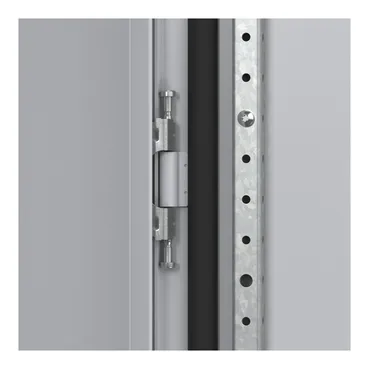

Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

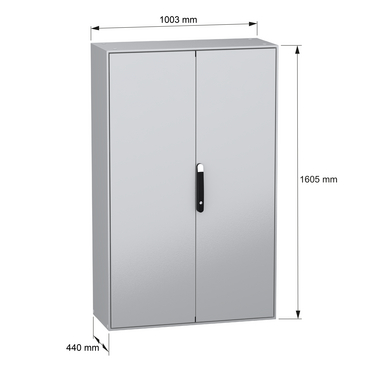

| Enclosure nominal height |
1600 mm |
| Enclosure nominal width |
1000 mm |
| Enclosure nominal depth |
400 mm |
| Number of doors |
Front: 2 door(s) |
| Door opening side |
Left (120 °), Right (120 °) |
| Door type |
Plain |
| Lock type |

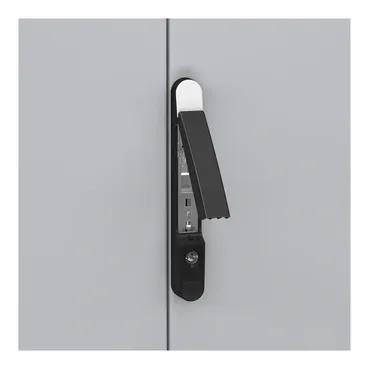

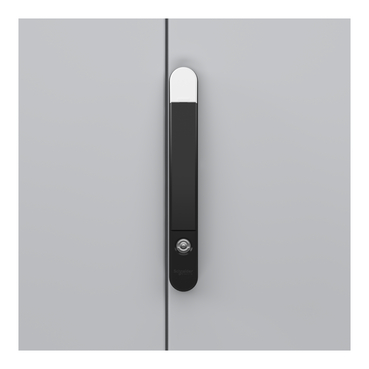

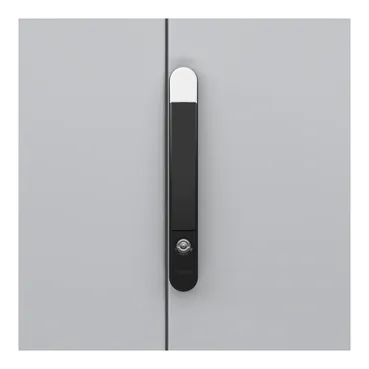

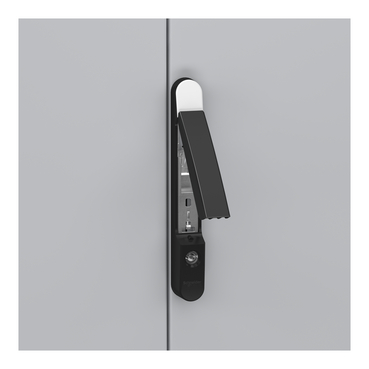

4 points lock, handle with 5 mm double bar insert |
| Body type |

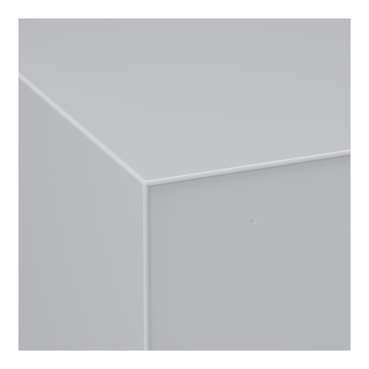

Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |

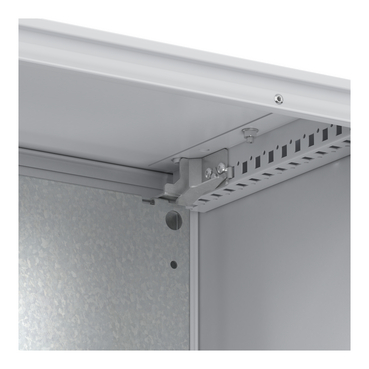

| Mounting plate description |
Plain |
| Type of gland plate |
Standard |
| Cable entry |
1 entry |
| Material |
Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation |
Front |
| Net weight |
120.5 kg |
| Standards |
IEC 62208 |
| Product certifications |
DNV, UL, BV |
| IK degree of protection |
IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
173.000 cm |
| Package 1 Width |
105.000 cm |
| Package 1 Length |
49.000 cm |
| Package 1 Weight |
121.000 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
173.000 cm |
| Package 2 Width |
105.000 cm |
| Package 2 Length |
98.000 cm |
| Package 2 Weight |
242.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
