Schneider Electric NSYSM1610302D
Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1600 x 1000 x 300 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Prote…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

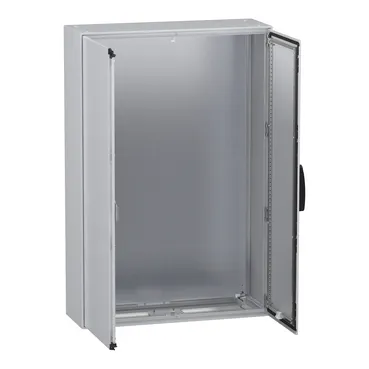

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1600 x 1000 x 300 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SM |
| Product or component type |
Compact enclosure |
| Application |
Multi-purpose |
| Installation accessory type |
Floor-standing |

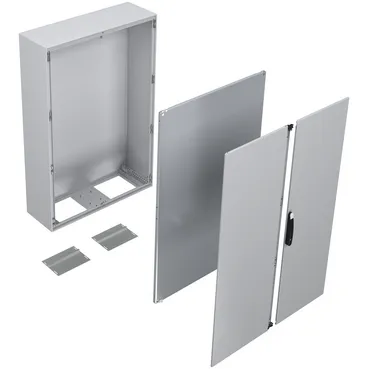

| Device composition |

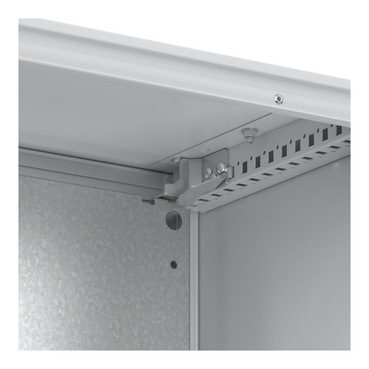

1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket |
| Removable parts |

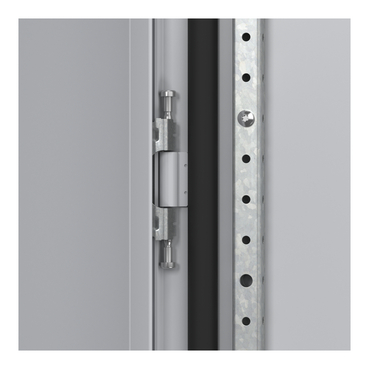

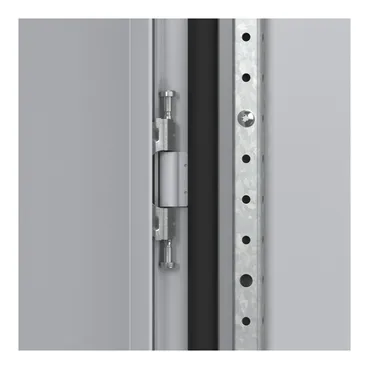

Door by screws hinge, Mounting plate bracket by screws |

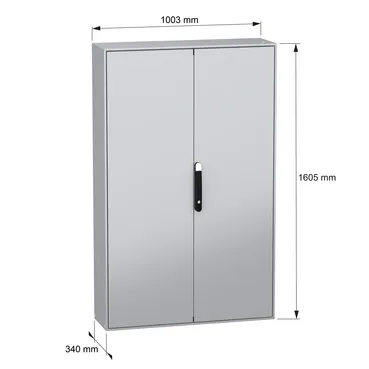

| Enclosure nominal height |
1600 mm |
| Enclosure nominal width |
1000 mm |
| Enclosure nominal depth |
300 mm |
| Number of doors |
Front: 2 door(s) |
| Door opening side |
Left (120 °), Right (120 °) |
| Door type |
Plain |

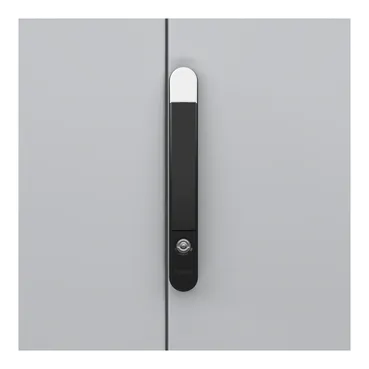

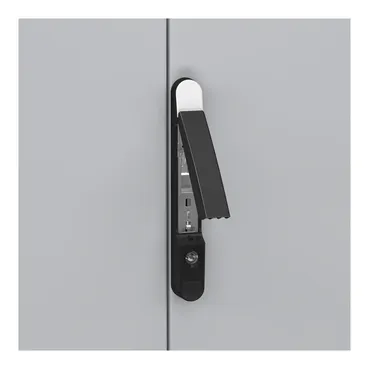

| Lock type |

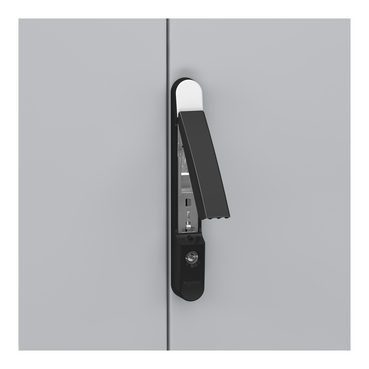

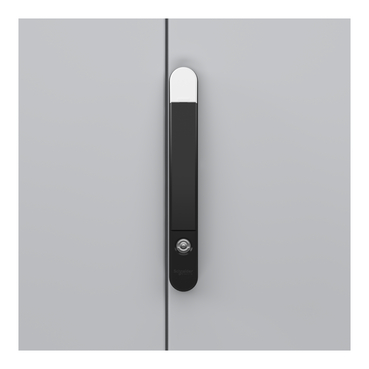

4 points lock, handle with 5 mm double bar insert |
| Body type |
Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |

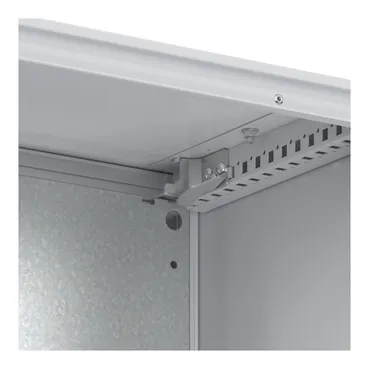

| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Cable entry |
1 entry |
| Material |
Body: sheet steel, Door: sheet steel, Hinge: zamak |

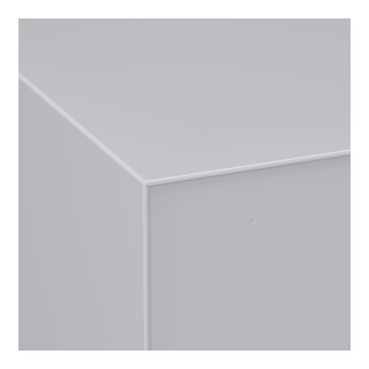

| Surface finish |
Epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation |
Front |
| Net weight |
74 kg |
| Standards |
IEC 62208 |
| Product certifications |
BV, DNV, UL |
| IK degree of protection |
IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
173.000 cm |
| Package 1 Width |
105.000 cm |
| Package 1 Length |
39.000 cm |
| Package 1 Weight |
86.500 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
173.000 cm |
| Package 2 Width |
105.000 cm |
| Package 2 Length |
78.000 cm |
| Package 2 Weight |
173.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
