Schneider Electric NSYSM14840P
Spacial SM is a multi-purpose steel floor-standing enclosure designed for use in harsh environments It has a nominal height, width and depth of 1400mm, 800mm and 400mm respectively and is made up of g…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

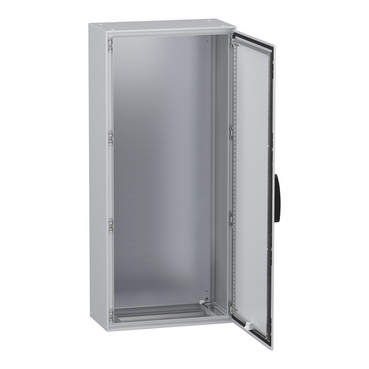

Spacial SM is a multi-purpose steel floor-standing enclosure designed for use in harsh environments It has a nominal height, width and depth of 1400mm, 800mm and 400mm respectively and is made up of galvanised steel mounting plate, sheet steel body and door, and zamak hinge The enclosure is certified by UL, DNV and BV and has a four-point lock with a handle with 5mm double-bar insert The enclosure is painted in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It has a single piece body with welded rear panel and a front part forming a rigid frame with welded corners It has one plain door that can be opened up to 120°, allowing easy access to the equipment inside It also includes one cable gland plate, four mounting plate brackets and a mounting plate
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SM |
| Product or component type |
Compact enclosure |
| Application |
Multi-purpose |
| Installation accessory type |
Floor-standing |
| Device composition |

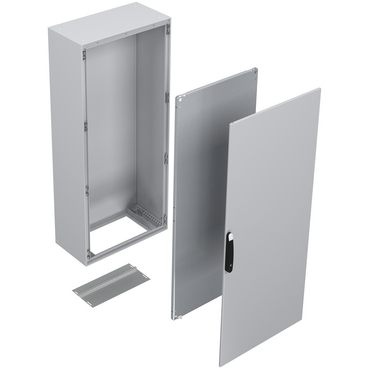

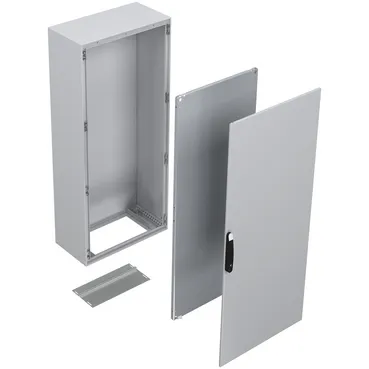

1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 mounting plate, 1 door |
| Removable parts |

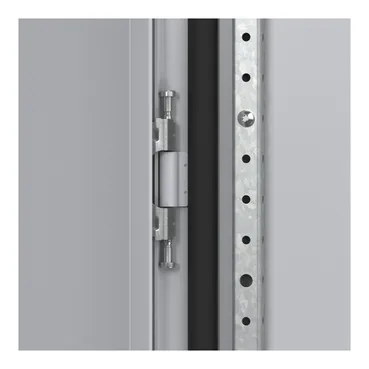

Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

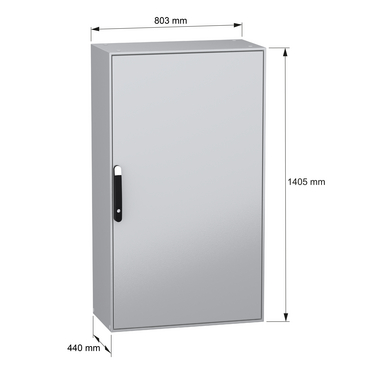

| Enclosure nominal height |
1400 mm |
| Enclosure nominal width |
800 mm |
| Enclosure nominal depth |
400 mm |
| Number of doors |
Front: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Door type |
Plain |
| Lock type |
4 points lock, handle with 5 mm double bar insert |
| Body type |
Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description |
Plain |
| Type of gland plate |
Standard |
| Cable entry |
1 entry |
| Material |
Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation |
Front |
| Net weight |
80 kg |
| Standards |
IEC 62208 |
| Product certifications |
UL, DNV, BV |
| IK degree of protection |
IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
153.000 cm |
| Package 1 Width |
85.000 cm |
| Package 1 Length |
49.000 cm |
| Package 1 Weight |
90.000 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
153.000 cm |
| Package 2 Width |
85.000 cm |
| Package 2 Length |
98.000 cm |
| Package 2 Weight |
180.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
