Schneider Electric NSYSM14640P
Spacial SM is a multi-purpose steel compact floor-standing enclosure designed for use in harsh environments It has a nominal height, width, and depth of 1400mm, 600mm, and 400mm respectively and is ma…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

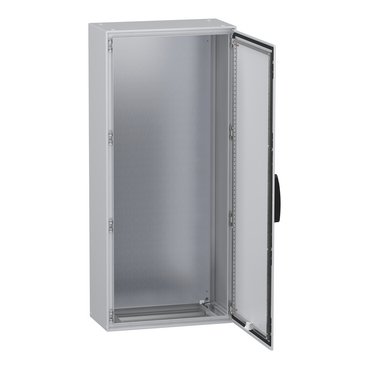

Spacial SM is a multi-purpose steel compact floor-standing enclosure designed for use in harsh environments It has a nominal height, width, and depth of 1400mm, 600mm, and 400mm respectively and is made in grey color (RAL7035) with an epoxy-polyester powder surface finish The handle is made in black color (RAL9005) The enclosure is certified by DNV, UL, and BV and is IK10 (IEC62262) and IP55 (IEC60529) rated for high impact and dust/water resistance, respectively It consists of a body, one cable gland plate, one plain door, four mounting plate brackets, one mounting plate and a locking system with handle on the door The door can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |

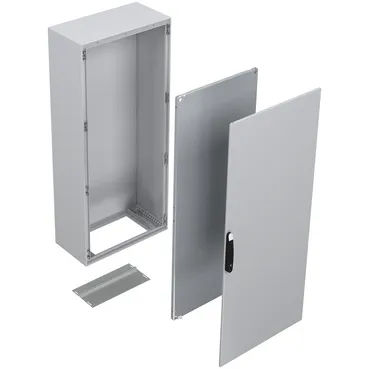

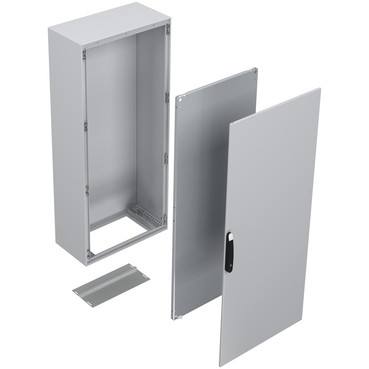

| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 mounting plate, 1 door |

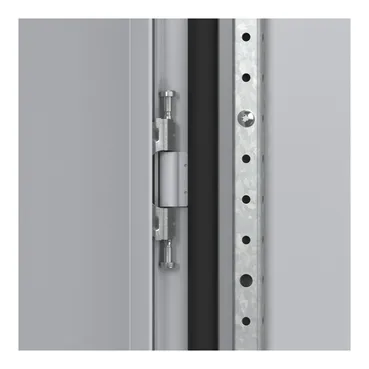

| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

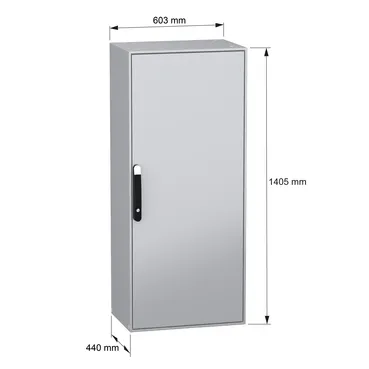

| Enclosure nominal height | 1400 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Cable entry | 1 entry |
| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 75 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, UL, BV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 153.000 cm |
| Package 1 Width | 65.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 73.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 153.000 cm |
| Package 2 Width | 65.000 cm |
| Package 2 Length | 98.000 cm |
| Package 2 Weight | 146.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
