Schneider Electric NSYSM14630P
Spacial SM is a multi-purpose steel floor-standing enclosure with a nominal height, width and depth of 1400mm, 600mm and 300mm respectively It is designed for use in harsh environments, it can withsta…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

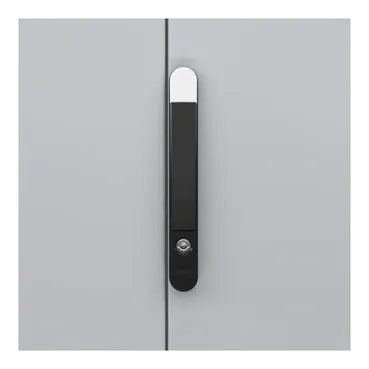

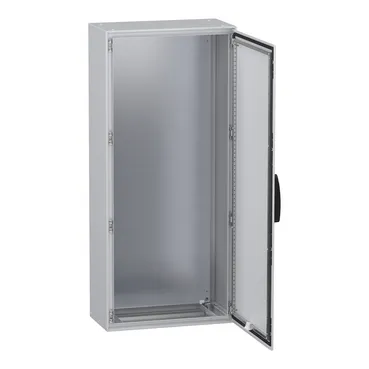

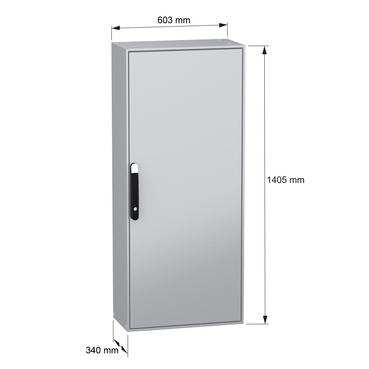

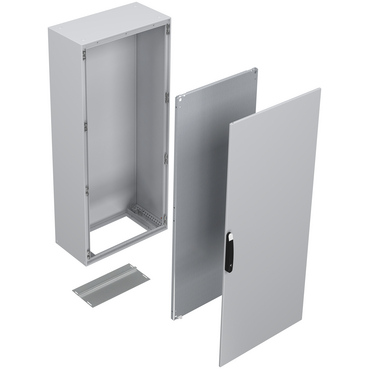

Spacial SM is a multi-purpose steel floor-standing enclosure with a nominal height, width and depth of 1400mm, 600mm and 300mm respectively It is designed for use in harsh environments, it can withstand high impact due to its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, one cable gland plate, four mounting plate brackets, one mounting plate, one plain door and a locking system with handle on the door The door can be opened up to 120° and it is reversible, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert The door and the mounting plate can be removed for maintenance purposes
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SM |
| Product or component type |
Compact enclosure |
| Application |
Multi-purpose |
| Installation accessory type |
Floor-standing |
| Device composition |
1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 mounting plate, 1 door |
| Removable parts |

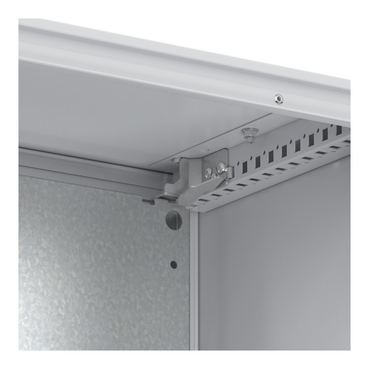

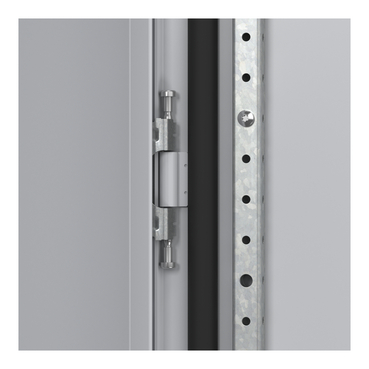

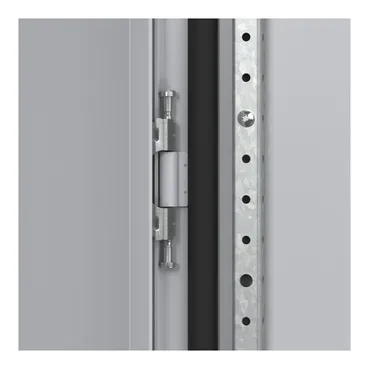

Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |
| Enclosure nominal height |
1400 mm |
| Enclosure nominal width |
600 mm |
| Enclosure nominal depth |
300 mm |
| Number of doors |
Front: 1 door(s) |
| Door opening side |
Reversible (120 °) |
| Door type |
Plain |
| Lock type |

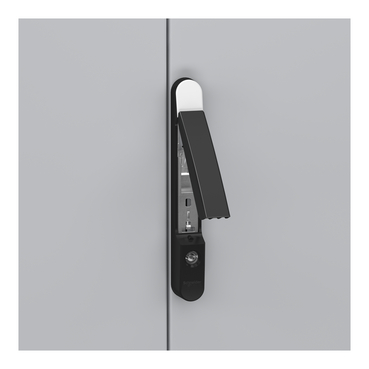

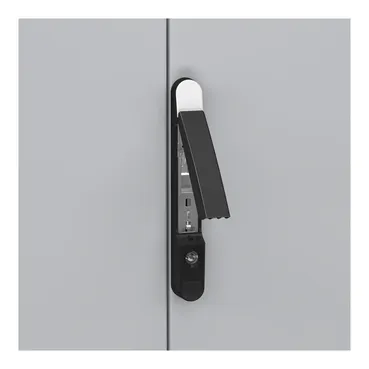

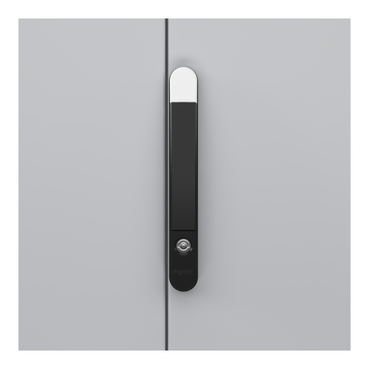

4 points lock, handle with 5 mm double bar insert |
| Body type |
Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description |
Plain |
| Type of gland plate |
Standard |
| Cable entry |
1 entry |
| Material |
Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |

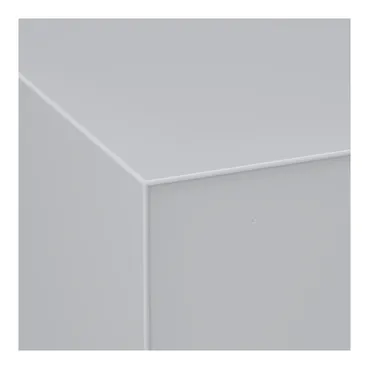

| Surface finish |
Epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation |
Front |
| Net weight |
70 kg |
| Standards |
IEC 62208 |
| Product certifications |
UL, BV, DNV |
| IK degree of protection |
IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
153.000 cm |
| Package 1 Width |
65.000 cm |
| Package 1 Length |
39.000 cm |
| Package 1 Weight |
67.500 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
153.000 cm |
| Package 2 Width |
65.000 cm |
| Package 2 Length |
78.000 cm |
| Package 2 Weight |
135.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
