Schneider Electric NSYSM1412402DP
Spacial SM steel compact floor-standing enclosure is a multi-purpose enclosure designed for use in harsh environments It has a nominal height, width and depth of 1400mm, 1200mm and 400mm respectively…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spacial SM steel compact floor-standing enclosure is a multi-purpose enclosure designed for use in harsh environments It has a nominal height, width and depth of 1400mm, 1200mm and 400mm respectively The enclosure is made of galvanised steel for the mounting plate, sheet steel for the body and door, and zamak for the hinge It is certified by UL, DNV and BV and has an IK10 rating (IEC62262) and an IP55 rating (IEC60529) The enclosure is grey (RAL7035) with an epoxy-polyester powder surface finish and the handle is black (RAL9005) The enclosure consists of a body, two cable gland plates, two plain doors, four mounting plate brackets, a blocking system on left door and a locking system with handle on the door The doors can be opened up to 120°, allowing easy access to the equipment inside
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |

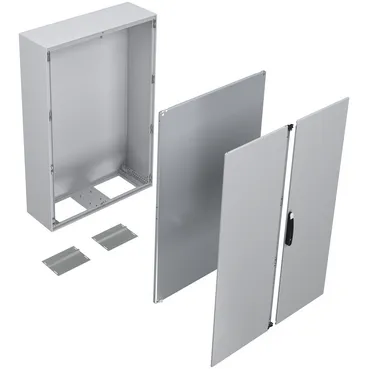

| Device composition | 1 body, 2 door, 2 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket, 1 mounting plate |
| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

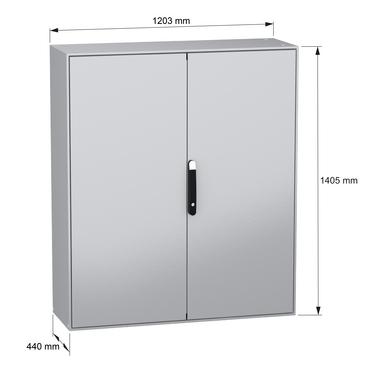

| Enclosure nominal height | 1400 mm |
| Enclosure nominal width | 1200 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 2 door(s) |

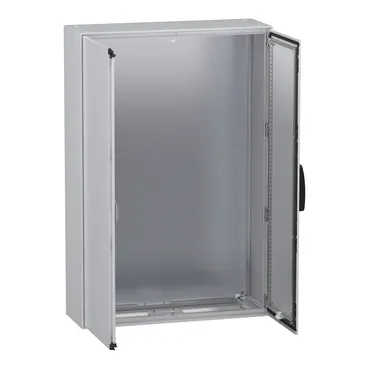

| Door opening side | Left (120 °), Right (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Cable entry | 1 entry |
| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 119 kg |
| Standards | IEC 62208 |
| Product certifications | UL, DNV, BV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 153.000 cm |
| Package 1 Width | 125.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 134.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 153.000 cm |
| Package 2 Width | 125.000 cm |
| Package 2 Length | 98.000 cm |
| Package 2 Weight | 268.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
