Schneider Electric NSYSM1410402DP
Spacial SM is a multi-purpose floor-standing steel enclosure designed for harsh environments, with an IK10 rating (IEC62262) and an IP55 rating (IEC60529) The enclosure has a nominal height, width and…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

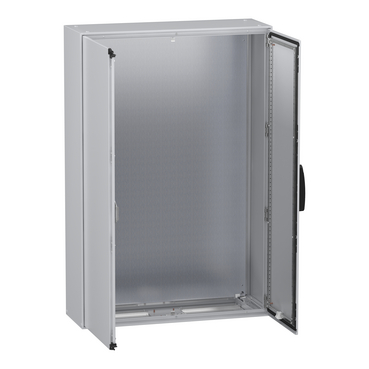

Spacial SM is a multi-purpose floor-standing steel enclosure designed for harsh environments, with an IK10 rating (IEC62262) and an IP55 rating (IEC60529) The enclosure has a nominal height, width and depth of 1400mm, 1000mm and 400mm respectively It is made of a single piece body with a welded rear panel and a front part forming a rigid frame with welded corners The enclosure is grey (RAL7035) with an epoxy-polyester powder surface finish and the handle is black (RAL9005) The enclosure consists of a body, two plain doors, one cable gland plate, a locking system with handle on the door, a blocking system on the left door, four mounting plate brackets and one mounting plate made of galvanized steel The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |

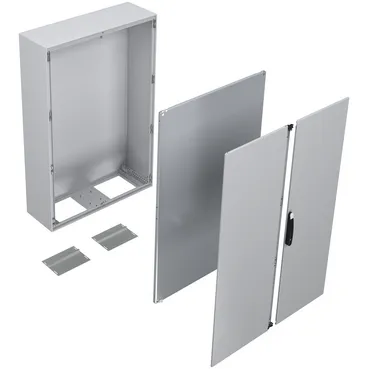

| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket, 1 mounting plate |
| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

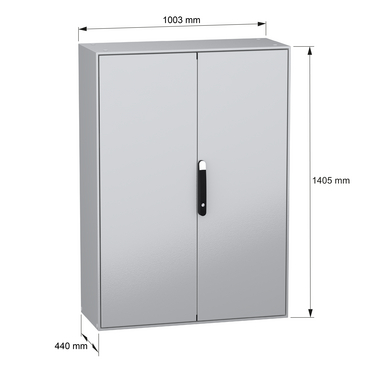

| Enclosure nominal height | 1400 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 2 door(s) |
| Door opening side | Left (120 °), Right (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Cable entry | 1 entry |

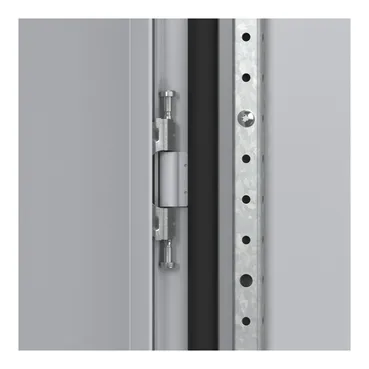

| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 104 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, BV, UL |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 153.000 cm |
| Package 1 Width | 105.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 110.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 153.000 cm |
| Package 2 Width | 105.000 cm |
| Package 2 Length | 98.000 cm |
| Package 2 Weight | 220.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
