Schneider Electric NSYSM1410402D
Spacial SM steel compact floor-standing enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width and depth of 1400mm, 1000mm and 400mm respectively The…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

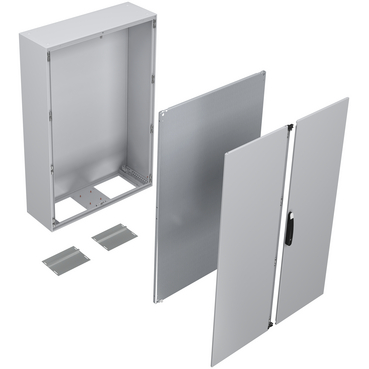

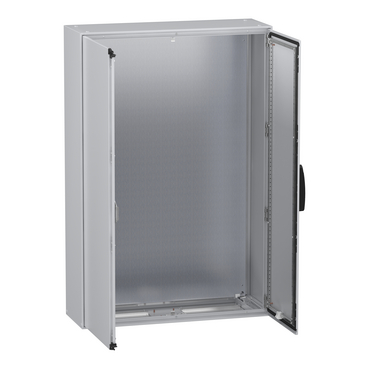

Spacial SM steel compact floor-standing enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width and depth of 1400mm, 1000mm and 400mm respectively The enclosure is made of sheet steel and the doors and hinge are made of zamak It is certified by DNV, UL and BV and has an IK10 rating (IEC62262) and an IP55 rating (IEC60529) The enclosure is grey (RAL7035) in color with an epoxy-polyester powder surface finish and the handle is black (RAL9005) It has a single-piece body with a welded rear panel and a front part forming a rigid frame with welded corners It consists of two plain doors, one cable gland plate, four mounting plate brackets, a blocking system on left door and a locking system with handle on the door
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket |
| Removable parts | Door by screws hinge, Mounting plate bracket by screws |

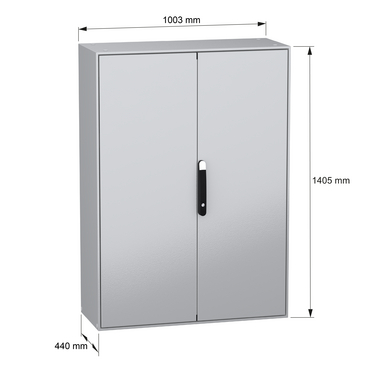

| Enclosure nominal height | 1400 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 2 door(s) |
| Door opening side | Left (120 °), Right (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Cable entry | 1 entry |
| Material | Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 78 kg |
| Standards | IEC 62208 |
| Product certifications | BV, DNV, UL |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 153.000 cm |
| Package 1 Width | 105.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 83.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 153.000 cm |
| Package 2 Width | 105.000 cm |
| Package 2 Length | 98.000 cm |
| Package 2 Weight | 166.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
