Schneider Electric NSYSM12830P
Spacial SM steel compact floor-standing enclosure for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high r…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

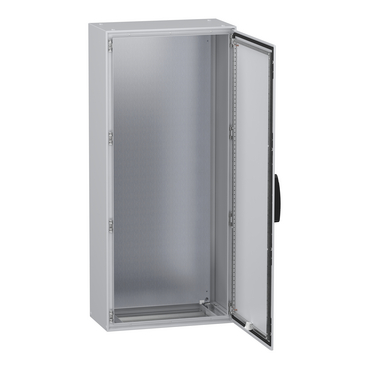

Spacial SM steel compact floor-standing enclosure for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure has a nominal height, width and depth of 1200mm, 800mm and 300mm respectively The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, one cable gland plate, four mounting plate brackets, one mounting plate, one plain door and a locking system with handle on the door The door can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |

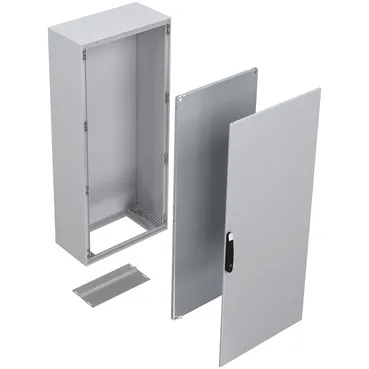

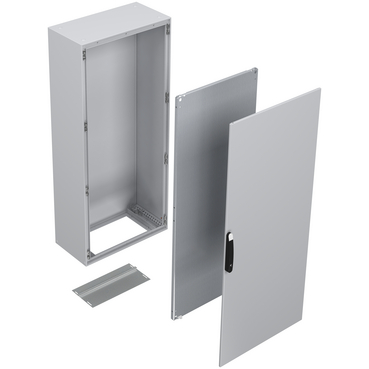

| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 mounting plate, 1 door |
| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

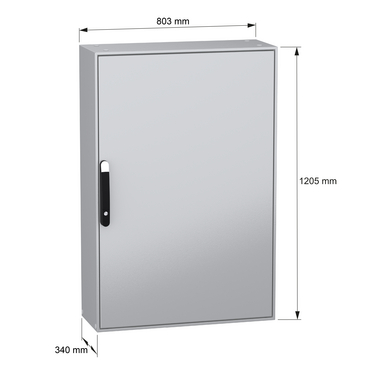

| Enclosure nominal height | 1200 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 300 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Cable entry | 1 entry |
| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 62.5 kg |
| Standards | IEC 62208 |
| Product certifications | UL, DNV, BV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 133.000 cm |
| Package 1 Width | 85.000 cm |
| Package 1 Length | 39.000 cm |
| Package 1 Weight | 74.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 133.000 cm |
| Package 2 Width | 85.000 cm |
| Package 2 Length | 78.000 cm |
| Package 2 Weight | 148.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
