Schneider Electric NSYSM1212402D
Spacial SM steel floor-standing enclosure is designed for multi-purpose applications It is constructed with a single-piece body and welded rear panel, as well as a front part forming a rigid frame wit…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

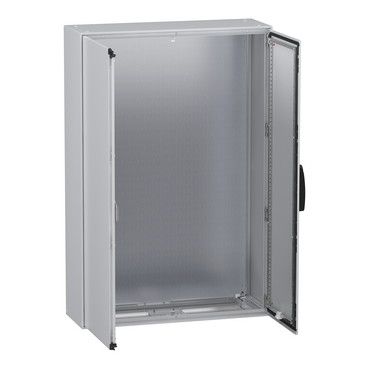

Spacial SM steel floor-standing enclosure is designed for multi-purpose applications It is constructed with a single-piece body and welded rear panel, as well as a front part forming a rigid frame with welded corners The enclosure has a nominal height, width and depth of 1200mm, 1200mm and 400mm respectively It is made of sheet steel and has a grey color (RAL 7035) with an epoxy-polyester powder surface finish, while the handle is made in black color (RAL 9005) It features two plain doors with a four-point lock and a handle with 5mm double-bar insert, and they can be opened up to 120° The enclosure also comes with two cable gland plates, one locking system with handle, one blocking system on left door, and four mounting plate brackets These parts are removable by screws hinge and mounting plate bracket, respectively
Specification
| Range |
PanelSeT |
|---|---|
| Product name |
PanelSeT SM |
| Product or component type |
Compact enclosure |
| Application |
Multi-purpose |
| Installation accessory type |
Floor-standing |
| Device composition |

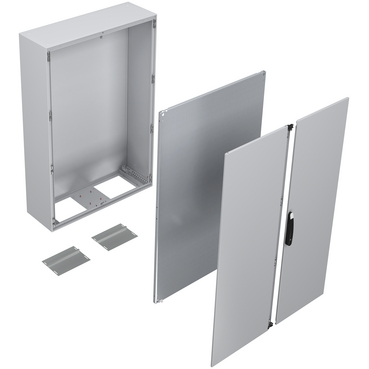

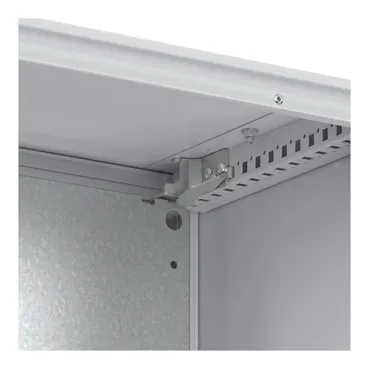

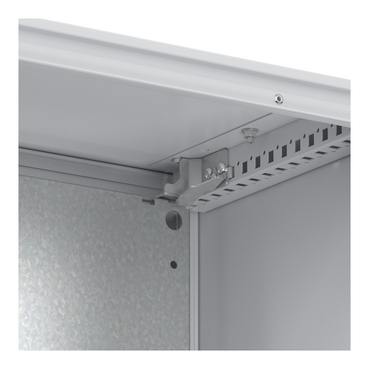

1 body, 2 door, 2 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket |
| Removable parts |

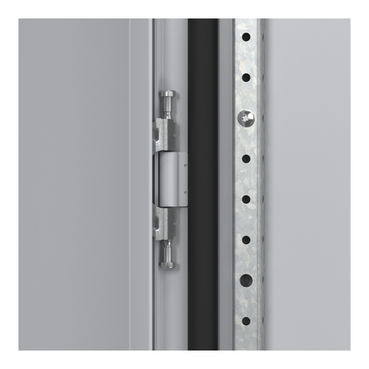

Door by screws hinge, Mounting plate bracket by screws |

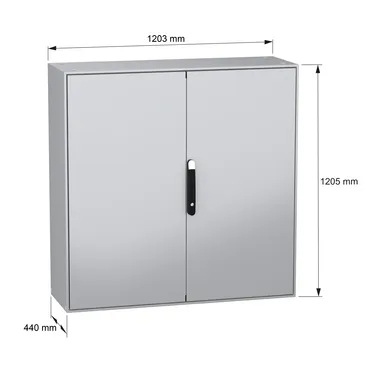

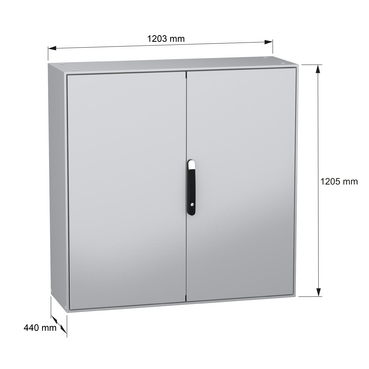

| Enclosure nominal height |
1200 mm |
| Enclosure nominal width |
1200 mm |
| Enclosure nominal depth |
400 mm |
| Number of doors |
Front: 2 door(s) |
| Door opening side |
Left (120 °), Right (120 °) |
| Door type |
Plain |
| Lock type |

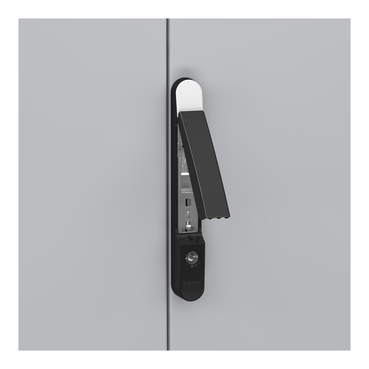

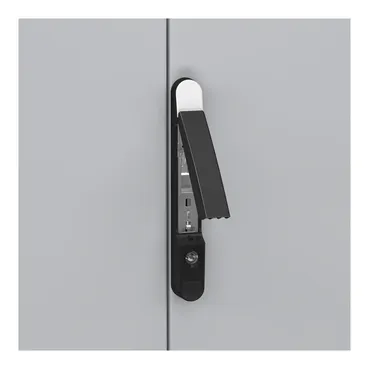

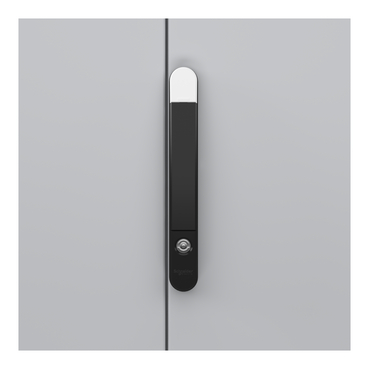

4 points lock, handle with 5 mm double bar insert |
| Body type |

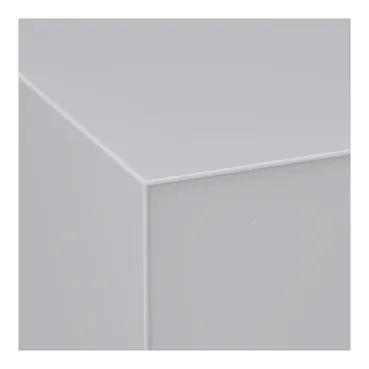

Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description |
Without mounting plate |
| Type of gland plate |
Standard |
| Cable entry |
1 entry |
| Material |
Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish |
Epoxy-polyester powder |
| Colour |
Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation |
Front |
| Net weight |
76 kg |
| Standards |
IEC 62208 |
| Product certifications |
DNV, BV, UL |
| IK degree of protection |
IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection |
IP55 conforming to IEC 60529 |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
133.000 cm |
| Package 1 Width |
125.000 cm |
| Package 1 Length |
49.000 cm |
| Package 1 Weight |
84.000 kg |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
2 |
| Package 2 Height |
133.000 cm |
| Package 2 Width |
125.000 cm |
| Package 2 Length |
98.000 cm |
| Package 2 Weight |
168.000 kg |
| Coverage |
Core product |
| Warranty |
18 months |
