Schneider Electric NSYSFTB24
Set of bars for lifting and transporting of Spacial SF, Spacial SFHD and Spacial SFM enclosures suites Fixed to the structure of the enclosure and in the axis of the uprights The bars are made from zi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

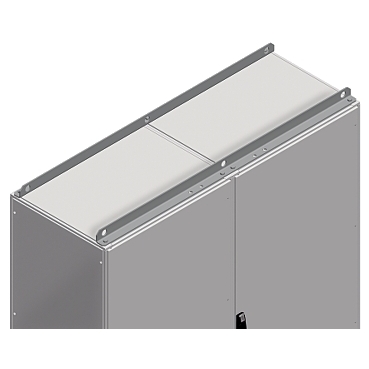

Set of bars for lifting and transporting of Spacial SF, Spacial SFHD and Spacial SFM enclosures suites Fixed to the structure of the enclosure and in the axis of the uprights The bars are made from zinc coated steel Maximum load is 3000kg This product is qualified as a green premium, with minimal use of hazardous substances
Specification
| Area | PanelSeT |
|---|---|
| Category | Lifting accessory |
| Product or component type | Lifting bar |
| Application | Multi-purpose |
| Mounting location | Enclosure top |
| Mounting support | Directly in the axis of the uprights |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SFHD, PanelSeT PanelSeT SFM |
| Device composition | 2 lifting bars, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By screws – screw type M12 |
| Permanent permissible load | 3000 kg |
| Length | Nominal: 2400 mm, Real: 2395 mm |
| Height | 60 mm |
| Depth | 60 mm |
| Diameter | 32 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.500 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 289.000 cm |
| Package 1 Weight | 40.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 95.000 cm |
| Package 2 Width | 12.000 cm |
| Package 2 Length | 289.000 cm |
| Package 2 Weight | 400.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
